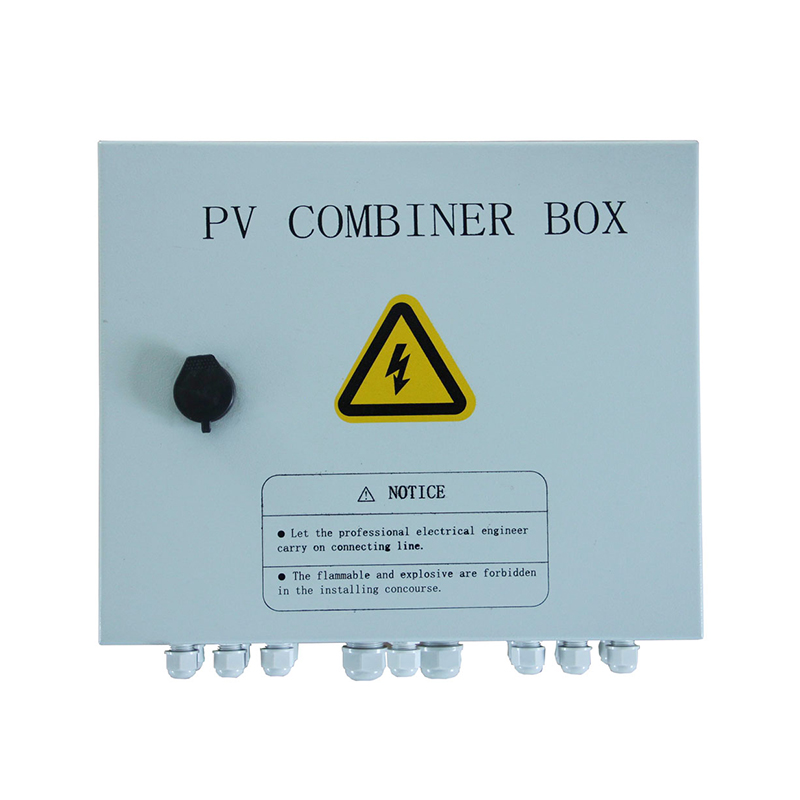

Sunway 5 IN 1 OUT PV Combiner Box
$66.05
$86.53
For PV power system, in order for convenient maintenance and reliability,we generally install DC combiner equipment between PV array and PV controller or inverter to reduce the connecting wires between them.Maximum open circuit voltage(VDC)500/1000PV array input path(N)6/16 (can be customized)Constant current of each PV array(A)15Anti counter protectionoptionalDC output circuit breakerincludeDedicated lighting protection for PVincludeDetection module(optional)Detection of each path current,busbar voltage,breaker status,lighting protection status,temperature of boxDimension(W*D*H)(mm)400*155*300/620*175*420Weight for reference(Kg)15~19Protection levelIP65Altitude(m)≤5000Ambient temperature(℃)-25℃~ 65℃Features of Solar Combiner Box*Meet the need of indoor and outdoor installation*Maximum access 16 paths of PV tandem,rated current of each path is 15A *Wide range of DC input voltage,maximum input voltage up to 500/1000VDC *Dedicated fuse for PV *Dedicated high-voltage lightning device for PV,its positive pole and negative pole have lightning protection function *Multiple machines can work in parallel *Easy and fast maintenance *Remote monitor(optional)0-i909ioiiiiivbnm Combiner box in grid-connected systemCombiner boxes in off-grid systems
