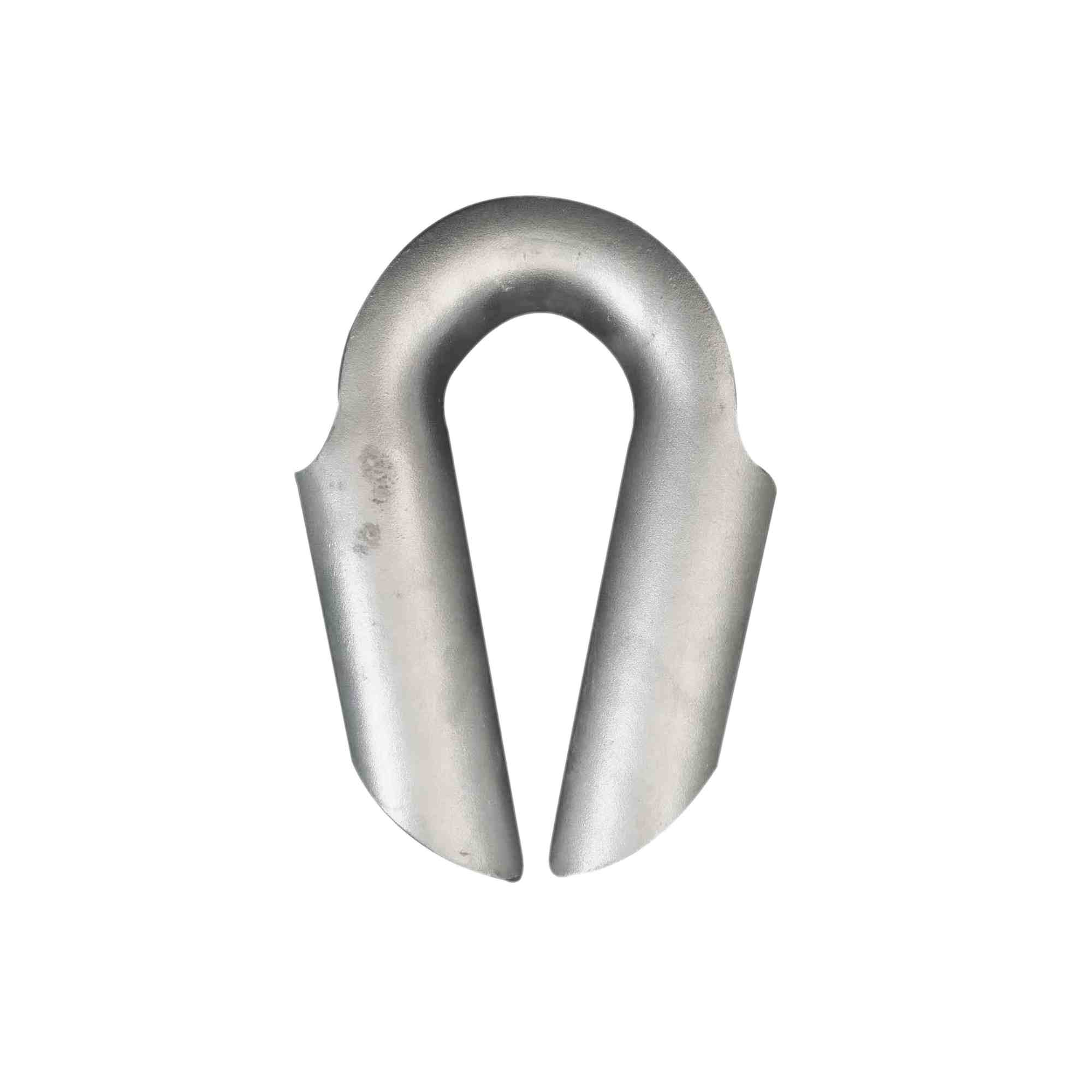

Tube Thimble | Tube Wire Rope Thimble Without Gusset Tube thimbles are essential components used to protect and reinforce wire rope loops, enhancing their durability and performance under load. Designed for heavy-duty applications, these thimbles are widely used in industries such as marine, construction, and heavy equipment rigging, where they provide added safety and longevity to wire rope assemblies. Tube Thimble Without Guest       Technical Specifications A(mm) B(mm) C(mm) D(mm) E(mm) Rope diameter(mm) Weight(kg) 10 90 23 16 6 8 0.18 12 90 23 20 8 10 0.24 15 105 27 25 10 12 0.41 17 115 27 25 10 14 0.39 19 120 32 29 12 16 0.6 22 140 35 32 15 18 0.75 25 180 45 37.6 16 22 1.4 28 180 45 42 16 24 1.75 30 195 47 44 18 26 2.2 35 215 60 49 21 32 2.6 40 240 65 54 23 35 2.95 45 260 70 60 27 38 3.85 50 280 75 64 27 44 4.4 55 298 85 69 29 50 5.1 60 300 88 75 30 54 5.9 65 312 88 79 31 56 6.6 70 332 90 84 31.5 60 7.1 75 350 94 90 32 65 8 88 450 130 108 45 72 20.1 94 500 150 114 50 80 24.8 107 550 190 127 52 92 30.4 112 600 200 140 70 96 50.4 120 650 220 152 76 104 68.8 127 660 220 159 78 110 70 140 750 240 180 90 115 110   Heavy duty stainless steel marine grade tube thimble. These thimbes can be used with stainless steel wire rope and also none steel ropes. The tubular design makes sure the thimble is always captive and avoids loss. Easy To Use. Let the wire rope pass through the U groove and then clamp it.   Key Features of Tube Thimble Heavy-Duty Construction: Engineered for demanding environments and high-load applications. Corrosion Resistance: Available in galvanized steel or stainless steel to withstand harsh environments. Enhanced Rope Protection: Prevents wear, fraying, and deformation of wire ropes. Range of Sizes: Suitable for various wire rope diameters. Smooth Finish: Reduces abrasion on wire ropes, extending lifespan.   Applications Marine & Offshore: Ideal for mooring and towing applications in marine settings. Construction & Infrastructure: Used in heavy lifting, hoisting, and securing applications. Industrial Rigging: Perfect for securing loads and providing reinforced connections in rigging tasks. Forestry & Agriculture: Suitable for reinforcing wire rope connections in agricultural and forestry machinery. Mining & Excavation: Essential for wire rope protection in rugged, heavy-duty mining applications. How to Use: Step 1: Select the appropriate tube thimble size based on the diameter of your wire rope. Step 2: Insert the wire rope into the tube thimble, ensuring a secure and snug fit. Step 3: Secure with appropriate wire rope fittings (clips or swage sleeves) to lock the rope in place. Step 4: Inspect the setup to confirm proper alignment and secure load distribution.   Benefits of Choosing Tube Thimbles Increased Safety: Provides secure reinforcement for wire rope loops, minimizing risks of fraying. Extended Rope Lifespan: Reduces abrasion and wear on wire ropes, resulting in cost savings. Versatility: Applicable across various heavy-duty industries, offering flexibility in usage. Cost-Efficiency: Enhances wire rope longevity, minimizing replacement frequency.     Ensure the durability and safety of your rigging setup with our high-quality tube thimbles. Kailipu specializes in the production of various rigging and wire rope fittings. Contact us today for bulk orders and competitive pricing on industrial-grade tube thimbles. Contact our team at [email protected], Kailipu will work with you to make better Rigging, Lifting, Material handling products.   Related Links: Wire Rope Clips Wire Rope Ferrule Wire Rope Thimble
