Mining Compact Chain High Strength Mining Flat Chains

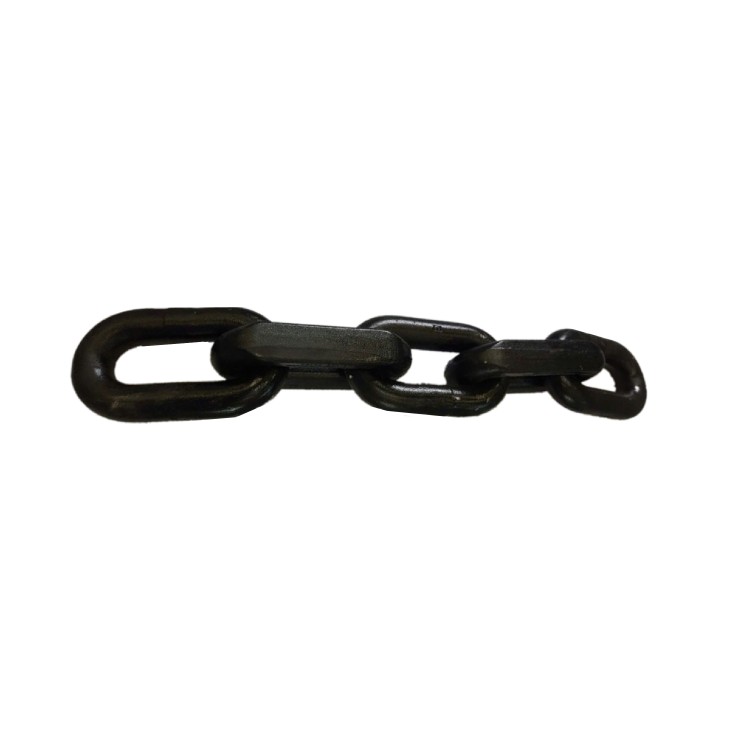

High Tension Mining Compact Chain The mining compact chain is a mining chain that alternately consists of welded circular rings and forged flat rings. It is an important equipment in the mining industry. It is mainly used to transport coal and other materials. Compared with other chains, mining compact chains have higher strength and wear resistance, so they are widely used in the mining field.   DIMENSIONS Dimensions Chain specifications(mm) diameter(mm) width c max mm Pitch p(mm) inner width(mm) Maximum outer width b1(mm) Maximum outer width b2(mm) unit weight (kg/m) 22*86 22±0.7 26 86±0.9 26 77 60 8.9 26*92 26±0.8 27 92±0.9 30 86 74 13.7 30*108 39±0.9 33 108±1.0 34 98 86 18 34*126 34±1.0 37 126±1.2 38 109 97 22.7 38*126 38±1.1 42 126±1.4 42 121 110 29.4 38*137 38±1.1 42 137±1.4 42 121 110 28.5 38*146 38±1.1 42 146±1.4 42 121 110 28.4 42*146 42±1.3 46 146±1.5 46 135 115 37 42*152 42±1.3 46 152±1.5 46 135 127 35 48*152 48±1.4 56 152±1.5 62 53 162 127 46.8   Dimensions Size(mm) d x p Test load(KN) Elongation under test load(Max,%) Breaking load(Min,KN) Total elongation at break(Min,%) C D C D C D C D 22*86 490 610 610 760 26*92 680 850 1.6 1.9 850 1060 12 12 30*108 900 1130 1.6 1.9 1130 1410 12 12 34*126 1160 1450 1.6 1.9 1450 1810 12 12 38*126 1450 1810 1.6 1.9 1810 2270 12 12 38*137 1450 1810 1.6 1.9 1810 2270 12 12 38*146 1450 1810 1.6 1.9 1810 2270 12 12 42*146 1770 2220 1.6 1.9 2220 2270 12 12 42*152 1770 2220 1.6 1.9 2220 2760 12 12 48*152 2300 2900 1.6 1.9 2890 3610 12 12   Key Features Of Features of Mining Compact Chain 1. First of all, the materials of mining compact chains have high strength and wear resistance. It is made of high-quality alloy steel and can withstand high-strength tensile and impact. At the same time, the surface of the mining compact chain has been specially treated to make it have higher hardness and wear resistance, and can be used in harsh environments for a long time without wear and breakage. This is an advantage that other chains cannot match. 2. Secondly, the mining compact chain has a compact structure, which can effectively increase transmission efficiency. Compared with ordinary chains, it is not only stronger, but also has smaller gaps between links, which can better prevent the chain from falling and getting stuck. This structure can effectively reduce friction and energy loss and increase transmission efficiency. 3. The compact chain structure is also more stable and can maintain normal operation under high-speed movement and heavy-load conditions. Mining compact chains are easy and fast to use and have low maintenance costs. It not only has good durability, but also has a long service life and can run for a long time without frequent replacement. 4. Cleaning and maintenance are easier thanks to its compact structure and finish. This can effectively reduce the maintenance costs and production costs of mining enterprises.   Reliable Mining Chain Supplier Kailipu is one of the most professional rigging equipment supplier and exporter in China, specialized in all kinds of rigging hardware, welded chain, wire rope, lifting webbing sling, pulley, ect. High Tension Mining Compact Chain is one of the common mining chain. Kailipu produces and exports all kinds of round link mining chains. If you need a professional mining chain supplier, let Kailipu be your first choice. Kailipu will work with you to make better rigging, lifting and material handling products. For any more help, e-mail our specialists at [email protected] for assistance.
