Twin Outboard Chain Shackle, Round Link Single Bolt Shackle

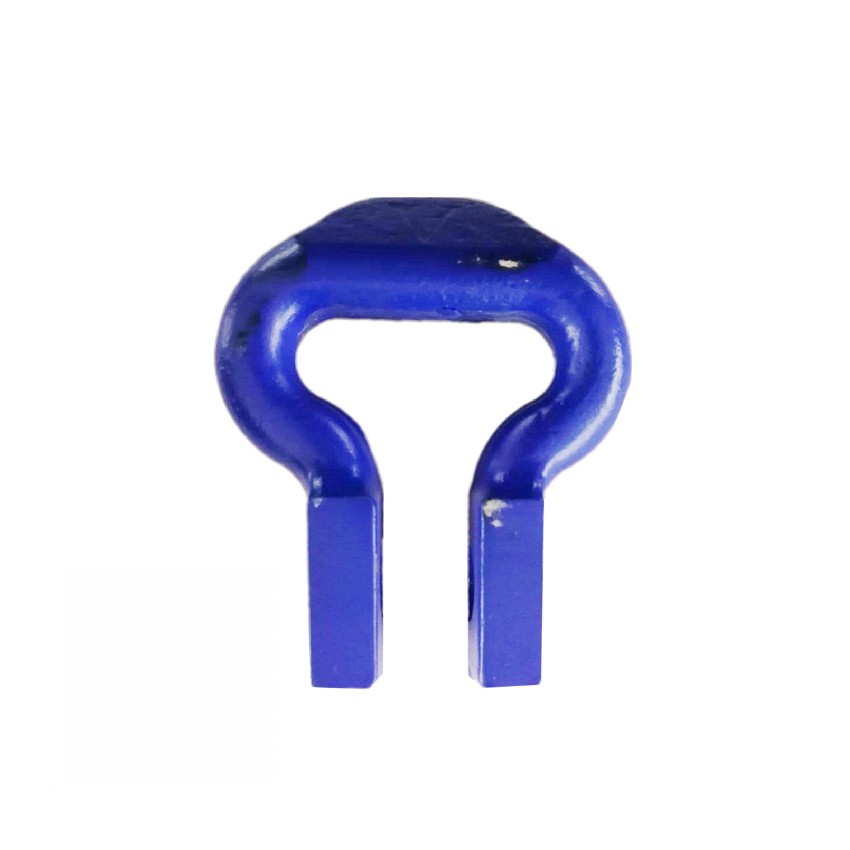

Twin Outboard Chain Shackle-Round Link Single Bolt Shackle / Padless Connector DIN 22253 CONVEYOR CHAIN LOCK   Twin Outboard Chain Shackle is a configuration commonly used in rigging and lifting applications where stability and balance are critical. In this system, two chains run parallel to each other, positioned on the outer edges of the load being lifted. The chains are connected to the lifting device, such as a hoist or crane hook, and are used to evenly distribute the weight of the load.       SPECIFICATIONS Size b p Test load (KN) Grade B MBS (KN) Grade C mm limit deviation mm limit deviation ф10×40 12 士0.5 40 士0.3 80 100 90 120 ф14×50 16 50 士0.5 136 180 170 225 ф18×64 20 64 士0.6 232 300 290 370 ф22×86 23 士1 86 士1 __ 415 __ 550 ф26×92 27 92 __ 575 __ 765 ф30×108 31 士1 108 士1 __ 706 __ 990     Application Of Twin Outboard Chain Shackle The open link is specially designed for connecting double-sided chains. Its appearance and size comply with the standard requirements of MT/T71-1997. During the manufacturing process, high-alloy steel rich in Cr, Ni, Mo and other alloying elements and multiple heat treatment processes are selected. To ensure cooperation with the sprocket and safe operation, thus ensuring excellent mechanical properties and fatigue life. It is a connecting ring suitable for connecting double scraper conveyors and transfer machines under coal mines to high-strength mine circular chain chains and scrapers. Reliable Mining Chain and Connector Manufacturer Kailipu specialized in all kinds of rigging hardware, welded chain, wire rope, lifting webbing sling, pulley, ect. Twin outboard chain shackle is one of the common connector for twin outboard chain system. Kailipu produces and exports all kinds of mining chains and connectors. If you need a professional mine chain and sprockets supplier, let Kailipu be your first choice. Kailipu will work with you to make better rigging, lifting and material handling products. For any more help, e-mail our specialists at [email protected] for assistance.
