TENDA AX3000 2.4-5Ghz Dual Band Wi-Fi AP

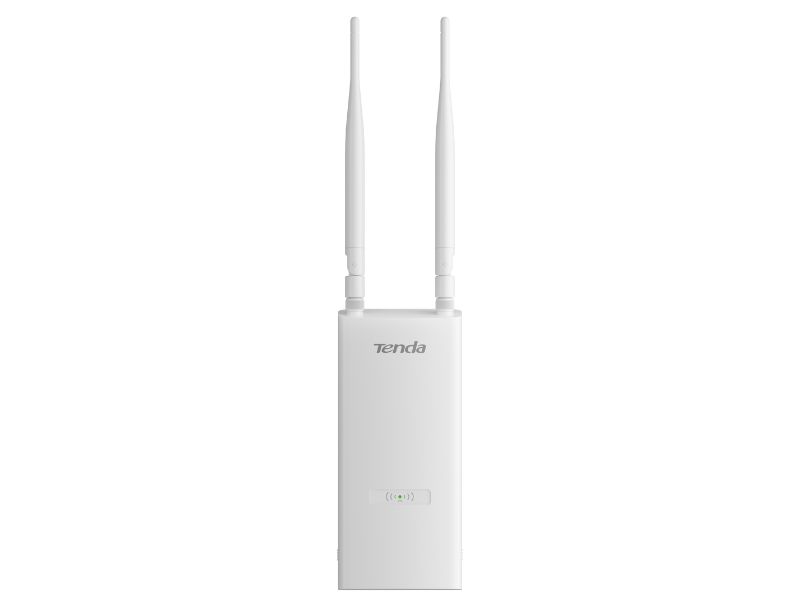

OAP3000 is a Wi-Fi 6 3000M high-power omnidirectional dual-band wireless access point (AP) that supports 802.11a/b/g/n/ac/ax and is launched by Tenda for scenes such as villages, villas, parks, scenic spots, and squares. The product can work in both 2.4GHz and 5GHz bands, providing 2.4GHz 574Mbps, 5GHz 2402Mbps, and the whole machine has an access rate of up to 2976Mbps. The external omnidirectional high-gain antenna meets the coverage effect. Product Information Model OAP3000 Category Pole Mounting and Wall Mounting Dimension 194.7* 83* 42.1 mm Hardware Specifications Interface 1*Gigabit Ethernet Port Button 1*Reset LED indicator 1*SYS Maximum Power Consumption 256 Power Supply 802.3at PoE`a3`ac48-51V Passive PoE Max. Number of Clients 16.8W Recommended Clients 80 Antenna Gain 2.4GHz: 2*4dBi 5GHz: 2*5 dBi 2.4GHz maximum power CE: <20 dBm ( EIRP) FCC: <28 dBm 5GHz maximum power CE: <23 dBm( EIRP) FCC: <26 dBm Reception Sensitivity 11b:-99dBm`a3`a81Mbps`a3`a9 11a:-96dBm(6Mbps),-78dBm(54Mbps) 11g:-79dBm(54Mbps) 11n:20MHz:-96dBm(mcs0),-77dBm(mcs7) 11n:40MHz:-74dBm(mcs7) 11ax:20MHz:-67dBm(mcs11) 11ax:40MHz:-94dBm(mcs0),-64dBm(mcs11) 11ax:80MHz:-90dBm(mcs0),-59dBm(mcs11) 11ax:160MHz:-56dBm(mcs11) Wireless Specifications Frequency Range 2412MHz-2472MHz,5150MHz- 5350MHz, 5470MHz-5725MHz, 5725MHz- 5850MHz Standard&Protocol IEEE 802.11b/g/n/a/ac/ax Maximum wireless speed 2.4GHz: 574Mbps 5GHz: 2402Mbps Bandwidth 2.4GHz:20MHz/40MHz 5GHz:20MHz/40MHz/80MHz/160MHz Software Specifications Operating Mode AP/Client AP Max. No. of SSID 2.4GHz: 8 5GHz: 4 Hide SSID Supported OFDMA Supported Beamforming Supported Fast roaming`a3`a8802.11k/v/r`a3`a9 Supported WEP Supported WPA-PSK Supported WPA2-PSK Supported WPA Supported WPA2 Supported WPA3-SAE Supported Access control Supported Adjustable power transmit Supported Automatic channel Supported AP isolation Supported Guest network Supported Connected clients control Supported RSSI Threshold Supported Weak signal terminal elimination Supported Prioritize 5 GHz Supported VLAN tagging for SSID Supported LED control Supported MU-MIMO Supported Diagnostics tool Supported Reboot at specified interval Supported Scheduled reboot Supported Device management Local Web Management Tenda CloudFi Cloud Management Tenda CloudFi APP Management Tenda Gateway Management`a3`a8G300-FG0-8G-PoEG0-5G-PoEG1`a3`a9 System logs Supported Firmware upgrade Supported Reboot Supported Reset Supported Backup configuration Supported Restore configuration Supported Others Default address 10.16.16.169 192.168.0.254 Operation Temperature -30℃ ~ 60℃ Operating Humidity 10%~90% non-condensing Storage Temperature -30℃ ~ 70℃ Storage Humidity 5%~90% non-condensing
