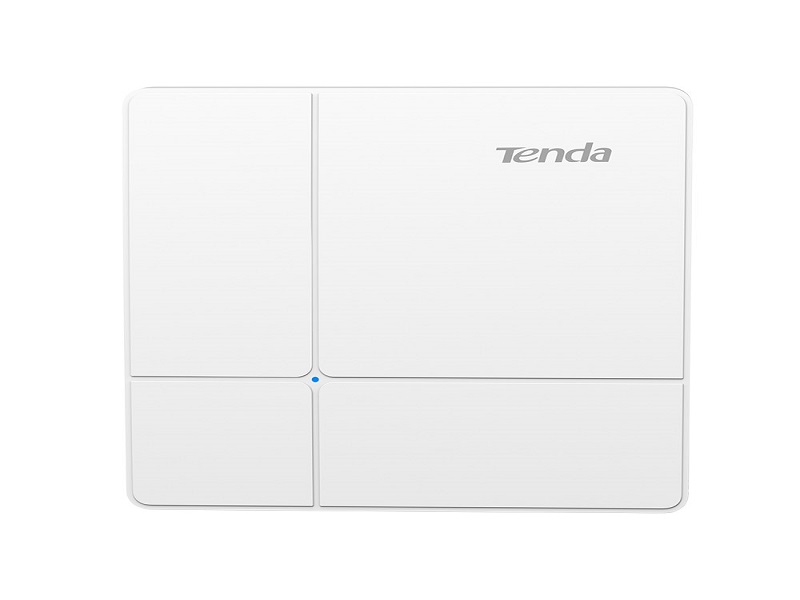

i24 is a gigabit dual-band ceiling access point that compliant with IEEE 802.11ac Wave 2, and offers a concurrent data rate up to 1167 Mbps. Powered by MU-MIMO technology, letting you enjoy better experience. And the built-in omni-directional antennas broaden the wireless coverage of a single AP. In addition, you are allowed to adjust its transmit power as required using the web UI, and use an IEEE 802.3at-compliant PoE sourcing equipment to power on it, achieving long-distance power supply without tampering your existing grid network. You are also allowed to use Tenda access controllers (AC) to configure and manage multiple i24 in a centralized manner. Model i24 Category Ceiling Dimension 178 `d7 178 `d7 38mm Interface One 10/100/1000 Mbps Ethernet Port (PoE) Button 1 x RESET LED Indicator 1 x SYS Maximum Power Consumption 13.5W Power Supply 802.3af/at & DC: 12V 1A Max. Number of Clients 256 Recommended Clients 40 Antenna 2.4GHz: 2 x 4dBi 5GHz: 2 x 4dBi 2.4GHz maximum power 23 /-1.5dBm 5GHz maximum power 23 /-1.5dBm Reception Sensitivity 802.11b -93 dBm 2.4 GHz 802.11n (MCS7) -73dBm 5 GHz 802.11a -93 dBm 5 GHz 802.11n (MCS7) -74 dBm Frequency Range 2.4GHz&5GHz Standard&Protocol 802.11a/b/g/n/ac(wave2) Maximum wireless speed 2.4GHz: 300Mbps 5GHz: 867Mbps Bandwidth 20MHz/40MHz/80MHz Operating Mode AP/Client AP Max. No. of SSID 2.4GHz: 8 5GHz: 4 Hide SSID Support OFDMA Support Beamforming Support Fast roaming`a3`a8802.11k/v/r`a3`a9 Support WEP Support WPA-PSK Support WPA2-PSK Support WPA Support WPA2 Support WPA3-ASE Support Access control Support Adjustable power transmit Support Automatic channel Support AP isolation Support Connected clients control Support RSSI Threshold Support Weak signal terminal elimination Support Prioritize 5 GHz Support VLAN tagging for SSID Support LED control Support MU-MIMO Support Diagnostics tool Support Reboot at specified interval Support Schedule Reboot Support Device management M3 or Tenda Router with AP Controller feature System Logs Support Firmware upgrade Support Reboot Support Reset Support Backup configuration Support Restore configuration Support Default login IP 192.168.0.254 Default Login Username admin Default Login Password admin Operation Temperature -10℃ ~ 40℃ Operating humidity 10%~90% non-condensing Storage temperature -30℃ ~ 70℃ Storage humidity 10%~90% non-condensing
