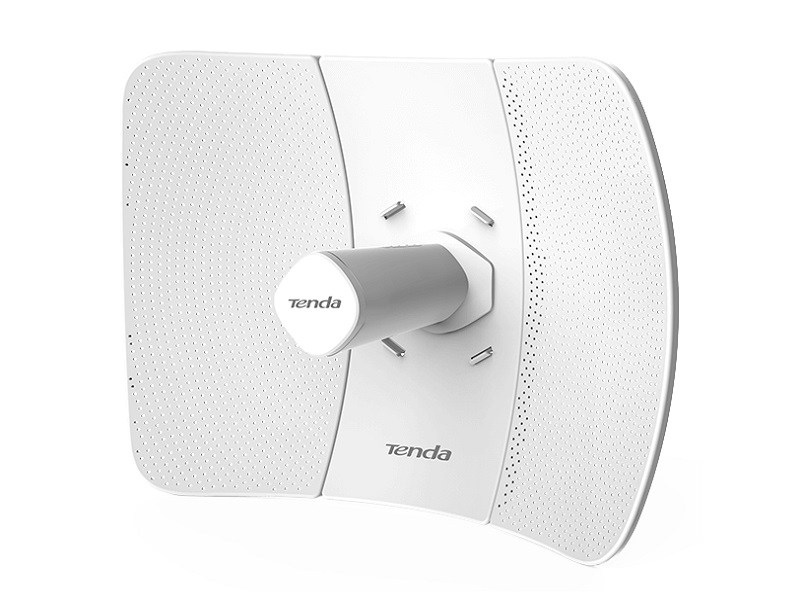

O9 5GHz 11ac 23dBi gigabit outdoor CPE is designed to PtP and PtMP solutions for privated ISP wireless connectivity, CCTV surveillance and data transmission. It features with 23dBi directional dual polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 25km. Adopt of auto-bridging technology, two CPE can connect to each other automatically to make it easy to setup. Model O9 Dimension 391.5*280*223mm Deployment Pole Mount Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance Frequency Range 5GHz Compliant Standards IEEE 802.11a/n/ac Private TDMA Protocol TD-MAX Maximum Wireless Rate 867Mbps Interfaces 1*10/100/1000Mbps Ethernet Port Antenna Polarization Dual Polarization Antennas Gain 23dBi Antenna Beamwidth Horizontal: 10`b0 Vertical: 10`b0 GND / Reset Button 1*Reset Button Power Consumption 7.5W Waterproof Level IP65 LED Indicator PoE/LAN,LED1,LED2,LED3 Power Method 24V0.5A Passive PoE Lightning Protection 6000V Passive PoE Passive power over ethenet via PoE/LAN ( 4,5pins -7,8pins ) Voltage range: 21-25V DC Reception Sensitivity 11a 6Mbps -96dBm`b11.5dBm 11n MCS7 HT20 -72dBm`b11.5dBm 11ac MCS9 HT80 -65dBm`b11.5dBm TDMA Support Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router Enable/Disable Wireless Radio Support SSID Hidden Support Wireless Client isolation Support SSID Isolation Support Channel Bandwidth 20/40/80MHz Channel Shift Support Wireless Access Control Support Weak Signal Client Limitation Support Transmission Power Adjustable power by 1dBm WMM Capable Support APSD Capable Support Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 Transparent Bridge Support VLAN Tagging for SSID Support DHCP Server Support VPN Pass-Through PPTP,L2TP Remote Web access Support Schedule Reboot Support Page Timeout Support Ping Watchdog Support Dyndns noip, dyndns.org Network Diagnoses Ping, Traceroute, Signal Scan Time and Date Setting Support Firmware upgrade Support Backup/Restore Configuration Support Username Managerment Support System Logs Support Managed By Controller PC Software CPE Assistant Package Contents 1*5GHz 11ac 23dBi Gigabit Outdoor CPE O9 1*PoE Power Adapter 1*Power cord 1*Quick Installation Guide Operation Temperature -30℃ ~ 60℃ Storage Temperature -40℃ ~ 70℃ Operating Humidity 10%~90% non-condensing Storage Humidity 10%~90% non-condensing Default login IP 192.168.2.1 Default Login Username admin Default Login Password admin Certification FCC/CE/RoHS
