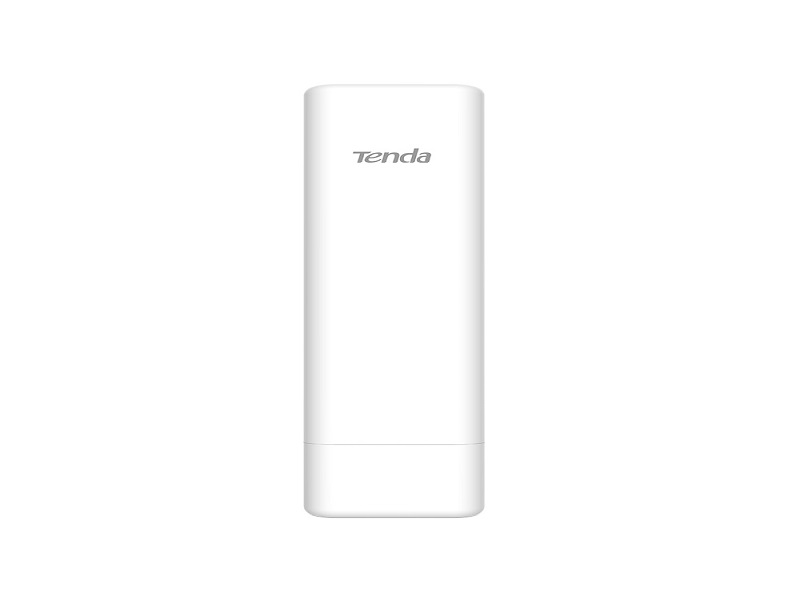

O6 5GHz Outdoor CPE is designed to PtP&P2MP solutions for video surveillance transmission and wireless broadband access. Adopts of 11ac wireless technology and gigabit ethernet Port design, the maximum throughput for ptp connection can be up to 450Mbps. It features with 16dBi dual polarization directional antenna to provide an efficient way to pick up and maintain a stable long range connection. Model O6 Dimension 270*94.86*67.5mm Deployment Pole/Wall Mount Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance Frequency Range 5GHz Compliant Standards IEEE 802.11b/a/n/ac Private TDMA Protocol TD-MAX Maximum Wireless Rate 867Mbps Interfaces 1*10/100/1000Mbps Ethernet Port Antenna Polarization Dual Polarization Antennas Gain 16dBi Antenna Beamwidth Horizontal: 30`b0 Vertical: 30`b0 GND 1*GND Reset Button 1*Reset Button Power Consumption 6.5W Waterproof Level IP65 LED Indicator PoE/LAN, LED1, LED2, LED3 Power Method PoE 802.3af/at 24V0.5A Passive PoE 12V 1A DC Lightning Protection 6000V PoE 802.3af/at Power over ethernet up to 100 meters Passive PoE Passive power over ethernet via PoE/LAN ( 4,5pins-7,8pins ) up to 60 meters Voltage range: 21-25V DC Reception Sensitivity 11a 6Mbps -91dBm`b11.5dBm 11n MCS7 HT20 -72dBm`b11.5dBm 11ac MCS9 -62dBm`b11.5dBm TDMA Support Operating mode AP/Station/WISP/Repeater/Router Enable/Disable Wireless Radio Support SSID Hidden Support Wireless Client isolation Support SSID Isolation Support Channel Bandwidth 20/40/80MHz Channel Shift Support Client Limitation For SSID Support Wireless Access Control Support Weak Signal Client Limitation Support Transmission Power Adjustable power by 1dBm WMM Capable Support APSD Capable Support Wireless Security 64/128 WEP, WPA-PSK, WPA2-PSK, WPA Transparent Bridge Support VLAN Tagging for SSID Support DHCP Server Support VPN Pass-Through Support Remote Web access Support Schedule Reboot Support Page Timeout Support Ping Watchdog Support Dyndns noip, dyndns.org Network Diagnoses Ping, Traceroute, Signal Scan Time and Date Setting Support Firmware upgrade Support Backup/Restore Configuration Support Username Managerment Support System Logs Support Managed By Controller PC Software CPE Assistant Package Contents 1*5GHz 16dBi 11AC Gigabit Outdoor CPE 1*PoE Power Adapter 1*Quick Installation Guide Operation Temperature -30℃ ~ 60℃ Storage Temperature -40℃ ~ 70℃ Operating Humidity 10%~90% non-condensing Storage Humidity 10%~90% non-condensing Default login IP 192.168.2.1 Default Login Username admin Default Login Password admin Certification FCC/CE/RoHS
