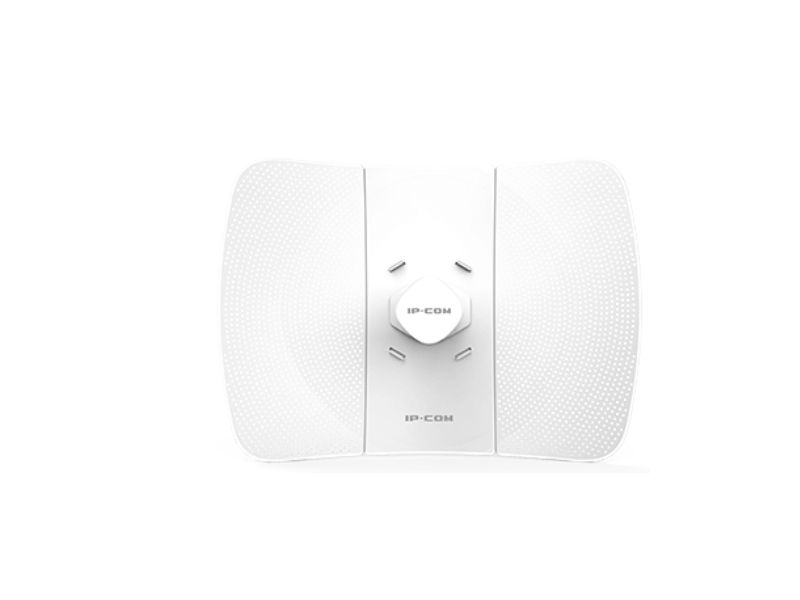

5GHz 23dBi ipMax AC Gigabit Outdoor CPE 5GHz 11AC 867Mbps 23dbi directional antenna One Gigabit Ethernet Port IP65 waterproof enclosure 6000V Lightning Protection AP,Station,WISP operating mode supported Product Information Model iLBE-5AC Dimensions 391.5*280*223mm Deployment Pole Mount Application Scenarios PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance Hardware Features Frequency Range 5GHz Compliant Standards IEEE 802.11a/n/ac Private TDMA Protocol ipMAX Maximum Wireless Rate 867Mbps Interfaces 1*10/100/1000Mbps Ethernet Port Antennas Gain 23dBi Antenna Beamwidth Horizontal: 10`b0 Vertical: 10`b0 Reset Button 1 Power Consumption 7.5W Waterproof Level IP65 LED indicator PoE/LAN,LED1,LED2,LED3 Power Method 24V0.5A Passive PoE Lightning Protection 6000V Passive PoE Passive power over ethenet via PoE/LAN ( 4,5pins; -7,8pins ) Voltage range: 21-25V DC Receiver sensitivity 11a 6Mbps -96dBm`b11.5dBm 11n MCS7 HT20 -72dBm`b11.5dBm 11ac MCS9 HT80 -65dBm`b11.5dBm Software Features Operating mode AP/Station/WISP/P2MP/WDS Repeater/Router Enable/Disable Wireless Radio Support SSID Hidden Support Wireless Client isolation Support SSID Isolation Support Channel Bandwidth 20/40/80MHz Client Limitation For SSID Support Wireless Access Control Support Weak Signal Client Limitation Support Transmission Power Adjustable power by 1dBm WMM Capable Support APSD Capable Support Wireless Security 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 Transparent Bridge Support VLAN Tagging for SSID Support DHCP Server Support VPN Pass-Through PPTP,L2TP Remote Web access Support Schedule Reboot Support Page Timeout Support Ping Watchdog Support Dyndns noip, dyndns.org Network Diagnoses Ping, Traceroute, Signal Scan Time&Date Setting Support Firmware upgrade Support Backup/Restore Configuration Support Username Managerment Support System Log Support Managed By Controller PC Software — CPE Controller Others Package Contents 1*5GHz 23dBi ipMax AC Gigabit Outdoor CPE iLBE-5ACV1.0 1*PoE Power Adapter 1*Quick Installation Guide Operating Temperature -30℃ ~ 60℃ Storage Temperature -40℃ ~ 70℃ Operating Humidity 10%~90% non-condensing Storage Humidity 10%~90% non-condensing Default login IP 192.168.2.1 Default Login Username admin Default Login Password admin Certifications FCC/CE/RoHS
