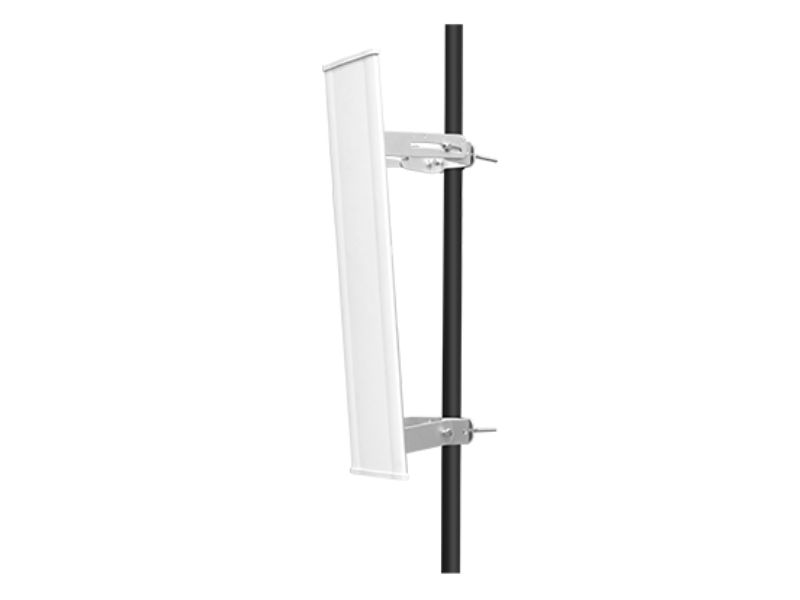

ANT19-5G120 5GHz 19dBi Dual Polarity Sector Antenna Dual polarization design Two RP-SMA Radio Connector Operating frequency at 5100~5850MHz Mount pole Diameter 30-70mm ANT19-5G120 ANT19-5G120 5GHz 19dBi Dual Polarity Sector Antenna is designed for PtMP solutions for private ISP wireless connectivity and CCTV surveillance. Pair with IP-COM basestation BS6, it delivers 120`b0 coverage for end users and the transmission range can be up to 5km. Powerful Signal for Coverage Area ANT19-5G120 provide 120`b0 coverage for end users and 2×2 MIMO performance for P2MP applications. Plug and Play Integration ANT19-5G120 has a built-in basestation mount bracket, so no tools are needed to install the BaseStation BS6. Industrial-Strength Construction ANT19-5G120 are designed with robust mechanical design for outdoor application use. Product InformationModelANT19-5G120DeploymentPole MountApplication ScenariosPair with BS6 to deliver PtMP wireless connection for Privated ISP access or CCTV SurveillanceEletrical ParametersFrequency Range5100~5850MHzGain19dBiPolarizationHorizontal and VerticalHorizontal Beamwidth (6dB)120`b0Vertical Beamwidth (6dB)120`b0Elevation Beamwidth4`b0Front-To-Back Ratio>25dBIsolation>25dBVSWR<2Maximum Power20WImpedance50`d9Mechanical ParametersDimensions785*150*20mmMountingPole (D30-70mm)Mechanical tilt capability4`b0Connector Type2*RP-SMAOperating Temperature-55`b0C to 70`b0COperating Humidity10%~90% non-condensing
