$25.32
$32.16

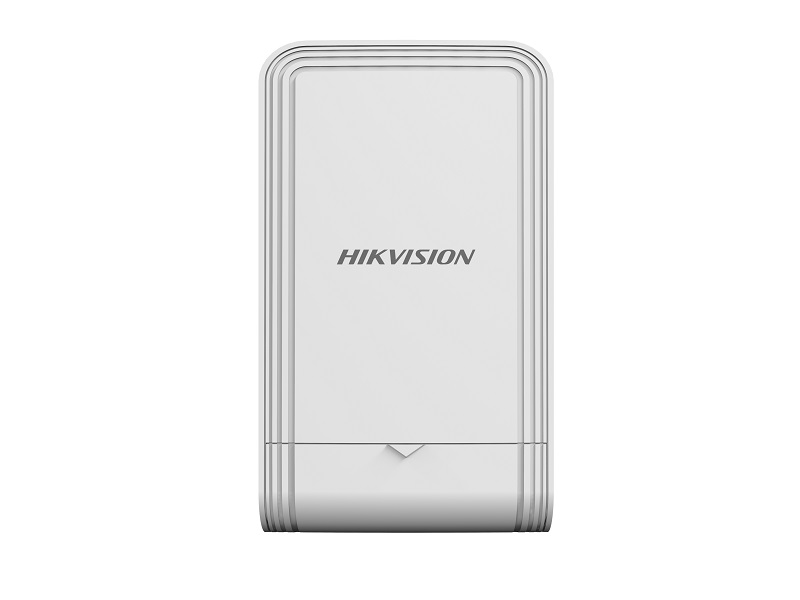

5Ghz 867Mbps 15km Outdoor Wireless CPE All gigabit LAN ports TDMA supported Quick match through DIP switch Visualized topology management Up to 15 km wireless transmission distance Product Dimensions (W `d7 H `d7 D) 92 mm `d7 187 mm `d7 58 mm (3.62“ `d7 7.36“ `d7 2.28“) Package Dimensions (W `d7 H `d7 D) 132 mm `d7 228 mm `d7 91 mm (5.19″ `d7 8.97″ `d7 3.58″) Net Weight 0.307 kg (0.677 lb) Gross Weight 0.807 kg (1.779 lb) Packing List Wireless Bridge `d7 1,Power Adapter (12 VDC, 1 A) `d7 1,Binding Tape `d7 2,10/100/1000 Mbps PoE Injector `d7 1,Quick Start Guide `d71,Regulatory Compliance and Safety Information `d7 1 Packing Method Single unit packing Working Temperature -30 `b0C to 70 `b0C (-22 `b0F to 158 `b0F) Working Humidity 5% to 95% (no condensation) Storage Temperature -40 `b0C to 85 `b0C (-40 `b0F to 185 `b0F) Storage Humidity 5% to 95% (no condensation) Installation Mode Pole Mounting Ingress Protection IP55 Power Consumption 3 W for typical (1-ch 2MP IPC), Max. 7.5 W Wireless Parameter Max. Transmission Rate of Air Interface ≤ 867 Mbps Wireless Standard IEEE 802.11/a/n/ac Working Frequency Band 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz Antenna Gain 12 dBi Antenna Angle (H) Beamwidth [3 dB] 35`b0 (V) Beamwidth [3 dB] 35`b0 Transmitting Power 30 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.) Receiving Sensitivity -86`b12dBm@AC80-MCS0 Throughput Rate PTP: ,230 Mbps/1 KM(AC80),200 Mbps/5 KM(AC80),20 Mbps/15 KM(AC80),PTMP(1 to 8): ,80 Mbps/5 KM(AC80) Hardware Parameter Network Interface 2 `d7 1000 Mbps RJ45 ports LED Indicator Power indicator,LAN indicator,Signal intensity indicator Reset Hardware resetting button Power Supply 12-24 VDC/1 A Passive PoE Software Function Application Function TDMA,DFS,TPC,IFM,IPM Channel Width 20/40/80 MHz Channel Selection Auto/manual selection Security Mode WPA2-PSK Security Mechanism Wireless network name hidden Network Protocol NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging) Management Method HCP,Web,iVMS-4200,HPP System Log Syslog,Control center information Upgrade Web,iVMS-4200,HCP,HPP HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information 4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power 6. Bridge alignment 7. Spectrum scanning Approval EMC CE-EMC (EN 55032: 2015 A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013 A1: 2019, EN 50130-4: 2011 A1: 2014, EN 55035: 2017 A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014 A11: 2017) Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) Radio EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
Wireless Networking
