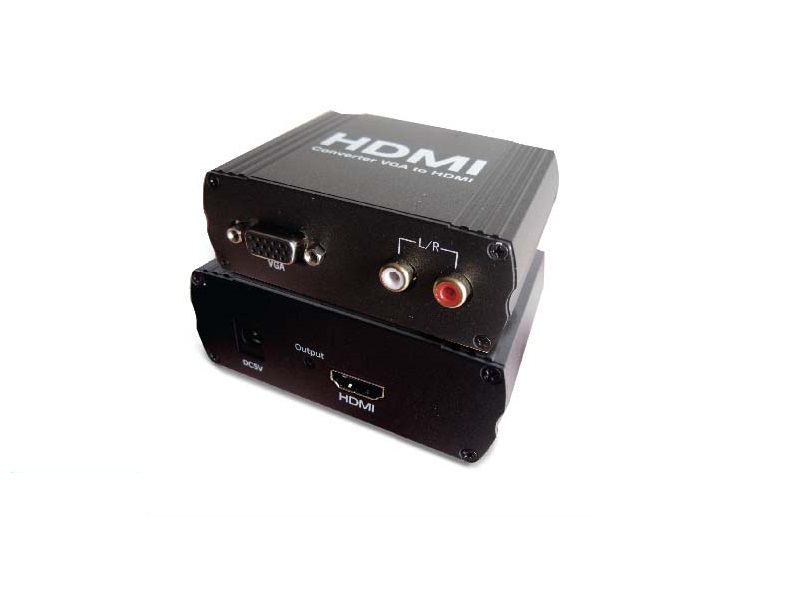

FEATURES • One VGA R/L input signal convert to one HDMI sink devices • Support video input : VGA analog • Support audio input : R/L analog • HDMI output : Support up to 1080P, same forant as input • Support CEC • LED indication : when source or sink is working, LED relative to is light • Support output up to 20 meters AWG26 cable length • No loss of quality • Install in minutes • Need DC5V/2A power supply Standard Package 1. HDCVGA0101 VGA to HDMI converter 2. Power adapter OPERATION and CONNECTING 1. Connect VGA R/L from VGA source devices into Converter input 2. Connect one cable from HDMI display (monitor or projector) into Converter input 3. Connect 5V power supply to the HDCVGA101 Converter SPECIFICATIONS – VGA Input : Support up to SXGA/SGA/UGA (50/60/70 Hz) – Audio Input : R/L Analog – HDMI resolution : Support up to 1080P, same forant as input – Max transmission bandwidth : 5.1 Gbps – Input Video Signal : 0.5-2.0 Volts p-p – Output DDC Signal : 5 Volts p-p (TTL) – Max working currebt : 600mA – Power adapter format : input :AC (50Hz, 60Hz) 100V-240V, Output: DC5V/1A – Operating Temperature range `85 (-15 to 55`baC) – Operating Humidity range `85 5 to 90% RH ( No Condesation) – Dimension (LxWx H) : 90x70x33(mm) – Weight : 155g
