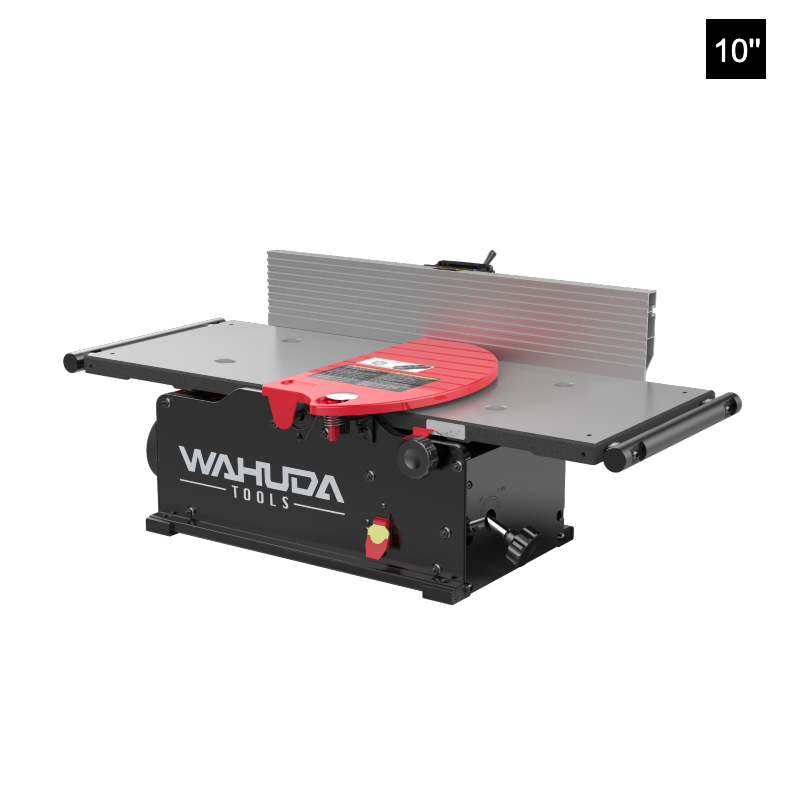

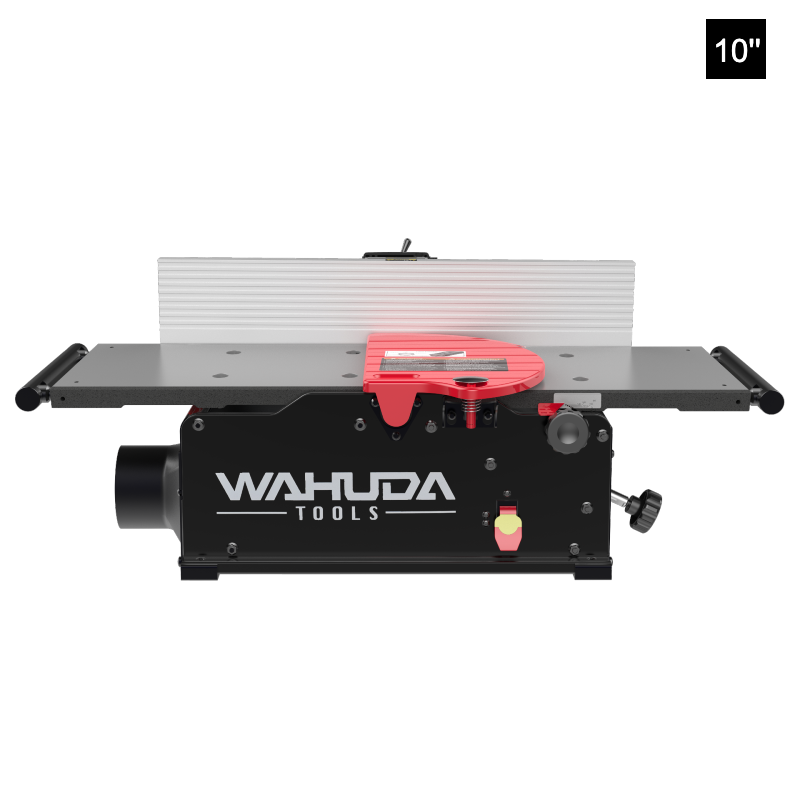

Features & Specs 0% 10-Inch Woodworking Jointer If our 6" or 8" bench top jointers do not quite have the width capacity you are looking for, we'd like to introduce our new 10" WAHUDA spiral style bench top jointer model 50110CC-WHD. As with our other jointers, our new 10" model is very capable of milling stock in a small pro shop. It's also manufactured to tight tolerances in a certified ISO 9001 factory and is CSA approved for performance and your safety. With the cast iron tables, our newest jointer weighs about 74 lbs, making it easily maneuvered around your shop or jobsite. The cast iron tables also provide better stability during operation and are less prone to scratching. Table leveling for coplanar, if ever needed, is easily achieved via set screws installed in each table. Even the pull out extensions are easily adjustable for coplanar if necessary. With the 33 1/2" total table length end to end, extendable to 51" of usable support with the table extensions pulled out, machine depth of around 22", and total height of about 13 3/8", it will fit in just about the same footprint as the 8" jointer. The newly incorporated spiral style cutterhead, manufactured with the same heavy duty aluminum extrusion over steel inner shaft, now provides you the cutting edge sharpness retention from having 20 carbide 4-sided insert tips installed. While being quieter than the straight knife cutterhead noise you have had to endure, you also get the smooth finish on your stock you've been looking for from the spiral design ... even on figured woods. And only having to loosen or remove one mounting screw on each insert, provides extremely quick tip rotation or replacement if the insert becomes nicked. This keeps your downtime to a minimum and your project on time. Our new 10" jointer has some of the same features as our previous highly rated models. It has a maximum capacity of 10" face planing width and 1/8" maximum depth of cut and a 4" included dust port with 2 1/2" adapter for better chip evacuation. This model has a 4 3/8" high by 24" long extruded aluminum fence which can be easily tilted from 90 to 135 degrees with ease. It has a 120V 12 amp AC motor which provides ample machining power. Included are the push blocks, the tools you need to properly set up and adjust the machine, and a T-Torx wrench to rotate or replace the insert tips. If you feel our new 10" jointer is a bit of overkill for your needs, or a little too large of footprint for your available shop space, check out our 6" and 8" bench top jointers. Features Powerful 12 Amp 120V motor Newly Incorporated Spiral Style Cutterhead with 20 4-sided carbide Inserts Long Extruded Fence with 90 to 135 Degree Tilt Adjustable and expandable table extensionsIf you're looking for a little bit more length or width capacity than our 6" or 8" jointers have, take a look at this 10" jointer. This compact benchtop jointer packs a lot of punch. And as small power jointers go, it's at the top of its class. It has a 33 1/2" table length, end-to-end, with table extensions allowing it to increase in length to 53 1/2". It's about 22” deep, 13 3/8” high, and weighs about 74 lbs, making it easy to move around in the shop or out on the job site. The new spiral cutterhead features 20 4-sided carbide-tipped inserts that can quickly and easily be rotated to a new edge if an old one gets chipped or otherwise damaged. The 120V 12 amp motor provides all the power you'll need.
