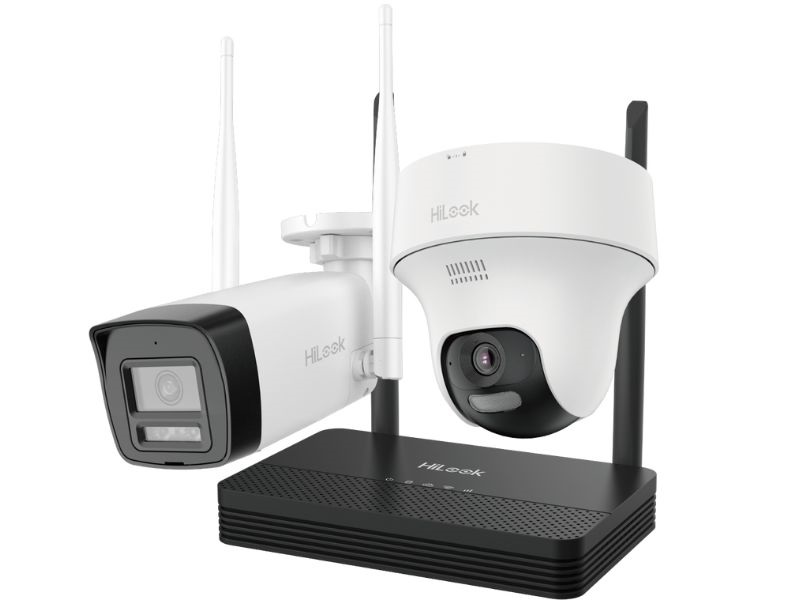

HiLook 4MP H.265 One bullet One turret

HiLook 4MP H.265 One bullet One turret WiFi NVS Kit Easy and quick wireless installation All cameras can be linked with NVS at one time Secure and integrated video storage, all videos are stored in NVS Up to 512 GB Micro SD card storage capacity Remote mobile phone management, all functions can be performed through Hik-Connect, such as camera adding, two-way audio, live view, playback, etc. Accurate motion detection function 1 fixed bullet camera and 1 fixed PT turret camera, both with 4 MP resolution and 2.8 mm focal length Camera Camera Case Type Bullet;Turret Image Sensor 1/2.7″ Progressive Scan CMOS Min. Illumination Bullet`a3`baColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Turret`a3`baColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @(F2.0, AGC ON), 0 Lux with IR Day &Night IR cut filter WDR DWDR Angle Adjustment Bullet: Pan: 0`b0 to 360`b0,tilt: 0`b0 to 90`b0,rotate: 0`b0 to 360`b0 Turret: Pan: 0`b0 to 350`b0,tilt: 0`b0 to 75`b0 Protection Level Bullet`a3`baIP66 Turret`a3`baIP54 Material Plastic Wi-Fi Support Yes Camera/General Power Supply Bullet: 12 VDC `b1 25%, 0.5 A, max. 6 W,`d85.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package. Turret: 12 VDC `b1 25%, reverse polarity protection, 0.75 A, max. 9 W, `d85.5 mm coaxial power plug Consumption Bullet: ≤ 6 W Turret: ≤ 9 W Working Temperature Bullet: -30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F) Turret: -10 `b0C to 40 `b0C (-14 `b0F to 104 `b0F) Working Humidity 95% or less (non-condensing) Dimension (W `d7 D `d7 H) Bullet: 260.9 mm `d7 113.9 mm `d7 67.4 mm (10.3″ `d7 4.5″ `d7 2.7″) Turret: `d8124 mm `d7 119 mm (`d84.89 `d7 4.68″)” Bullet: 305 g (0.67 lb.) Turret: 290 g (0.6 lb.) Camera/Lens Focal Length 2.8 mm Aperture Bullet: F1.6 Turret: F2.0 Focus Fixed FOV Bullet: horizontal FOV 94`b0, vertical FOV 49`b0, diagonal FOV 114`b0 Turret: horizontal FOV 91.1`b0, vertical FOV 47.9`b0, diagonal FOV 110.8`b0 Camera/IR IR Range Bullet: Up to 30 m Turret: White light distance: up to 15 m,IR distance: up to 20 m Camera/Compression Standard Video Compression H.265;H.264;MJPEG H.264 Type Baseline Profile/Main Profile/High Profile H.265 Type Main Profile Video Bit Rate 32 Kbps to 8 Mbps Audio Compression G.711ulaw/AAC-LC Audio Bit Rate 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz/16 kHz Environment Noise Filtering Yes Camera/Image Max. Resolution 4MP Main Stream 50 Hz`a3`ba25 fps`a3`a82560 `d7 1440`a3`ac1920 `d7 1080`a3`ac1280 `d7 720`a3`a9 60 Hz`a3`ba20 fps`a3`a82560 `d7 1440`a3`a9`a3`ac24 fps`a3`a81920 `d7 1080`a3`ac1280 `d7 720`a3`a9 Sub-stream 50 Hz: 25 fps (768 `d7 432) 60 Hz: 30 fps (768 `d7 432) Image Setting Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser Day/Night Switch Auto/Scheduled/Day/Night Camera/Network Alarm Trigger Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv6, UDP, QoS, UPnP General Function One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter Camera/Interface Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port Reset Button Yes NVR/Video and Audio IP Video Input 4-ch Incoming/Outgoing Bandwidth 20 Mbps/20 Mbps NVR/Decoding Video Resolution 6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF Synchronous Playback 1-ch NVR/Network Network Interface 1, RJ45 10/100M Ethernet interface NVR/Wi-Fi Frequency Band 2.4 GHz Antenna Structure High gain antenna Transmission Speed 150 Mbps NVR/Auxiliary Interface SD Card 32G/64G/128G/256G/512G NVR/General Power Supply 12 VDC Consumption (without HDD and PoE off) ≤ 6 W Working Temperature -10 `b0C to 55 `b0C (14 `b0F to 131 `b0F) Working Humidity 10% to 90% Dimension (W `d7 D `d7 H) 163 x 125 x 26 mm (6.4″ `d7 4.9″ `d7 1.0″) Weight (without hard disk) ≤ 500g Kit Accessories Power cable: 2 `d7 IPC power cables, 1 `d7 NVS power cable Ethernet cable: RJ45, Cat5e UTP, 1 m Certification CB, CE Weight (with package) ≤ 2 kg (4.4 lb)
