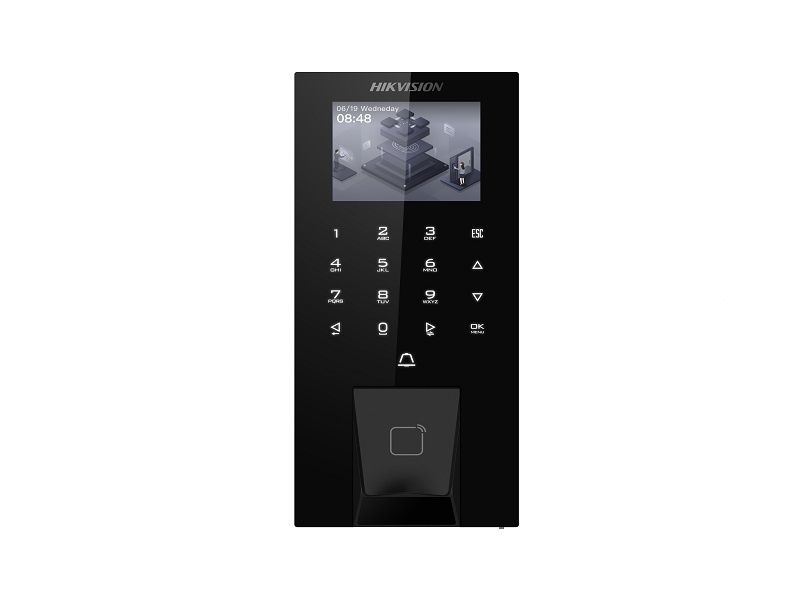

DS-K1T807MBFWX-E1 Value Fingerprint Terminal 2.4-inch LCD screen Multiple authentication methods, including fingerprint, card (M1 card), and PIN, etc. Max. 5000 cards, 5000 fingerprints and 150,000 events Supports ISAPI and ISUP 5.0 protocols Configuration via web client Supports wired network and Wi-Fi (AP mode) Supports wiring with secure door control unit or card reader via RS-485 Supports powered by 12 VDC or PoE and supports powering for device and door lock System Operating system Linux Display Screen size 2.4 inch Type LCD Resolution 320 `d7 240 Audio Audio output Support Network Wired network Support Wi-Fi Support, 2.4 G, 802.11b/g/n Bluetooth Support Interface Network interface 1 RJ-45, 10/100 M self-adaptive Lock control 1 Exit button 1 Door contact input 1 Alarm input 2 TAMPER 1 Alarm output 1 RS-485 1 RS-485 (Half duplex, HIKVISION) Wiegand 1 Wiegand (W26, W34) USB 1 PoE Support Capacity Fingerprint capacity 5000 Card capacity 5000 Event capacity 150,000 Authentication Card type M1 card Fingerprint module Optical fingerprint module Fingerprint comparing mode 1:1 and 1:N General Power supply 12 VDC Supports power supply by battery in the bracket Power consumption ≤ 6 W Working temperature -30 `b0C to 60 `b0C (-22 `b0F to 140 `b0F) Working humidity 0 to 90% (No condensing) Language English, Spanish (South American), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese(Brazil), Turkish, Ukrainian, Italian, French Keypad Support Dimensions 172 mm `d7 76 mm `d7 27.5 mm (6.77″ `d7 2.99″ `d7 1.08″) Installation Wall mounting Net weight: 0.377 kg (0.831 lb) Rough weight: 0.562 kg (1.239 lb)
