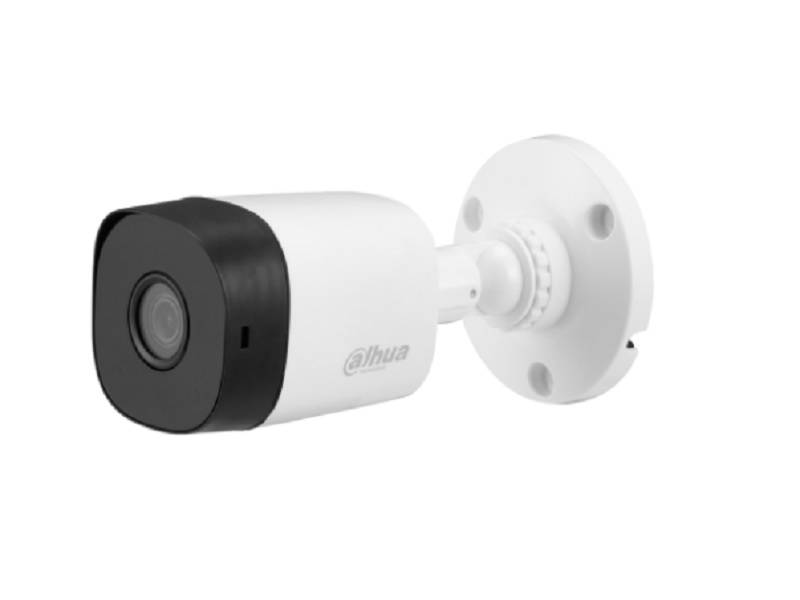

Home/Paper & Plastic Products/DAHUA Bullet 5Mp-2.8Mm Camera USB 3.0 To Micro Hdd Cable 3 Mtr DAHUA Bullet 5Mp-2.8Mm Camera Category: Electronics Camera Image Sensor 1/2.7″ CMOS Max. Resolution 2880 (H) `d7 1620 (V) Pixel 5MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25-1/100000 s NTSC: 1/30-1/100000 s Min. Illumination 0.02 Lux/F2.0, 30IRE, 0 Lux IR on S/N Ratio More than 65 dB Illumination Distance 20 m (66 feet) Illuminator On/Off Control Auto;manual Lens Lens Type Fixed lens / Fixed iris Mount Type M12 Focal Length 3.6 mm (2.8 mm Optional) Max Aperture F2.0 Angle of View 2.8 mm: 125`b0 `d7 106`b0 `d7 56`b0 (diagonal `d7 horizontal `d7 vertical) 3.6 mm: 104`b0 `d7 88`b0 `d7 46`b0 (diagonal `d7 horizontal `d7 vertical) Focus Control N/A Close Focus Distance 2.8 mm: 0.8 m (2.6 ft) 3.6 mm: 1.2 m (3.9 ft) DORI distance Lens Detect Observe Recognize Identify 2.8mm 56.0 m (183.7 ft) 22.4 m (73.5 ft) 11.2 m (36.7 ft) 5.6 m (18.4 ft) 3.6mm 80 m (262.5 ft) 32 m (105.0 ft) 16 m (52.5 ft) 8 m (26.2 ft) Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0`b0 – 360`b0 Tilt: 0`b0 – 90`b0 Rotation: 0`b0 – 360`b0 Video Resolution 5M (2880 `d7 1620); 4M (2560 `d7 1440); 1080P (1920 `d7 1080); 960H (960 `d7 576/960 `d7 480) Frame Rate CVI: PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps; 5M@25 fps NTSC:5M@25 fps;4M@30 fps; 1080P@30 fps; 5M@25 fps AHD: PAL:4M@25 fps; NTSC:4M@30 fps; TVI: PAL:4M@25 fps; NTSC:4M@30 fps; CVBS: 960H; Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto;manual Smart IR Yes Mirror Off/On Privacy Masking Off / On (8 area, rectangle) Certifications Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1, EN 62368-1:2014 A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) Interface Audio Interface N/A Eelectrical Power Supply 12V DC `b130% Power Consumption Max. 3.7W (12V DC, IR on) Environmental Operating Conditions -40`b0C to 60`b0C (-40`b0F to 140`b0F) /Less than 95% RH * Start up should be done at above -40`b0C (-40`b0F) Storage Conditions -40`b0C to 60`b0C (-40`b0F to 140`b0F) /Less than 95% RH Ingress Protection & Vandal Resistance IP67 Construction Casing Plastic Dimensions 69.8 mm `d7 69.8 mm `d7 149.3 mm (2.75″ `d7 2.75″ `d7 5.88″) Net Weight 0.15 kg (0.33 lb) Gross Weight 0.25 kg (0.55 lb) Related products USB To Rs232 Db25 Cable GeneralAdd to cart ZATECH Usb2.0 To Sata Cable Table BasesAdd to cart USB 3.0 To Micro Hdd Cable 1.5 Mtr Alarm SystemsAdd to cart USB To Parellel 1284 Cable African ShopAdd to cart
Camera Image Sensor 1/2.7″ CMOS Max. Resolution 2880 (H) `d7 1620 (V) Pixel 5MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25-1/100000 s NTSC: 1/30-1/100000 s Min. Illumination 0.02 Lux/F2.0, 30IRE, 0 Lux IR on S/N Ratio More than 65 dB Illumination Distance 20 m (66 feet) Illuminator On/Off Control Auto;manual Lens Lens Type Fixed lens / Fixed iris Mount Type M12 Focal Length 3.6 mm (2.8 mm Optional) Max Aperture F2.0 Angle of View 2.8 mm: 125`b0 `d7 106`b0 `d7 56`b0 (diagonal `d7 horizontal `d7 vertical) 3.6 mm: 104`b0 `d7 88`b0 `d7 46`b0 (diagonal `d7 horizontal `d7 vertical) Focus Control N/A Close Focus Distance 2.8 mm: 0.8 m (2.6 ft) 3.6 mm: 1.2 m (3.9 ft) DORI distance Lens Detect Observe Recognize Identify 2.8mm 56.0 m (183.7 ft) 22.4 m (73.5 ft) 11.2 m (36.7 ft) 5.6 m (18.4 ft) 3.6mm 80 m (262.5 ft) 32 m (105.0 ft) 16 m (52.5 ft) 8 m (26.2 ft) Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0`b0 – 360`b0 Tilt: 0`b0 – 90`b0 Rotation: 0`b0 – 360`b0 Video Resolution 5M (2880 `d7 1620); 4M (2560 `d7 1440); 1080P (1920 `d7 1080); 960H (960 `d7 576/960 `d7 480) Frame Rate CVI: PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps; 5M@25 fps NTSC:5M@25 fps;4M@30 fps; 1080P@30 fps; 5M@25 fps AHD: PAL:4M@25 fps; NTSC:4M@30 fps; TVI: PAL:4M@25 fps; NTSC:4M@30 fps; CVBS: 960H; Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto;manual Smart IR Yes Mirror Off/On Privacy Masking Off / On (8 area, rectangle) Certifications Certifications CE (EN55032, EN55024, EN50130-4,EN60950-1, EN 62368-1:2014 A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) Interface Audio Interface N/A Eelectrical Power Supply 12V DC `b130% Power Consumption Max. 3.7W (12V DC, IR on) Environmental Operating Conditions -40`b0C to 60`b0C (-40`b0F to 140`b0F) /Less than 95% RH * Start up should be done at above -40`b0C (-40`b0F) Storage Conditions -40`b0C to 60`b0C (-40`b0F to 140`b0F) /Less than 95% RH Ingress Protection & Vandal Resistance IP67 Construction Casing Plastic Dimensions 69.8 mm `d7 69.8 mm `d7 149.3 mm (2.75″ `d7 2.75″ `d7 5.88″) Net Weight 0.15 kg (0.33 lb) Gross Weight 0.25 kg (0.55 lb)
