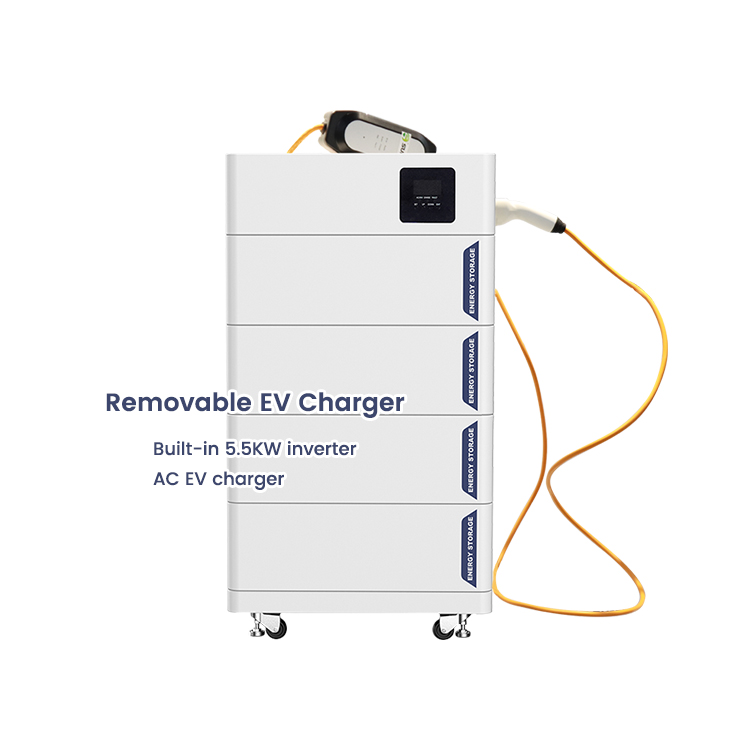

LOW VOLTAGE STACKED LITHIUM BATTERY*The power module adopts a new topological circuit design *High control accuracy, small volume *The mains charging module adopts advanced control algorithm to realize full digital double closed-loop control of voltage and current *AC voltage input range is wide, the input and output protection function is complete, can achieve stable and reliable battery charging and protection *Suitable for household appliances, power tools and other AC loads *The inverter module is based on full digital intelligent design, adopts advanced SPWM technology3.5KW PORTABLE AC EV CHARGER*Beautiful appearance, handheld design conforms to ergonomic principles*Easy to plug and unplug, excellent protective performance, the overall structure of the shell improves the protective performance*The shell is made of thermoplastic plastic with high flame retardant rating*No-load plugging and unplugging times reach more than 10,000 times LOW VOLTAGE STACKED LITHIUM BATTERY ModelsSW51100Single Module Capacity5.12kwhModule Number1234Rated Capacity5.12kwh10.24kwh15.36kwh20.48kwhNominal Voltage51.2VWorking Voltage44V-58.4VNominal Discharging Current100A200A300A400ANominal Charging Current50A100A150A200ARecommended Discharge Level80Humidity20%-60%Installation MethodStacked modeProtection LevelIP20Communication ProtocolCAN/RS485/RS232（WIFI Optional)Dimension/module600*440*200mmNet Weight/module40kgBattery Pack ParametersCell TypeLFPBattery Rated Input Voltage51.2VDCHybrid Charging Maximum Charging Current80ABattery Pack Voltage Range40VDC-60VDCPhotovoltaic Input ParametersMaximum PV Open Circuit Voltage500VDCPV Working Voltage Range120V-500VDCMPPT Voltage Range120V-450VDCMaximum PV Input Current16AMaximum PV Input Power5500WMaximum PV Charging Current100AAC parameters（Grid-connected side)Maximum Charging Current60ARated Input Voltage220V/230VACInput Voltage Range170VAC-280VACFrequency50Hz/60HzCharging Efficiency>95%Switching Time10msMaximum Bypass Overload Current40AAC output parameters（Grid-connected side)Output Voltage WaveformPure sine waveRated Output Voltage230VAC±5%Rated Output Power5000WPeak Power10000VA 5.5KW OFF GRID SOLAR INVERTERMODELSK-5500P-48LSingle Module Capacity5500WBattery TypeLead Acid/LiFePO4Parallel CapabilityYesINPUTNominal Voltage230VACAcceptable Voltage Range170-280VAC(For personal computer),90-280VAC(For home appliances)Frequency50Hz/60Hz(Auto sensing)OUTPUTNominal Voltage220/230VAC±5%Surge Power11000VAFrequency50Hz/60HzWave FormPure sine waveTransfer Time10ms(For personal computer),20ms(For home appliances)Peak Efficiency(PV to INV)96%Peak Efficiency(Battery to INV)93%Overload Protection5s@≥150% load；10@110%~150% loadCrest Factor3:1Admissiable Power Factor5s@≥150% load；10@110%~150% loadSOLAR CHARGE & AC CHARGESolar Charge TypeMPPTMaximum PV Array Power5500WMaximum PV Array Open Circuit Vol.500VDCPV Array of MPPT Voltage Range60VDC~500VDCMaximum Solar Input Current18AMaximum Solar Charge Current100AMaximum AC Charge Current80AMaximum Charge Current100APHYSICALProduct Dimension(D*W*H mm)448*295*129mmNet Weight(kgs)10KGCommunication InterfaceRS485/RS232/Dry-contactENVIRONMENTOperation Temperature Range-10°C~55°CStorage Temperature-15°C~50°CHumidity5% to 95% Relative Humidity(Non-condensing) PERFORMANCE PARAMETERModelsSWEVAC3.5KPower3.5KWRated Input VoltageAC220V±15%Rated Output VoltageAC220V±15%Rated Output Current8~16AProtection LevelIP55Working Temperature-30°C~ 55°C
