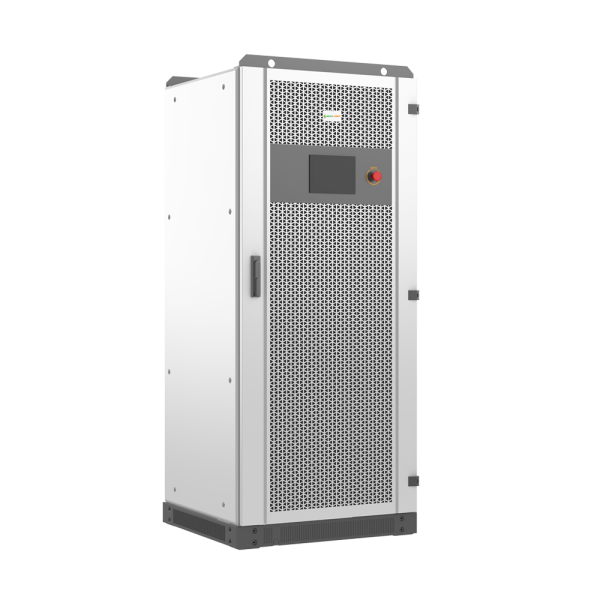

C&I Power Conversion System (with isolation transformer) 30/50kW

C&I PCS series isolated energy storage converter is developed based on the application requirements of large C&I such as peak load shifting, battery backup, etc. It adopts full digital control technology, integrates the leading technological achievements of contemporary power electronics, and the highest efficiency of the product reaches 97.5%; Support multi-machine parallel function, can meet the power demand of 30KW~3MW.Intelligent and EfficientHighest power density, maximum efficiency of 97.5%.With grid-connected charging and discharging, off-grid independent inverter function.Support on/off grid automatic switching.Built-in simple EMS function, support remote maintenance and monitoringSafe and ReliableBuilt-in isolation transformer, high load adaptability.AC/DC dual backup for auxiliary power supply.FlexibleWide battery voltage range, support multiple battery access.Reactive power and active power adjustable.Off-grid cold start function, support multi-machine parallel function.Integrated design for easy transportation and integration.Integrated on and off-grid automatic switching components, saving users’ system costs.Support RS485, CAN communication mode,can accept BMS instruction inreal time.Appllications PV charging station,wind power storage,combined thermal power FM,grid-side storage etc.Model NumberPCS30KTSPCS50KTSPCS100KTSPCS150KTSPCS250KTSPCS500KTSAC(on-grid)Max. output power(kVA)3355110165275550Rated power (kVA)3050100150250500Rated voltage(V)400Rated current(A)4372144216361722Max.output current(A)4880159238397794Voltage range(V)320~460Rated frequency (Hz)50/60Frequency range(Hz)45-55/55-65THDiPower factor1 lagging ~ 1 leading (settable)AC output topology3W N PEAC(off grid)Rated voltage(V)400THDuRated frequency (Hz)50/60Overload capacity110% ~ long-termDC(Battery)Battery voltage range(V)250-850320-850420-850420-850420-850500-850Max. current(A)1371782704056731128General DataMax.effciency96.30�.50�.10�.10�.30�.50%Dimensions W*D*H (mm)800*800*2050800*800*2050800*800*2050800*800*20501200*800*20501600*1050*2050Weight (kg)605676936105715822665Transformer ratio100/400200/400270/400270/400270/400315/400Self consumptionOn/off grid switchingAutomaticOperation temperature– 30℃～ 55℃Relative humidity0 ~95%（non-condensing）IP raitoIP21Noise emission(dB)Altitude3,000 Derating)Cooling Forced airDisplay and communicationDisplayLCD touch screenBMS communicationRS485,CANEMS communicationRS485,TCP/IP
