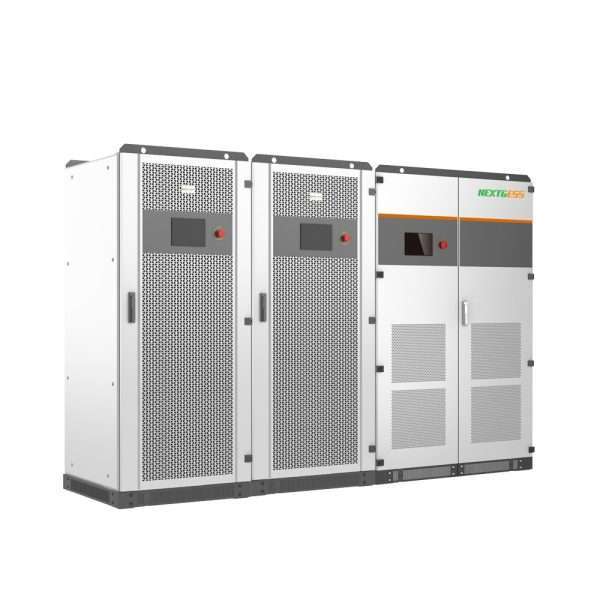

Specially designed for weak and no electricity areasHIM series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, which greatly improves customer deployment efficiency and reduces installation costs. PV capacity can be flexibly configured, which greatly improves system availability and is suitable for the remote areas and islands where power is relatively weak.Intelligent and EfficientSupport battery capacity and discharge time prediction.Smooth switching between on and off grid,uninterrupted supply of load.Integrated EMS function, power supply security and stability, maximum utilization of new energy.Safe and ReliableBuilt-in isolation transformer for high load adaptability.Perfect protection function for inverter and battery.Redundancy design for important functions.FlexibleVarious working modes.PV controller modular,easy to expand.Strong adaptability.Support black start.Supports unattended operation.HMI digital display panel.Compatible with lead-acid and lithium-ion battery.Simultaneous input of PV, batteries, diesel generators, power grid and loads.Built-in maintenance bypass switch,improve system availability.Appllications Villages without electricity,off-grid island,nomadic farm,off-gird mine etc.Model NumberHIM30KHIM50KHIM100KHIM150KHIM250KHIM500KAC(on-grid)Max. output power(kVA)3355110165275550Rated power (kVA)3050100150250500Rated voltage(V)400Rated current(A)4372144216361722Voltage range(V)320~460Rated frequency (Hz)50/60Frequency range(Hz)45-55/55-65THDiPower factor1 lagging ~ 1 leadingAC output topology3W N PETransformer ratie100/400200/400270/400270/400270/400315/400AC OutputMax. output power(kVA)3355110165275550Rated power (kVA)3050100150250500Rated voltage(V)400Rated current(A)4372144216361722THDu≤1% linear,or ≤5% nonlinearRated frequency (Hz)50/60Overload capacity110% ~ long-termPV inputMax.PV input voltage(V)1000Max.PV power(kW)60/12060/120120/180/240120/180/240300/600600/660/720MPPT voltage range(V)250-850MPPT voltage range@full load(V)450-850DC(Battery)Battery voltage range(V)250-850320-850420-850420-850420-850500-850Max.charging power(kW)60/12060/120120/180/240120/180/240300/600600/660/720General DataDimensions W*D*H (mm)800*800*1900800*800*19001200*800*20501200*800*2050（600*720*2050）*1 1200*800*2050（600*720*2050）*2 1600*1050*2050Weight (kg)620/650720/7501120/1150/11801250/1280/13101980/20103265/3295/3325Operation temperature– 30℃～ 55℃Relative humidity0 ~95%（non-condensing）IP raitoIP20Noise emission(dB)Altitude3,000 Derating)Cooling Air coolingDisplay and communicationDisplayLCD touch screenBMS communicationRS485,CANEMS communicationRS485,TCP/IP
