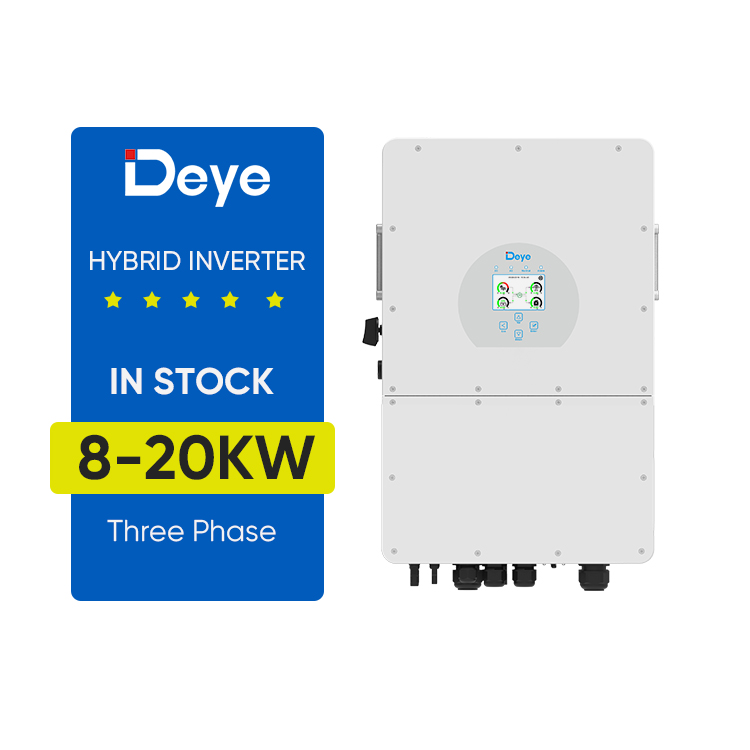

DEYE SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 Three Phase Hybrid Inverter
$52.4
$83.31
SUN 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is a brand new series of three phase hybrid inveter supporting 160-700V HV Battery, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.ModelSUN-8K -SG01HP3-EU-AM2SUN-10K -SG01HP3-EU-AM2SUN-12K -SG01HP3-EU-AM2SUN-15K -SG01HP3-EU-AM2SUN-20K -SG01HP3-EU-AM2Battery Input Data Battery TypeLithium-ionBattery Voltage Range(V)160-700Max.Charging Current(A)303037Max.Discharging Current(A)303037Charging Strategy for Li-ion BatterySelf-adaption to BMSNumber of battery input1PV String Input Data Max DC Input Power（W）1040013000156001950026000Max DC Input Voltage（V）1000Start-up Voltage（V）180MPPT Voltage Range（V）150-850Rated DC Input Voltage(V)600Max Input Short-Circuit Current（A）30 3039 3039 39Max Operating PV Input Current（A）20 2026 2026 26No.of MPP Trackers/No.of String Per MPP Tracker2/1 12/2 12/2 2AC Input/Output Data Rated AC Input/Output Active Power（W）800010000120001500020000Max AC Input/Output Apparent Power （VA）880011000132001650022000Peak Power (off-grid)（W）1.5 times of rated power,10sRated AC Input/Output Current（A）12.2/11.615.2/14.518.2/17.422.8/21.830.4/29Max AC Input/Output Current（A）13.4/12.816.7/1620/19.225/2433.4/31.9Max Continuous AC Passthrough (grid to load)（A）4080Rated Input/Output Voltage/Range(V)220/380V，230/400V 0.85Un-1.1UnGrid Connection Form3L N PERated Input/Output Grid Frequency/Range50Hz/45Hz-55Hz 60Hz/55Hz-65HzPower Factor Adjustment Range0.8 leading to 0.8 laggingTotal Current Harmonic Distortion THDi<3% (of nominal power)DC Injection Current<0.5%lnEfficiency Max Efficiency97.60%Euro Efficiency97.00%MPPT Efficiency＞99%Equipment Protection IntegratedDC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection levelSurge Protection LevelTYPE II(DC),TYPE II(AC)Interface Communication InterfaceRS485/RS232/CANMonitor ModeGPRS/WIFI/Bluetooth/4G/LAN(optional)General Data Operating Temperature Range-40 to 60℃, >45℃ DeratingPermissible Ambient Humidity0-100%Permissible Altitude2000mNoise≤ 55 dB(A)Ingress Protection(IP) RatingIP 65Inverter TopologyNon-IsolatedOver Voltage CategoryOVC II(DC),OVC III(AC)Cabinet size（W*H*D）[mm]408*638*237（Excluding connectors and brackets）Weight[kg]30.5Warranty5 Years/10 Years，the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty PolicyType Of CoolingIntelligent air coolingGrid RegulationIEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G99,VDE-AR-N 4105Safety EMC/StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
