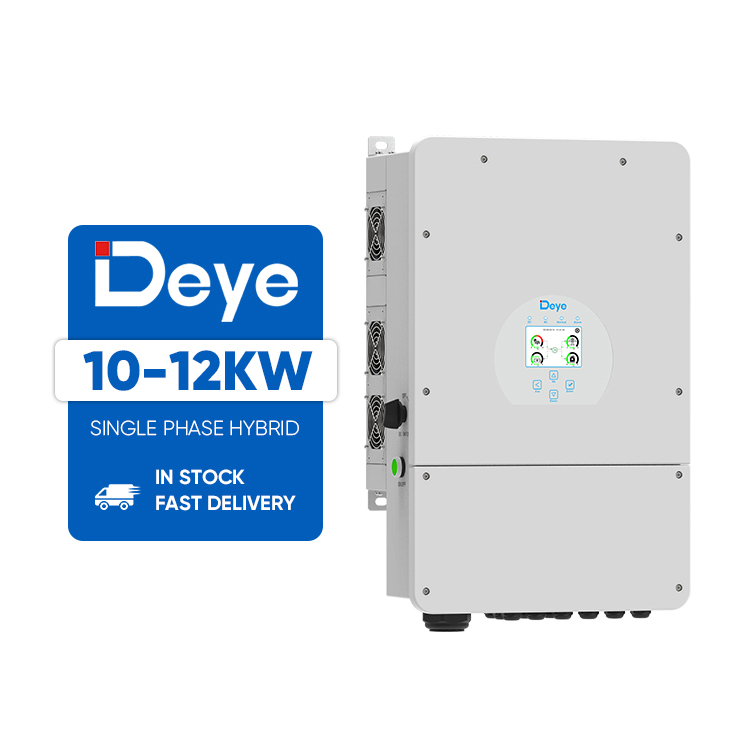

Deye SUN-12K-SG02LP1-EU-AM3 hybrid inverter single phase 10-12KW

SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3, is a high-performance single-phase inverter designed for residential and commercial solar applications. With power options ranging from 7.6 kW to 12 kW, this inverter efficiently converts solar energy into usable electricity. Its advanced MPPT technology ensures optimal energy harvesting under varying conditions. The device features an IP65 rating, making it suitable for outdoor installations, and offers robust communication capabilities for remote monitoring.ModelSUN-7.6K-SG02LP1-EU-AM2SUN-8K-SG02LP1-EU-AM2SUN-10K-SG02LP1-EU-AM3SUN-12K-SG02LP1-EU-AM3Battery Input Data Battery TypeLead-acid or Lithium-ionBattery Voltage Range(V)40-60Max.Charging Current(A)190190220250Max.Discharging Current(A)190190220250Charging Strategy for Li-ion BatterySelf-adaption to BMSNumber of battery input1PV String Input Data Max. PV Access Power (W)15200160002000024000Max DC Input Power（W）11400120001500018000Max DC Input Voltage（V）500Start-up Voltage（V）125MPPT Voltage Range（V）150-425Rated DC Input Voltage(V)370Max. Operating PV Input Current (A)26 2626 26 26Max. Input Short-Circuit Current (A)44 4444 44 44No.of MPP Trackers/No.of String Per MPP Tracker2/2 23/2 2 2AC Input/Output Data Rated AC Input/Output Active Power（W）760080001000012000Max AC Input/Output Apparent Power （VA）836088001100013200Peak Power (off-grid)（W）2 times of rated power,10sRated AC Input/Output Current（A）34.6/33.136.4/34.845.5/43.554.6/52.2Max AC Input/Output Current（A）34.6/33.136.4/34.845.5/43.554.6/52.2Max Continuous AC Passthrough (grid to load)（A）5060Power Factor Adjustment Range0.8 leading to 0.8 laggingRated Input/Output Voltage/Range (V)220/230 0.85Un-1.1UnRated Input/Output Grid Frequency/Range(Hz)50/45-55, 60/55-65Grid Connection FormL N PETotal Current Harmonic Distortion THDi<3% (of nominal power)DC Injection Current<0.5%lnEfficiency Max Efficiency97.6%Euro Efficiency96.5%MPPT Efficiency＞99%Equipment Protection   IntegratedDC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection levelSurge Protection LevelTYPE II(DC),TYPE II(AC)Interface Communication InterfaceRS485/RS232/CANMonitor ModeGPRS/WIFI/Bluetooth/4G/LAN(optional)General Data Operating Temperature Range-40 to 60℃, >45℃ DeratingPermissible Ambient Humidity0~100%Permissible Altitude2000mNoise＜45Ingress Protection(IP) RatingIP 65Inverter TopologyNon-IsolatedOver Voltage CategoryOVC II(DC),OVC IV(AC)Cabinet size（W*H*D）[mm]420×670×233（Excluding connectors and brackets）Weight[kg]35.6Warranty5 Years/10 Years，the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty PolicyType Of CoolingIntelligent air coolingGrid RegulationVDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,G98, G99, C10-11, UNE217002, NBR16149/NBR16150Safety EMC/StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
