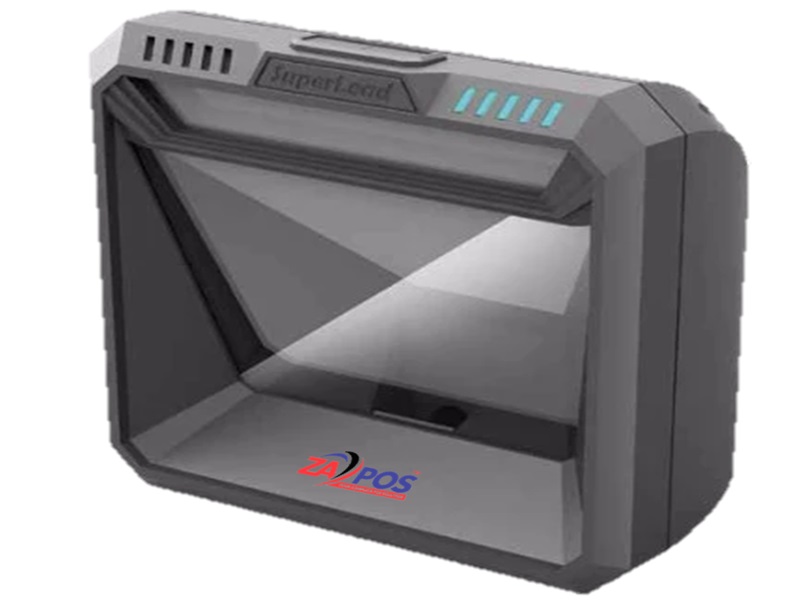

New hardware upgrade, equipped with 1.38 million pixel scanning lens. Super large scanning window, no need to focus, self-induction image reading. Big vision sensor, large reading range, Easy to read long bar code Support sports reading, up to 6M/S, sensitive scanning Support barcode reading without backlight Multi-languages direct transfer. The optical scanner can scan 1D/2D barcodes, support screen codes, as : packaging, labels, express waybill, wechat, alipay, etc. Application scenarios shopping malls, supermarkets, restaurants, tea shops, small and micro stores, warehousing and logistics, customer service front desk, etc Dimensions: 152mm x 149mm x 80mm Weight: 376g Voltage: 5 VDC Current: 500mA(Operating) Performance Characteristics Image(Pixels): 1280 p(H) x 1080 p(V) Light Source: illumination: 617nm RED LED Fielg of View: 45`b0 (H) x 35`b0 (V) Roll/Pitch/Yaw: Pitch `b165`b0 /Yaw 360`b0 /Roll `b160`b0 Motion Tolerances: max. 6m/s / up to 6 meters per second Print Contrast: ≥25% Interfaces Supported: USB, RS232 Minimal Resolution: 4mil Decode Capability: 1-D: UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc. 2-D: QR Code, MicroQR, PDF417, MicroPDF417, Data Matrix, Maxicode, Aztec, etc. User Environment Operating Temperature: 0℃-50℃ Storage Temperature: -40℃-70℃ Humidity: 0% to 95% relative humidity, non-condensing Shock Specifications: Designed to withstand 1.2m (5`) drops Ambient Light lmmunity: 100.000 Lux. Decode Ranges Code 39 (5mil): 0mm-60mm 100% UPC-A (13mil): 0mm-200mm
