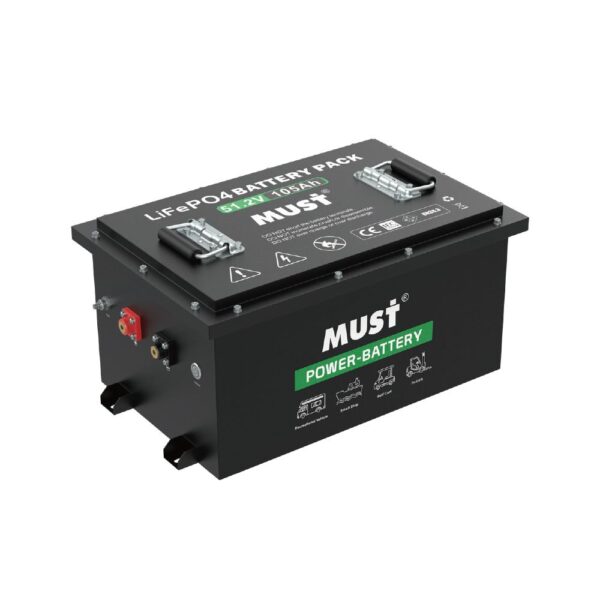

�� Versatile Capacity Options Available in 51.2V configurations: 50Ah / 100Ah / 105Ah / 150Ah / 200Ah Energy: 2.56kWh to 10.24kWh Max Output Power: 10kW ✅ Key Features ■ High energy density for compact power ■ Fast charging capabilities ■ 6000 life cycles with LiFePO₄ chemistry ■ Intelligent BMS with communication for smart control ■ IP67-rated enclosure for full dust and water protection ■ Low maintenance and long design life—up to 12 years ■ Storage duration of up to 24 months (fully charged) ■ Wide operating temperature: -10°C to 55°C ■ Eco-friendly and cobalt-free design �� Applications Ideal for AGVs, forklifts, sightseeing carts, golf carts, and marine power systems. Technical Data LP22-4850 LP22-48100 LP22-48105 LP22-48150 LP22-48200 ELECTRICAL Nominal Voltage 51.2V Nominal Capacity 50Ah 100Ah 105Ah 150Ah 200Ah Battery Energy 2560Wh 5120Wh 5376Wh 7680Wh 10240Wh Max. output power 2.5KW 5KW 5KW/ 10KW 5KW/ 10KW 10KW Max Charge Current 20A 100A 100A 100A 100A Charging Cut-off Voltage 57.6V± 0.2V Max Discharge Current 50A 100A/100A 100A/200A 100A/200A 200A Discharging Cut-off Voltage 44.8V± 0.2V Cell Type LiFePO4 Battery Terminal M8 screw / Anderson Case Material Metal Box Communication Mode RS485 or BT (optional) Charge Temperature Range 0 ~ 45°C Discharge Temperature Range -10 ~ 55°C Cycle Life 6000 cycles Designed Life 12 Years Colour Black / white Ingress Protection IP67 Warranty 5 years MECHANICAL Machine Dimension (W*H*D) (mm) / 646*195*438 / / / Package Dimension (W*H*D) (mm) / / / / / N.W (kg) / / / / / G.W (kg) / / / / / * Variations in dimensions and weights may occur due to production batches. CERTIFICATION & STANDARDS UN38.3, EN 61000-6-1, EN 61000-6-3, IEC62619
