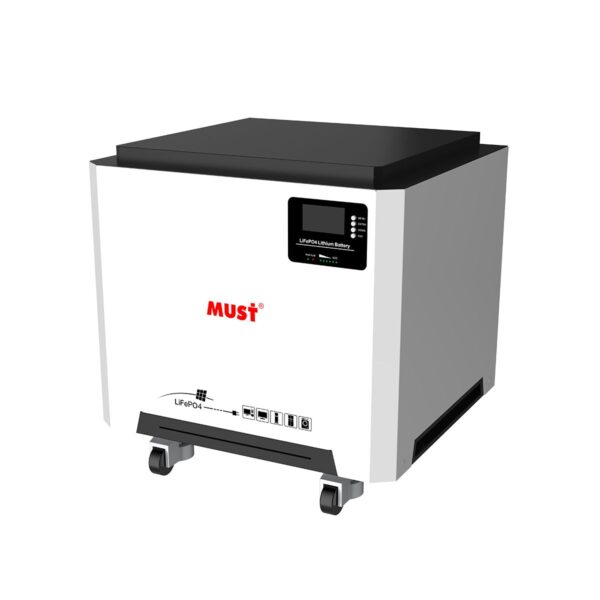

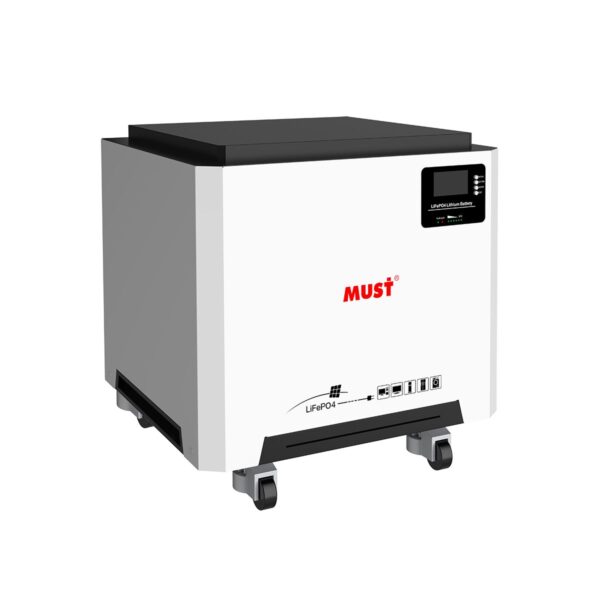

■ 6000 cycles @ 80% DOD, 25°C ■ Built-in WiFi Smart BMS Module ■ Modular design: supports up to 15 units in parallel ■ Spinner wheels design ■ IP21 protection for both indoor use ■ Support CAN & RS485 communication with mainstream inverters Technical Data LP20-24200 LP20-24280 LP20-48200 LP20-48280 Nominal Voltage 25.6V 51.2V Nominal Capacity 200Ah 280Ah 200Ah 280Ah Nominal energy 5120Wh 7168Wh 10240Wh 14336Wh Max. output power 3.5KW 5KW 7.5KW 10KW Life Cycles 6000 cycles @ 80% DOD, 25°C Recommended Charge Voltage 57.6V Recommended Charge Current 40A 56A 40A 56A End Of Discharge Voltage 44V Standard Method Charge 40A 56A 40A 56A Discharge 100A 140A 100A 140A Maximum Continuous Current Charge 150A 200A 150A 200A Discharge 150A 200A 150A 200A BMS Cut-Off Voltage Charge 29.2 V (3.65V/Cell) 58.4 V (3.65V/Cell) Discharge 22.0V (2.75V/Cell) 44.0V (2.75V/Cell) Temperature Charge 0~45°C Discharge -10~55°C Storage Temperature -5~35°C Shipment voltage ≥25.6V ≥51.2V Module Parallel Up to 15 units Communication CAN2.0/RS232/RS485 Case Material SPCC Machine Dimension (W*H*D) (mm) 540*430*533 540*429*533 540*430*533 540*547*533 Package Dimension (W*H*D) (mm) wooden box 624*624*567 624*624*567 624*624*567 644*604*674 N.W (kg) 54 86 86 115 G.W (kg) wooden box 70 102 103 135 * Variations in dimensions and weights may occur due to production batches. Charge Retention And Capacity Recovery Capability Standard charge the battery, and then put aside at room temperature for 28d or 55°C for 7d, Charge retention rate≥90%, Recovery rate of charge≥90% Warranty 5 years Certification & Standards CE-EMC (EN 61000-6-3: 2007 A1: 2011 AC: 2012 EN IEC 61000-6-1: 2019) UN38.3/ MSDS
