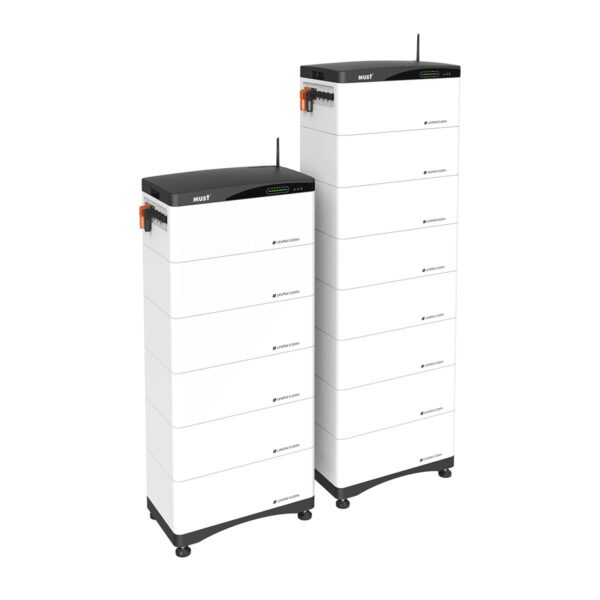

■ Max Continuous power 10kw ■ Standard warranty: 10 years ■ Peak power 12kw@30S ■ Easy installation with modular and stacked design, just plug and play ■ Real-time monitoring of battery charging and discharging, online system updates and maintenance ■ IP65 protection level design Suitable for indoor and outdoor ■ Excellent safety of cobalt free LiFePO4 battery 7000 cycles @ 80% DOD, 25 °C ■ Remote firmware upgrade ■ Independent BMS system for each module ■ Compatible with most popular inverter models (more than 15) on the market. ■ Stack up to 8 batteries(8*5.12kwh), parallel up to 16 batteries (max capacity: 81.92kWh) ■ Built-in WiFi Smart Module Datesheet LP30-5.1 LP30-10.2 LP30-15.3 LP30-20.4 LP30-25.5 LP30-30.6 LP30-35.7 LP30-40.8 Battery Module LP30-48100 Number of Modules 1 2 3 4 5 6 7 8 Energy Capacity 5.12kwh 10.24kwh 15.36kwh 20.48kwh 25.6kwh 30.72kwh 35.84kwh 40.96kwh Usable Capacity 4.91kwh 9.83kwh 14.75kwh 19.66kwh 24.58kwh 29.49kwh 34.41kwh 39.32kwh Max. output power 5KW 10KW 10KW 10KW 10KW 10KW 10KW 10KW Dimension (W*D*H)(mm) 620*360*360 620*360*570 620*360*780 620*360*1090 620*360*1200 620*360*1410 620*360*1620 620*360*1830 Weight(kg) 62 112 162 212 262 312 362 412 * Variations in dimensions and weights may occur due to production batches. Cycle Life 7000 cycles @ 80% DOD, 25 °C Maximum Charge Current 50A 75A 100A 125A 150A 175A 200A 200A Maximum Discharge Current 100A 200A 200A 200A 200A 200A 200A 200A GENERAL Battery Type Cobalt Free Lithium Iron Phosphate (LFP) Nominal Voltage 51.2V Operating voltage Range 44.8~56.8V IP Protection IP65 Install location Indoor or outdoor without sunlight exposure Installation Mode Floor installation, Stackable Operation Temperature Battery discharge: -10~55°C, battery charge: 0~45°C FEATURES BMS Monitoring Parameters SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement ,SOH Communication Port CAN/RS485/BLE/WIFI Warranty 10 years (standard warranty) (25 °C) CERTIFICATION CE/ IEC62619 / UL1973 / UL9540A / UN38.3
