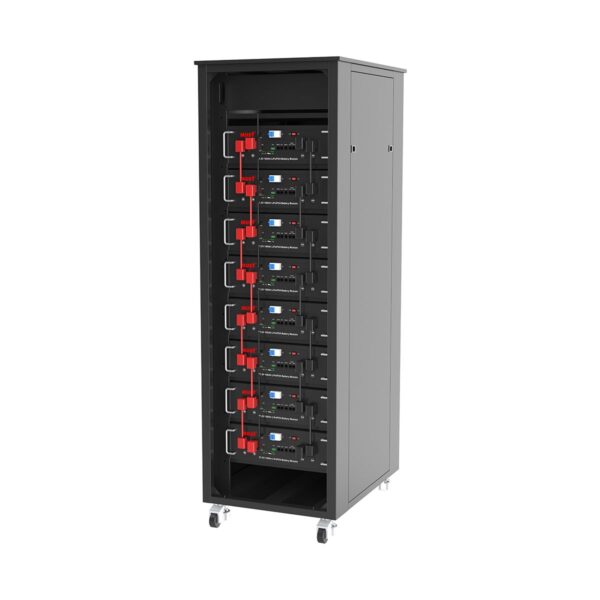

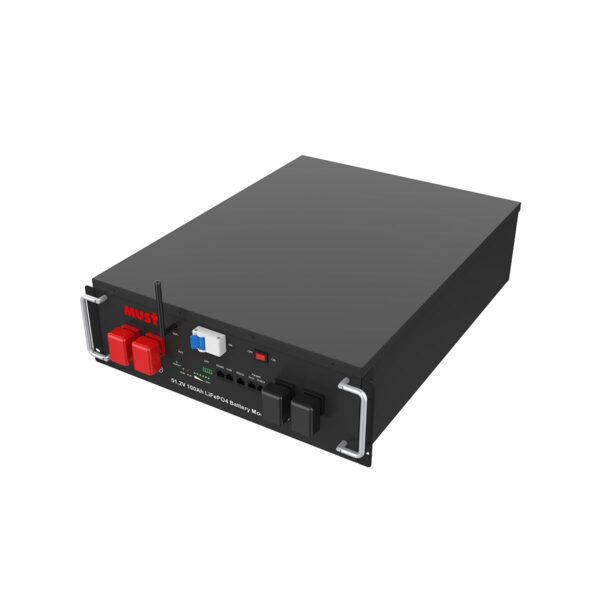

■ 6000 cycles @ 80% DOD, 25°C for effectively lower total of ownership cost ■ Integrated battery management system (BMS) ■ Safest lithium iron phosphate battery cell with high energy density ■ Modular design: LP1800 supports up to 15 units in parallel ■ 19 inches rack standard design, saving installation space ■ High integration, saving installation cost and simplifying the wiring ■ Perfect compatibility: support CAN & RS485 communication with mainstream inverters ■ Built-in WiFi Smart Module Technical Data LP18-24200 LP18-48100 LP18-48200 Nominal Voltage 25.6V 51.2V Nominal Capacity 200Ah 100Ah 200Ah Nominal energy 5120Wh 5120Wh 10240Wh Max. output power 3.5KW 5KW 7.5KW Life Cycles 6000 cycles @ 80% DOD, 25°C Recommended Charge Voltage 29.2V 58.4V Recommended Charge Current 40A 20A 40A End Of Discharge Voltage 22V 44V Standard Method Charge 40A 20A 40A Discharge 100A 50A 100A Maximum Continuous Current Charge 150A 100A 150A Discharge 150A 100A 150A BMS Cut-Off Voltage Charge 29.2 V (3.65V/Cell) 58.4 V (3.65V/Cell) Discharge 22.0V(2.75V/Cell) 32.0V(2.0V/Cell) Temperature Charge 0~ 45°C Discharge -10~55°C Storage Temperature -5~35°C Shipment voltage ≥25.6V ≥51.2V Module Parallel Up to 15 units Communication CAN2.0/RS232/RS485 IP Protection level IP21 Case Material SPCC Machine Dimension (W*H*D) (mm) 486.5*225*479 625.5*152*479 686.5*225*479 Package Dimension (W*H*D) (mm) carton box 557*301*547 688*227*557 non wooden box 555*410*565 696*335*565 759*391*569 N.W (kg) 44 45 80 G.W (kg) carton box 48 48 non wooden box 57 58 97 * Variations in dimensions and weights may occur due to production batches. Charge Retention And Capacity Recovery Capability Standard charge the battery, and then put aside at room temperature for 28d or 55°C for 7d, Charge retention rate≥90%, Recovery rate of charge≥90% Warranty 5 years Certification & Standards CE-EMC(EN 61000-6-3: 2007 A1: 2011 AC: 2012 EN IEC 61000-6-1: 2019); IEC62619:2017; IEC62619:2022; UN38.3/ MSDS
