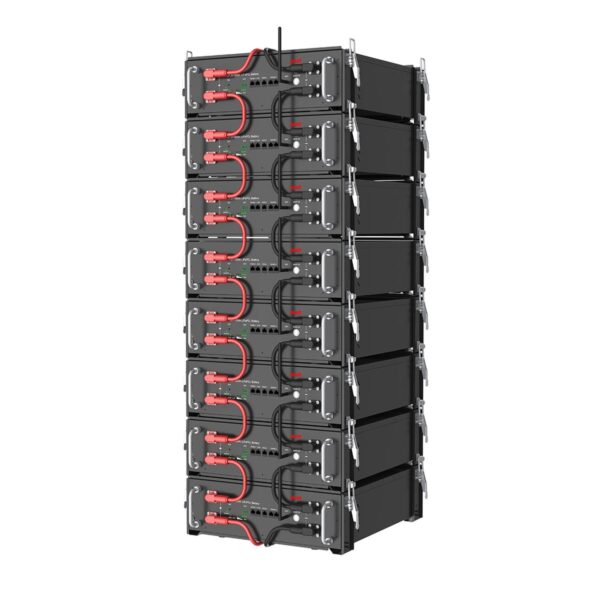

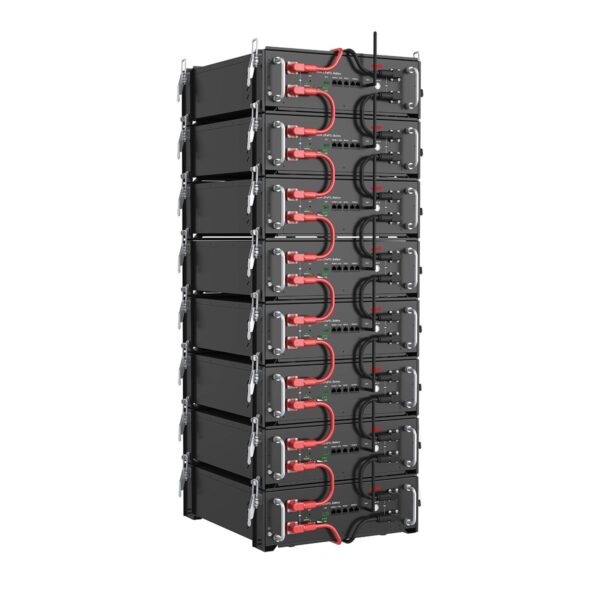

■ 19 inches rack standard ■ Standard warranty: 10 years ■ A simpler stacking bracket can be used to form a battery system (optional) ■ Built-in WiFi Smart BMS Module ■ 7000 cycles @ 80% DOD, 25°C ■ Large capacity, high power output ■ Safest lithium iron phosphate battery cell with high energy density ■ Supports up to 16 units in parallel ■ High integration, saving installation cost and simplifying the wiring ■ Built-in circuit breaker for over-current protection ■ Perfect compatibility: support CAN & RS485 communication with mainstream inverters Technical Data LP29-48100 LP29-48200 Nominal Voltage 51.2V Nominal Capacity 100Ah 200Ah Nominal Energy 5120Wh 10240Wh AC Internal Impedance ≤30.0mΩ Standard Charging Constant current 50.0A 100.0A Constant voltage 56.8V 56.8V End current (Cut off) 5A 10A Standard Discharging Constant current 50A 150A Cut off voltage 43.2V 43.2V Charging Voltage Range 56.8~57.6V 56.8~57.6V Max. Continuous Charging Current 100.0A 150.0A Max. Output Power 5KW 7.5KW Parallel connection Up to 16 units Communication Port RS485, CAN, WIFI(optional) Power cable connectors ESS-120A-25-B/S Operation Temperature Charging temperature 0~50°C Discharging temperature -10~50°C Relative Humidity 5%~95% (No Condensation) Storage Temperature -5°C~35°C Installation Mode Rack (19”) installation Rack (19”) installation Machine Dimension (W*H*D (mm) 440*133*470 / Package Dimension (W*H*D) (mm) / / N.W (kg) ≈44.5 / G.W (kg) / / * Variations in dimensions and weights may occur due to production batches. Altitude ≤4000m Warranty 10 years Certification & Standards CE-EMC(EN 61000-6-3: 2007 A1: 2011 AC: 2012 EN IEC 61000-6-1: 2019); IEC62619:2017; IEC62619:2022; UN38.3/ MSDS
