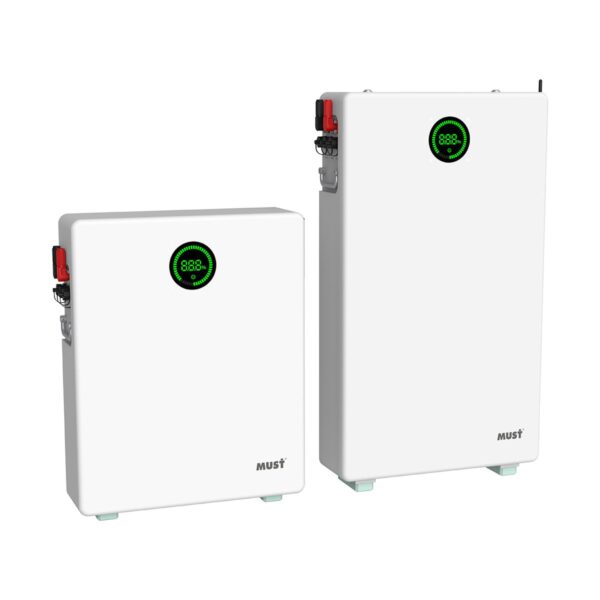

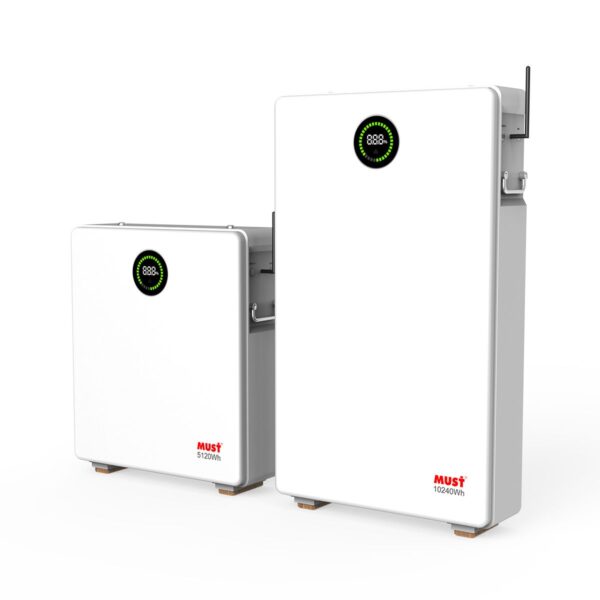

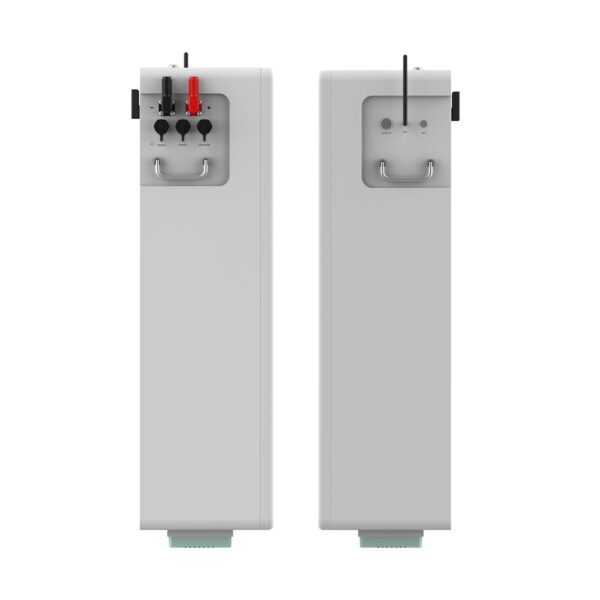

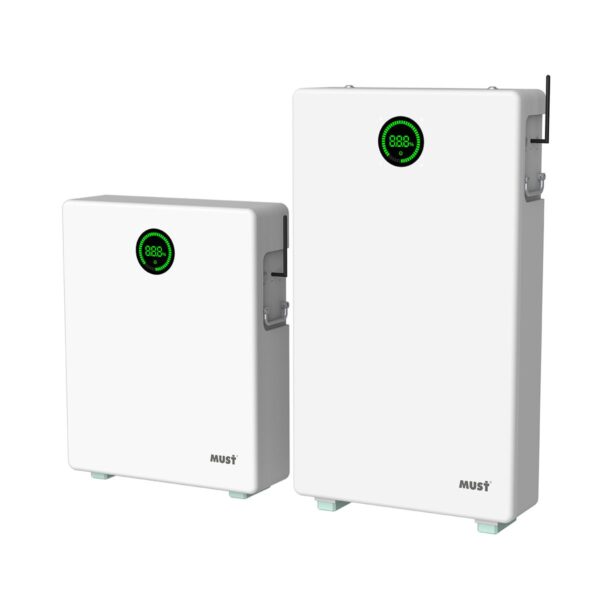

�� Model Configurations 51.2V: 100Ah / 200Ah / 300Ah Capacities: 5.12kWh / 10.24kWh / 15.36kWh Max. Output Power: 5KW / 6KW / 10KW ✅ Key Features ■ Wall-mounted or Floor-mounted installation flexibility ■ IP65-rated protection for indoor and outdoor use ■ 6000 cycles @ 80% DOD, 25°C for long-term reliability ■ Parallel up to 15 units for larger system capacity ■ Smart BMS with LCD and WiFi module for remote monitoring ■ Optional parallel kit for easier capacity expansion ■ CAN & RS485 communication for seamless inverter integration ■ 10-year standard warranty ensures peace of mind ■ High energy density and safe LiFePO₄ chemistry ⚡ Ideal For • Home solar storage systems • Residential backup power • Hybrid inverter energy setups • Villas, cabins, and smart homes Engineered for safety, flexibility, and performance, the LP2800 Series is your perfect match for sustainable home energy storage. Technical Data LP28-48100 LP28-48200 LP28-48300 ELECTRICAL Nominal Voltage 51.2V Nominal Capacity 100Ah 200Ah 300Ah Operating Voltage Range 43.2 ~ 56.8V Max. Charging Current 100A Max. Output Power 5KW 6KW 10KW GENERAL Nominal Energy 5120Wh 10240Wh 15360Wh Usable Energy 5120Wh 10240Wh 15360Wh Scalability Max. 15 in parallel (76.8kWh) Max. 15 in parallel (153.6kWh) Max. 15 in parallel (230.4kWh) Design life 10 Years at 25°C 10 Years at 25°C 10 Years at 25°C Cycles life >6000 at 25°C >6000 at 25°C >6000 at 25°C OPERATING Charge Temperature 0~50°C Discharge Temperature -20~60°C Storage Temperature -5~35°C Humidity 5%~95% RH (No Condensation) Altitude ≤ 4000m Ingress Protection IP65 Install location Indoor or outdoor without sunlight exposure Installation Mode Floor-mounted/ Wall-mounted Floor-mounted Floor-mounted Communication Interface CAN/ RS485/ WIFI/ BLE Compatible Inverters Compatible with over 25 mainstream inverter brands Warranty 10 years MECHANICAL Machine Dimension (W*H*D (mm) 500*620*175 500*892.5*150 500*980*250 Package Dimension (W*H*D) (mm) (wooden box) / / 1050*435*625 N.W (kg) ≈51 ≈92 / G.W (kg) (wooden box) / / / * Variations in dimensions and weights may occur due to production batches. CERTIFICATION & STANDARDS UN38.3, EN 61000-6-1, EN 61000-6-3, IEC62619
