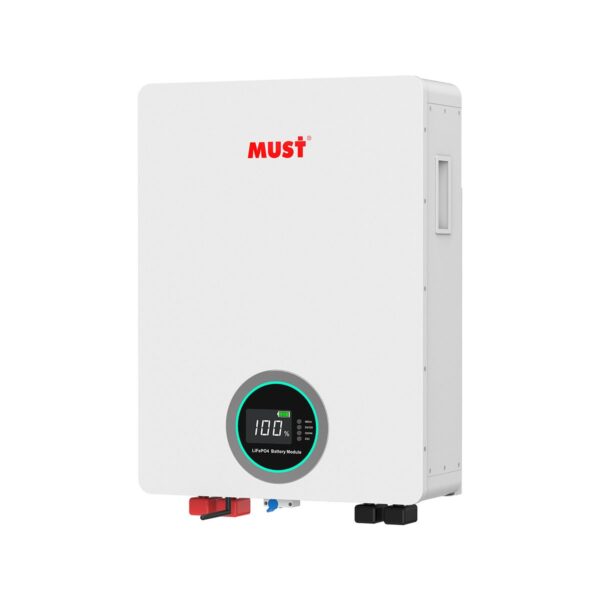

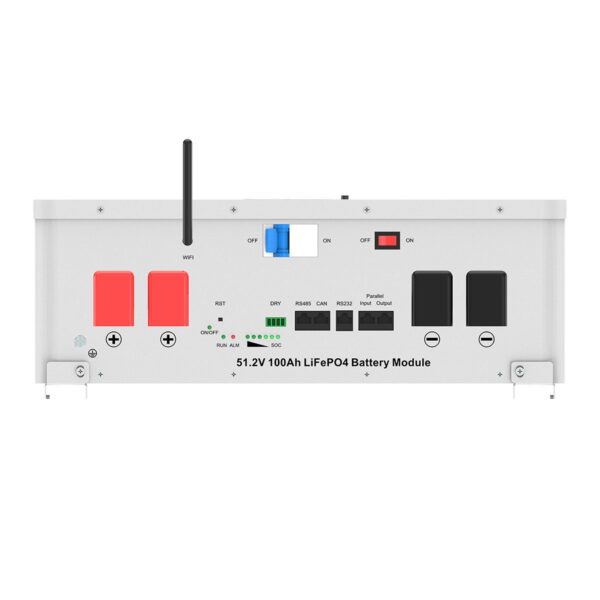

�� Voltage & Capacity Options: 25.6V: 100Ah / 200Ah / 300Ah → 2.56 / 5.12 / 7.68 kWh 51.2V: 100Ah / 200Ah → 5.12 / 10.24 kWh ✅ Key Features: All-in-one 3-in-1 design: Wall-mounted, Stacked, or Rack-mounted Modular: Up to 40 units in parallel Max output power: 2.5KW to 5KW Smart WiFi BMS with LCD display Long lifespan: 6000 cycles @ 80% DOD, 25°C CAN & RS485 communication compatibility Sleek and durable casing for modern energy setups Ideal for residential solar systems, mobile stations, backup energy needs ⚡ Ideal For • Residential solar ESS • Commercial backup systems • Off-grid power stations • Modular rack systems and hybrid inverter setups The LP1600 Series brings safety, scalability, and smart control into one powerful energy storage solution — made to evolve with your energy needs. Technical Data LP16-24100 LP16-24200 LP16-24300 LP16-48100 LP16-48200 LP16-48300 LP16-48320 Nominal Voltage 25.6V 51.2V Nominal Capacity 100Ah 200Ah 300Ah 100Ah 200Ah 300Ah 320Ah Nominal energy 2560Wh 5120Wh 7680Wh 5120Wh 10240Wh 15360Wh 16384Wh Max. output power 2.5KW 3.5KW 5KW 5KW 7.5KW 10KW 7.5KW Life Cycles 6000 cycles @ 80% DOD, 25°C Recommended Charge Voltage 29.2V 58.4V Recommended Charge Current 20A 40A 60A 20A 40A 60A 60A End Of Discharge Voltage 22V 44V Standard Method Charge 20A 40A 60A 20A 40A 60A 60A Discharge 50A 100A 150A 50A 100A 150A 100A Maximum Continuous Current Charge 100A 150A 200A 100A 150A 200A 150A Discharge 100A 150A 200A 100A 150A 200A 150A BMS Cut-Off Voltage Charge 29.2 V (3.65V/Cell) 58.4 V (3.65V/Cell) Discharge 22.0V (2s) (2.75V/Cell) 44.0V (2.75V/Cell) Temperature Charge 0~50°C Discharge -20~60°C Storage Temperature -5~35°C Shipment Voltage ≥25.6V ≥51.2V Safety Function Over-charge, Over-discharge, Over-current, Low/High-temperature, Short-circuit Protections Module Parallel Up to 40 units Communication CAN2.0/RS232/RS485 IP Protection level IP21 Case Material SPCC Installation Mode Wall-mounted, Stacked-mounted, Rack-mounted(optional) Vertical-mounted Machine Dimension (W*H*D) (mm) 442*485.5*177 442*486.5*250 442*495*230 442*625.5*177 442*686.5*250 490*923*265 Package Dimension (W*H*D) (mm) carton box 557*227*547 557*300*547 / 688*227*557 non / wooden box 555*340*565 555*410*565 600*570*405 700*570*350 759*405*569 1000*450*565 N.W (kg) 27 44 68 45 80 117 G.W (kg) carton box 30 48 / 48 non / wooden box 40 57 85 58 97 137 * Variations in dimensions and weights may occur due to production batches. Charge Retention And Capacity Recovery Capability Standard charge the battery, and then put aside at room temperature for 28d or 55°C for 7d, Charge retention rate≥90%, Recovery rate of charge≥90% Warranty 5 years Certification & Standards CE-EMC (EN 61000-6-3: 2007 A1: 2011 AC: 2012 EN IEC 61000-6-1: 2019) IEC62619-1:2018; IEC62619:2022; IEC62619:2017; UN38.3/ MSDS
