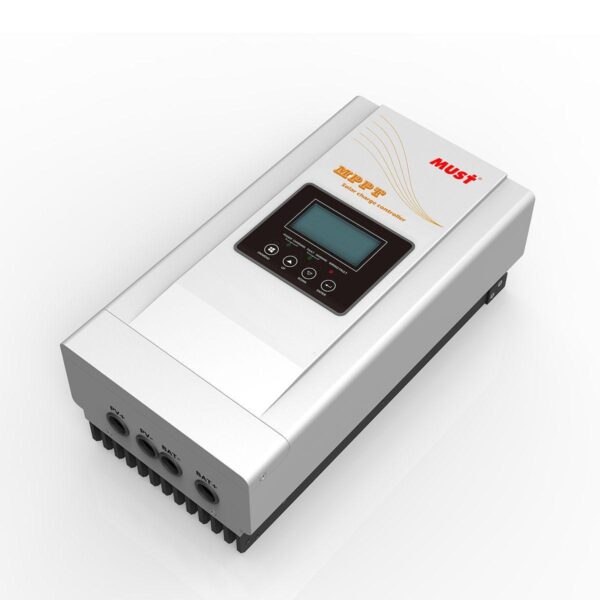

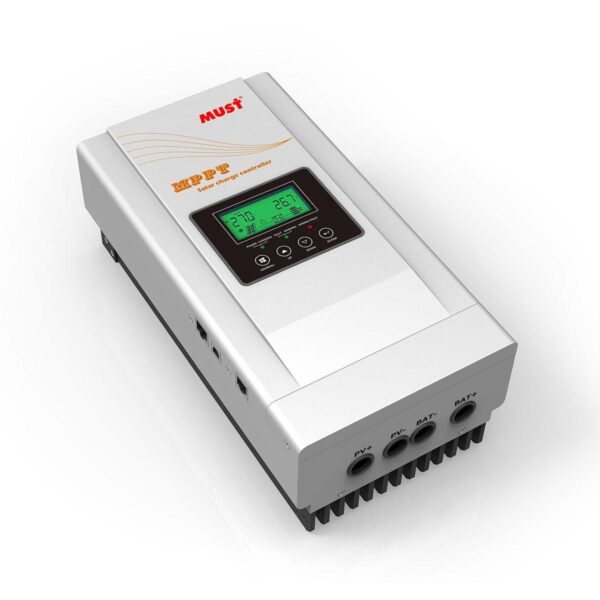

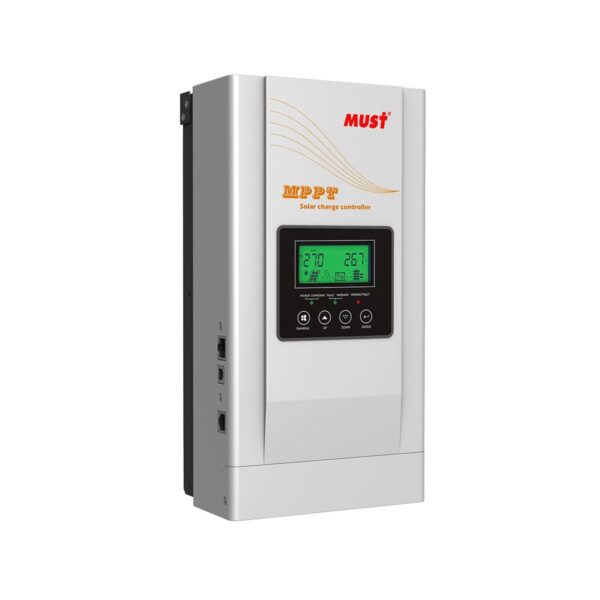

PC1800A Series (60/80A)

■ LCD display , easy to operate on LCD screen ■ Multi stage charging (3-stage charging , parallel charging and equalized charging function) ■ BTS – Battery remote temperature sensor terminal ■ Enable to charge Li-thium, Gel , lead-acid battery ■ With RS485 & USB communication port ■ Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit MODEL PC18-6015A PC18-8015A Nominal Battery System Voltage 12V / 24V / 48VDC (Auto detection); 36V (Setting) ELECTRICAL SPECIFICATIONS Maximum Battery Current 60Amps 80Amps Battery Voltage 12V/ 24V/ 36V/ 48V Maximum Solar Input Voltage 12V (VBAT) 100V 24V (VBAT) 145V 36V (VBAT) 145V 48V (VBAT) 145V PV Array MPPT Voltage Range 12V (VBAT) 15~95V 24V (VBAT) 30~130V 36V (VBAT) 45~130V 48V (VBAT) 60~130V Maximum Input Power 12V (VBAT) 940W 1250W 24V (VBAT) 1880W 2500W 36V (VBAT) 2820W 3750W 48V (VBAT) 3760W 5000W Protections Solar high voltage disconnect; Solar high voltage reconnect; Battery high voltage disconnect; Battery high voltage reconnect; High temperature disconnect;High temperature reconnect BATTERY CHARGING Charging Algorithm 3-Step or 4-Step (Li) Temperature Compensation Coefficient -5mV / °C/ cell (25°C ref.) Temperature Compensation Set Points Absorption, Float Charging Set Points Flooded Battery Absorption Stage 14.2V/ 28.4V/ 42.6V/ 56.8V Float Stage 13.7V/ 27.4V/ 41.1V/ 54.8V AGM/ GEL/ LEAD Battery (Default) Absorption Stage 14.4V/ 28.8V/ 43.2V/ 57.6V Float Stage 13.7V/ 27.4V/ 41.1V/ 54.8V Over-charging Voltage 15.5V / 30.0V / 45.0V / 60.0V Over-charging Comeback Voltage 14.5V / 29.5V / 44.5V / 59.0V Battery Defect Voltage 10.0V / 17.0V / 25.5V / 34.0V MECHANICAL & ENVIRONMENT Machine Dimension (W*H*D)(mm) 315*160*135 Package Dimension (W*H*D)(mm) / N.W(kg) / G.W(kg) / Operating Temperature Range -10°Cto 55°C Storage Temperature -40°Cto 75°C Humidity 0%~90% RH (No condensing) Enclosure IP20 CERTIFICATION & STANDARDS UKCA (BS IEC62109-1:2010) CE-LVD(EN IEC62109-1:2010) CE-EMC LVD (EN6100-6-3:2007 A1:2011,EN6100-6-1:2019 EN IEC62109-1:2010)
