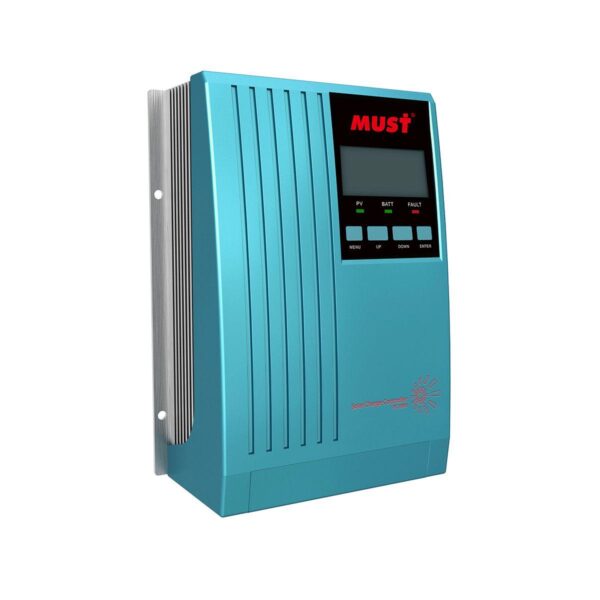

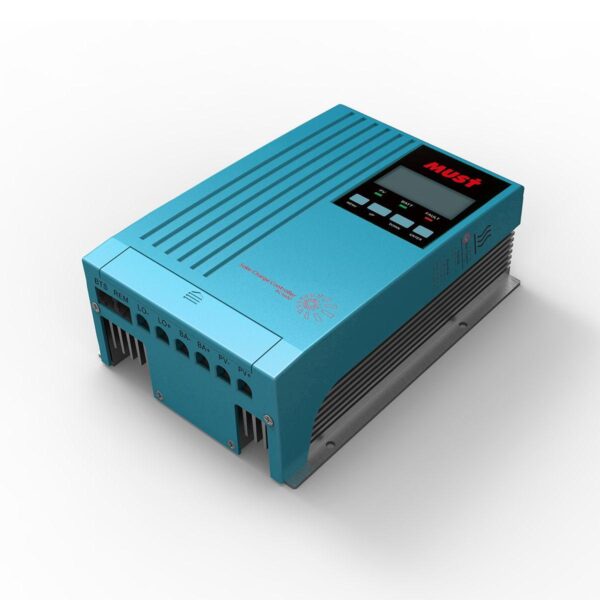

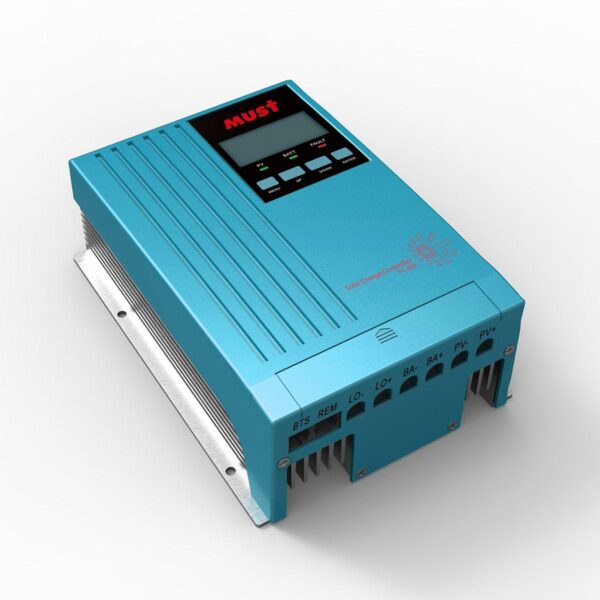

PC1600A Series (20/30/40A)

■ LCD display , easy to operate on LCD screen ■ Multi stage charging (3-stage charging , parallel charging and equalized charging function) ■ BTS – Battery remote temperature sensor terminal ■ Enable to charge Li-thium, Gel , lead-acid battery ■ With RS485 & USB communication port ■ Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit MODEL PC16-2015A PC16-3015A PC16-4015A Nominal Battery System Voltage 12VDC / 24VDC (Auto Detection) CONTROLLER INPUT PV Open Circuit Voltage 12V 100VDC 24V 145VDC PV Array MPPT Voltage Range 12V 16VDC~100VDC 24V 32VDC~130VDC Max PV Input Power 12V 300W 450W 600W 24V 600W 900W 1200W BATTERY Absorption Voltage 12V 12.5VDC 24V 25.0VDC Refloat Voltage 12V 13.7VDC 24V 27.4VDC Float Voltage 12V 14.3VDC 24V 28.6VDC Low Voltage Protection Point 12V 10.0VDC 24V 20.0VDC DC OUTPUT Output Voltage 12V 10.0~14.5VDC 24V 20.0~29.0VDC Peak Conversion Efficiency 98%(MPPT Efficiency 99%) Max Charging Current 20 amps continuous 30 amps continuous 40 amps continuous Max Output Current 20 amps continuous 20 amps continuous 20 amps continuous Low Voltage alarm 12V 10.25VDC 24V 20.5VDC Low Voltage cut off 12V 10.0VDC 24V 20.0 VDC Low Voltage Recovery 12V 11.0VDC 24V 22.0VDC DISPLAY & PROTECTION LED Indication Systematic operation, LV indication, LV protection, Over charge protection Loads protection, Short circuit protection LED Display Charge Voltage, Charge Current, Voltage of storage battery, Capacity of storage battery, Output current Alarm Protections PV array short circuit, PV reverse polarity Battery reverse polarity, Over charging protrction Output short circuit protection Low voltage protection for storage battery MECHANICAL SPECIFICATIONS Mounting Wall mount Machine Dimension (W*H*D)(mm) 154*236*88 Package Dimension (W*H*D)(mm) / / / N.W(kg) / G.W(kg) / / / OTHER Environmental Rating Indoor Radiating Mode Automatic cooling Operating Temperature Range 0°C~ 55°C Loading (20GP/40GP/40HQ) 2500pcs / 5000pcs / 5800pcs CERTIFICATION & STANDARDS UKCA (BS IEC62109-1:2010) CE-LVD(EN IEC62109-1:2010) CE-EMC LVD (EN6100-6-3:2007 A1:2011,EN6100-6-1:2019 EN IEC62109-1:2010)
