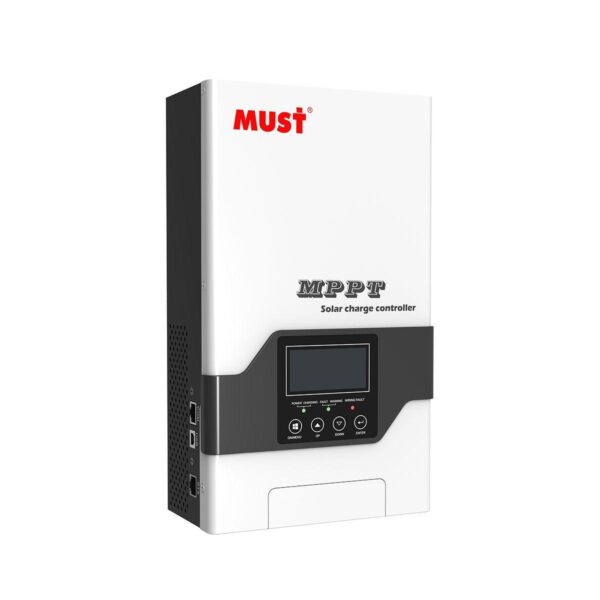

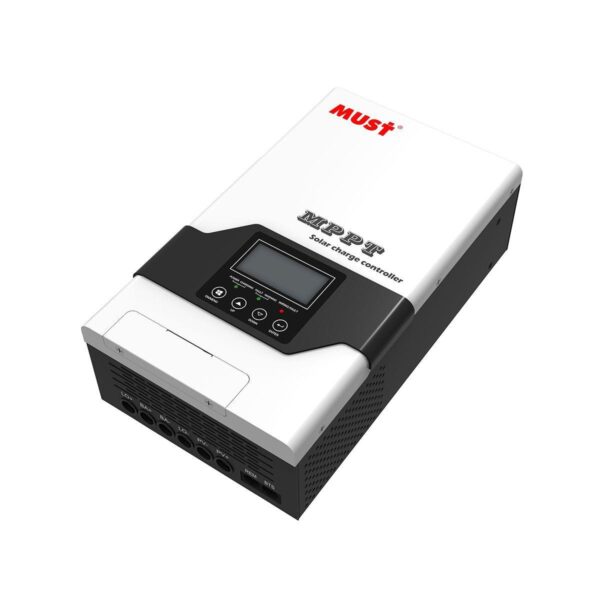

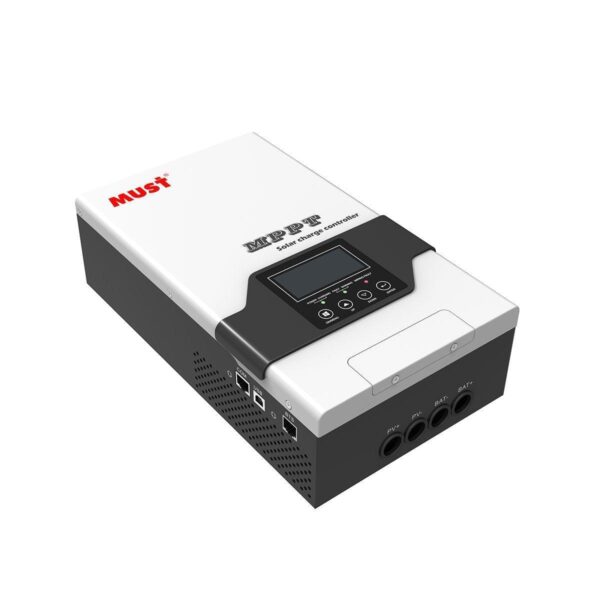

PC1800F Series (60/80/100A)

Features: ■ LCD display , easy to operate on LCD screen ■ Multi stage charging (3-stage charging , parallel charging and equalized charging function) ■ Maximum Solar Input Voltage: 245V ■ BTS – Battery remote temperature sensor terminal ■ Enable to charge Li-thium, Gel , lead-acid battery ■ With RS485 & USB communication port ■ Protection: PV array short circuit, PV reverse polarity, Battery reverse polarity, Over charging, Output short circuit MODEL PC18-6025F PC18-8025F PC18-10025F Nominal Battery System Voltage 12V / 24V / 48VDC (Auto detection); 36V (Setting) CONTROLLER INPUT Battery Voltage 12V / 24V / 36V / 48V Maximum Solar Input Voltage 12V (VBAT) 100V 24V (VBAT) 245V 36V (VBAT) 245V 48V (VBAT) 245V PV Array MPPT Voltage Range 12V (VBAT) 15-95V 24V (VBAT) 30~230V 36V (VBAT) 45~230V 48V (VBAT) 60~230V Maximum Input Power 12V (VBAT) 940W 1250W 1560W 24V (VBAT) 1880W 2500W 3120W 36V (VBAT) 2820W 3750W 4680W 48V (VBAT) 3760W 5000W 6250W BATTERY Charging Set Points Flooded Battery Absorption Stage 14.2V / 28.4V / 42.6V / 56.8V Float Stage 13.7V / 27.4V / 41.1V / 54.8V AGM (Default) Absorption Stage 14.4V / 28.8V / 43.2V / 57.6V Float Stage 13.7V / 27.4V / 41.1V / 54.8V Over-charging Voltage 15.5V / 30.0V / 45.0V / 60.0V Over-charging Comeback Voltage 14.5V / 29.5V / 44.5V / 59.0V Battery Defect Voltage 10.0V / 17.0V / 25.5V / 34.0V Temperature Compensation Conefficient -5mv / °C /cell (25°C vef) Peak Conversion Efficiency 98% (MPPT Efficiency 99%) Maximum Battery Current 60A 80A 100A Maximum DC load current / / 100A Max Charging Current 60amps continuous @ 40°C ambient 80amps continuous @ 40°C ambient 100amps continuous @ 40°C ambient DISPLAY & PROTECTION Protections Solar high voltage disconnect/ Solar high voltage reconnect/ Battery high voltage disconnect Battery high voltage reconnect/ High temperature disconnect/ High temperature reconnect MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) 163.6*306.6*94.9 165*284*97 Package Dimension (W*H*D)(mm) / / N.W(kg) 3 4 G.W(kg) / / OTHER Mounting Wall mount Environmental Rating Indoor Enclosure IP20 Radiating Mode Fan cooling Operating Temperature Range -10~55°C Ambient Humidity 0~90% relative humidity (non-condensing) Altiude ≤3000m CERTIFICATION & STANDARDS UKCA (BS IEC62109-1:2010) CE-LVD(EN IEC62109-1:2010) CE-EMC LVD (EN6100-6-3:2007 A1:2011,EN6100-6-1:2019 EN IEC62109-1:2010)
