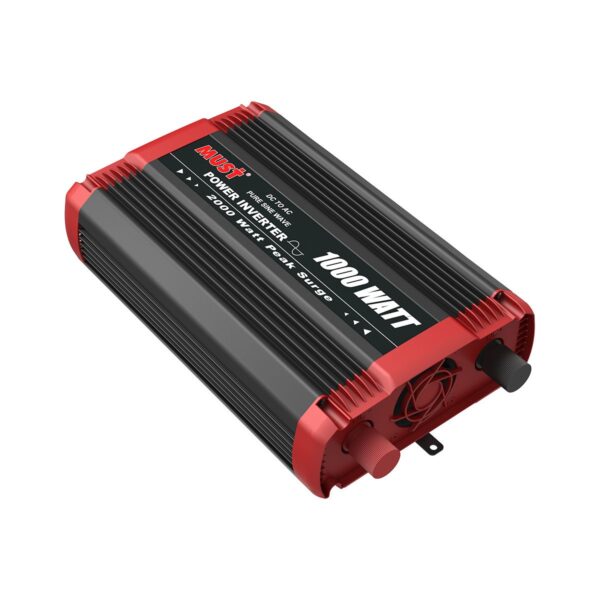

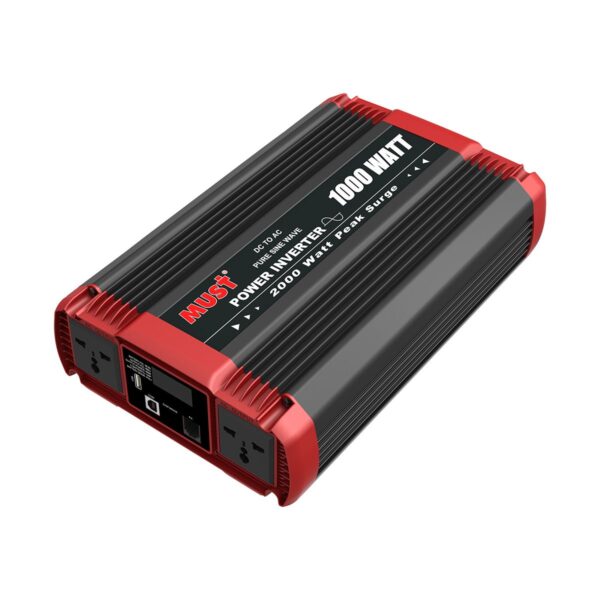

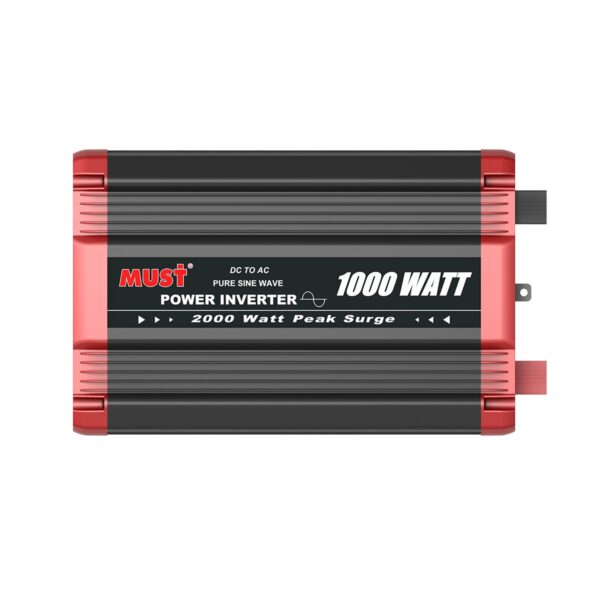

PI1500 Series (600-2000W)

■ Input Voltage 12V / 24V DC optional ■ Output Voltage 230V AC optional ■ Portable power for AC products, AC outlets for connecting multiple loads ■ High efficiency converts virtually all of the battery’s power to AC ■ Mounting brackets for convenient installation ■ Overload and over temperature shut down ■ Low voltage and over voltage alarm/cut off ■ Short circuit protection MODEL PI15-0612 PI15-0624 PI15-1012 PI15-1024 PI15-1512 PI15-1524 PI15-2012 PI15-2024 BATTERY DC INPUT Input Voltage 12VDC 24VDC 12VDC 24VDC 12VDC 24VDC 12VDC 24VDC Low Voltage Protect Delay 2 seconds Low Voltage Warning (PB) 11.5VDC 23.0VDC 11.5VDC 23.0VDC 11.5VDC 23.0VDC 11.5VDC 23.0VDC (LI) 12.0VDC 24.0VDC 12.0VDC 24.0VDC 12.0VDC 24.0VDC 12.0VDC 24.0VDC Low Voltage Protect (PB) 10.5VDC 21.0VDC 10.5VDC 21.0VDC 10.5VDC 21.0VDC 10.5VDC 21.0VDC (LI) 11.6VDC 23.2VDC 11.6VDC 23.2VDC 11.6VDC 23.2VDC 11.6VDC 23.2VDC Low Voltage Restoring (PB) 12.5VDC 25.0VDC 12.5VDC 25.0VDC 12.5VDC 23.0VDC 12.5VDC 23.0VDC (LI) 12.8VDC 25.6VDC 12.8VDC 25.6VDC 12.8VDC 25.6VDC 12.8VDC 25.6VDC Over Voltage Protect (PB) 15.0VDC 30.0VDC 15.0VDC 30.0VDC 15.0VDC 30.0VDC 15.0VDC 30.0VDC (LI) 14.8VDC 29.6VDC 14.8VDC 29.6VDC 14.8VDC 29.6VDC 14.8VDC 29.6VDC Over Voltage Restoring (PB) 14.7VDC 29.4VDC 14.7VDC 29.4VDC 14.7VDC 29.4VDC 14.7VDC 29.4VDC (LI) 14.5VDC 29.0VDC 14.5VDC 29.0VDC 14.5VDC 29.0VDC 14.5VDC 29.0VDC Parameters: (PB) Lead-acid Battery / (Ll) 4 series (12V), 8 series (24V) LiFePO4 Lithium Battery Pack INVERTER AC OUTPUT Default Power 600W 1000W 1500W 2000W Peak Power 1200W 2000W 3000W 4000W Output AC Voltage 230V Output AC Frequency 50Hz Output Wave Pure Sine Wave Output Wave THD < 3% PROTECTION Battery Input Protection Low Voltage Protection, Over Voltage Protection, Reverse Protection Inverter Output Protection Output Overload, Short-Circuit, Over Temperature Protection DISPLAY LED Digital Display Display Battery Voltage, Output Power, Output Voltage, Error Numbers DC OUTPUT USB USB-A type (5V2A) COMMUNICATION PC USB-B type EFFICIENCY Peak Conversion efficiency 91% 90% 88% 90% 88% 90% ENVIRONMENT Protection Degree IP20 Working Environment Indoor Fan cooling Environmental temperature 0~45°C Ambient humidity 20%-90%, No condensation Altitude ≤3000m DIMENSIONS Machine Dimension (W*H*D)(mm) 261*133*79 314*195*80 415*220*82 Package Dimension (W*H*D)(single) 302*205*140 374*267*147 450*296*150 Package Dimension (W*H*D) 629*425*295(8pcs) 773*560*315(8pcs) 630*495*325(4pcs) N.W(kg) (machine) 1.4 2.3 4.6 CERTIFICATION & STANDARDS Coming soon
