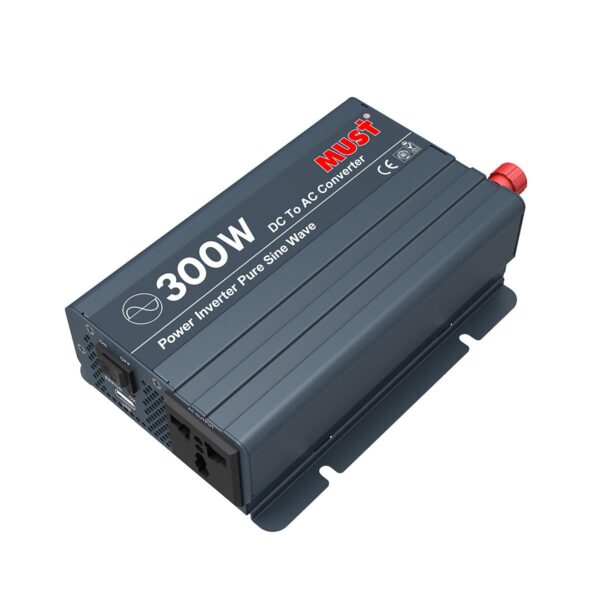

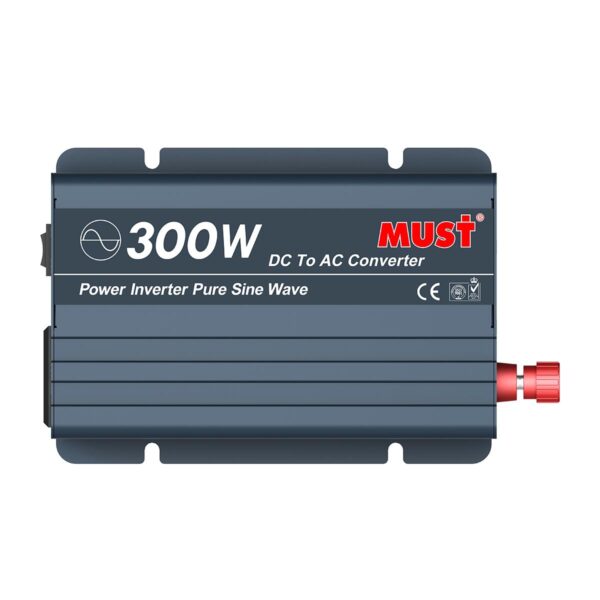

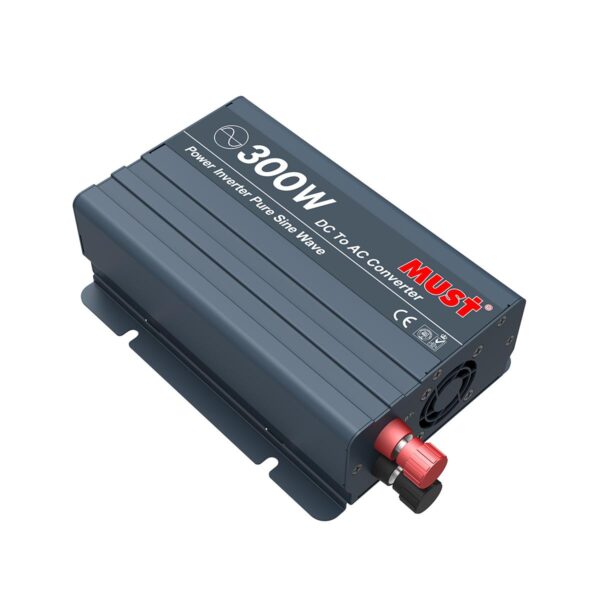

■ Input Voltage 12V / 24V DC optional ■ Output Voltage 230V AC optional ■ Portable power for AC products, AC outlets for connecting multiple loads ■ High efficiency converts virtually all of the battery’s power to AC ■ Mounting brackets for convenient installation ■ Overload and over temperature shut down ■ Low voltage and over voltage alarm/cut off ■ Short circuit protection MODEL PI15-0312 PI15-0324 BATTERY DC INPUT Input Voltage 12VDC 24VDC Low Voltage Protect Delay 2 seconds Low Voltage Warning (PB) 10.5VDC 21.0VDC (LI) 10.5VDC 21.0VDC Low Voltage Protect (PB) 11.5VDC 23.0VDC (LI) 11.5VDC 23.0VDC Low Voltage Restoring (PB) 12.5VDC 25.0VDC (LI) 12.5VDC 25.0VDC Over Voltage Protect (PB) 14.7VDC 29.4VDC (LI) 14.7VDC 29.4VDC Over Voltage Restoring (PB) 15.0VDC 30.0VDC (LI) 15.0VDC 30.0VDC Parameters: (PB) Lead-acid Battery / (Ll) 4 series (12V), 8 series (24V) LiFePO4 Lithium Battery Pack INVERTER AC OUTPUT Default Power 300W Peak Power 600W Output AC Voltage 230V Output AC Frequency 50Hz Output Wave Pure Sine Wave Output Wave THD < 3% PROTECTION Battery Input Protection Low Voltage Protection, Over Voltage Protection, Reverse Protection Inverter Output Protection Output Overload, Short-Circuit, Over Temperature Protection DISPLAY LED Display Red: Error ; Green: System OK LED Digital Display / DC OUTPUT USB USB-A type (5V1A) EFFICIENCY Peak Conversion efficiency 91% ENVIRONMENT Protection Degree IP20 Working Environment Indoor Fan cooling Environmental temperature 0~45°C Ambient humidity 20%–90%, No condensation Altitude ≤3000m DIMENSIONS Machine Dimension (W*H*D) 205*125*61mm Package Dimension (W*H*D) 228*176*102mm N.W (kg) 1kg G.W (kg) 9.3kg (8pcs) CERTIFICATION & STANDARDS CE-EMC LVD (EN6100-6-3, EN6100-6-1 EN IEC62109-1, EN IEC62109-2) CE-LVD(EN 62477-1/A11)
