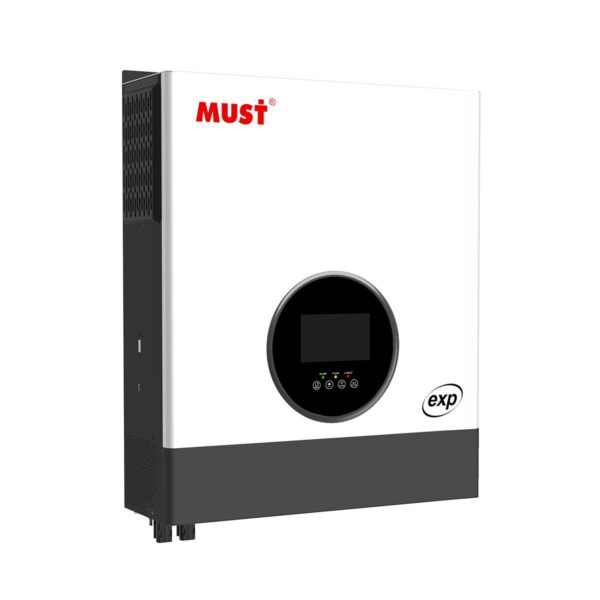

■ Dual output for smart load management ■ Smart color LCD setting (Working modes, Charge Current, Charge Voltage, etc). ■ Built-in Two MPPTs solar charge controller ■ Wide MPPT voltage range is 90~450V, the maximum PV input voltage can reach 500V (450V for parallel) ■ Can provide the power to the load without battery ■ Combining solar system, AC utility, and battery power source to supply continuous power ■ Overload, short circuit and Deep discharge protection ■ With BMS lithium battery communication function ■ With AC/PV lithium battery activation function ■ Support USB, RS485 monitoring function ■ Parallel operation up to 6 units ■ WIFI remote monitoring MODEL PH19-6248 EXP PH19-8048 EXP PH19-10048 EXP PH19-11048 EXP PH19-12048 EXP Default Battery System Voltage 48VDC INVERTER OUTPUT Rated Power 6200VA/6200W 8000VA/8000W 10000VA/10000W 11000VA/11000W 12000VA/12000W Surge Power 12400W 16000W 20000W 22000W 24000W Waveform Pure Sine Wave AC Voltage Regulation (Batt.Mode) 230VAC±5%(Setting) Inverter Efficiency(Peak) 92% Transfer Time 10ms(UPS / VDE4105) / 20ms(APL) AC INPUT Voltage 230VAC Max AC Input Voltage 300VAC Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) Frequency Range 50Hz / 60Hz (Auto sensing) BATTERY Normal voltage 48VDC Floating Charge Voltage 54.8VDC Overcharge Protection 60VDC SOLAR CHARGER & AC CHARGER Maximum PV Array Open Circuit Voltage 500VDC (450V for parallel) Charging Algorithm 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) Maximum PV Array Power 4000W*2 4000W*2 5000W*2 6000W*2 6000W*2 Maximum PV Input Current 18A*2 18A*2 27A*2(40A max) 27A*2(40A max) 27A*2(40A max) PV Array MPPT Voltage Range 90~450VDC (90~430VDC for parallel) Min Battery Voltage For PV charge 34VDC Maximum Solar Charge Current 120A 120A 150A 150A 150A Maximum AC Charge Current 100A 120A 150A 150A 150A Maximum Charge Current 120A 120A 150A 150A 150A MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D) 425*473*145mm 425*527*145mm Package Dimension (W*H*D) / / / / / N.W (kg) / 17.4 17.4 / 17.6 G.W (kg) / / / / / OTHER Humidity 5% to 95% Relativ Humidity (Non-condensing) Operating Temperature Range 0°C~50°C Storage Temperature Range -15°C~60°C Warranty 2 year CERTIFICATION & STANDARDS CE
