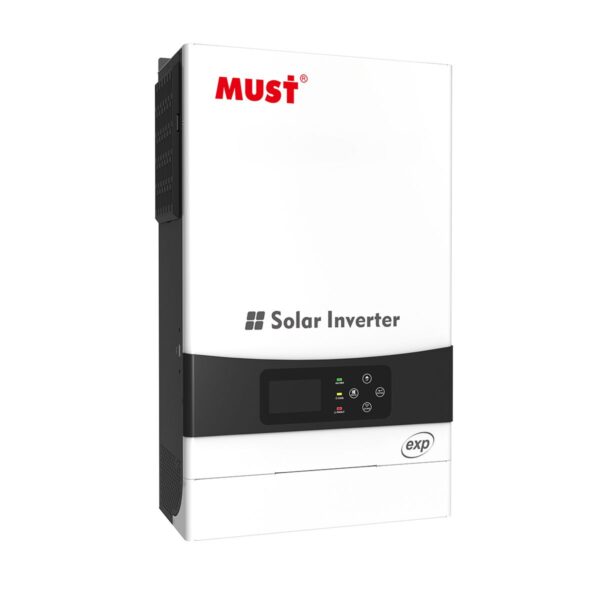

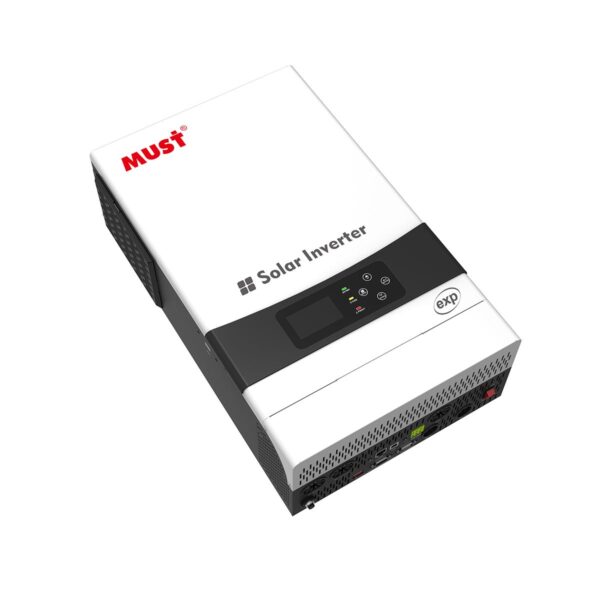

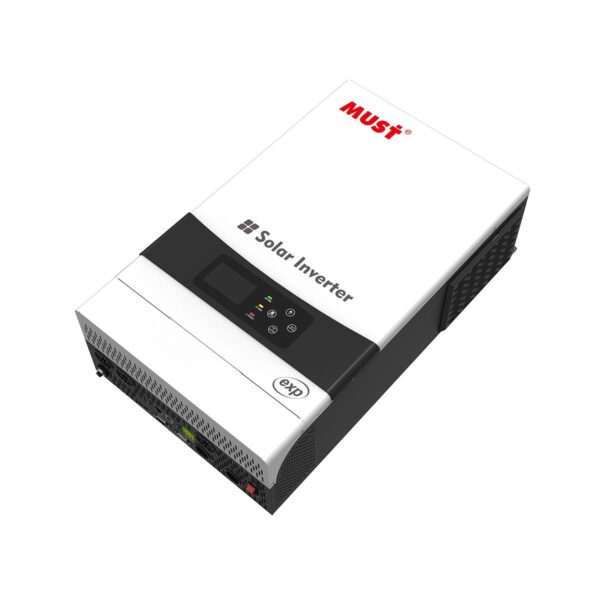

■ Pure sine wave output ■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc). ■ Built-in MPPT solar charge controller ■ MAX PV Array Open Circuit Voltage: 500V ■ Combining solar system, AC utility, and battery power source to supply continuous power ■ Overload, short circuit and Deep discharge protection ■ Cold start function ■ Support USB, RS485 monitoring function ■ Parallel operation with up to 3 units ■ WIFI remote monitoring (optional) ■ With BMS lithium battery communication function ■ With AC/PV lithium battery activation function ■ Dual outputs for smart load management MODEL PH19-4024 EXP PH19-6048 EXP Nominal Battery System Voltage 24VDC 48VDC INVERTER OUTPUT Rated Power 4000VA/4000W 6000VA/6000W Surge Power 8000W 12000W Waveform Pure sine wave AC Voltage Regulation (Batt.Mode) 230VAC±5%(Setting) Inverter Efficiency(Peak) 90% Transfer Time 10ms (UPS / VDE4105) / 20ms (APL) AC INPUT Voltage 230VAC±5% Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) Frequency Range 50Hz / 60Hz(Auto sensing) BATTERY Normal voltage 24VDC 48VDC Floating Charge Voltage 27.4VDC 54.8VDC Overcharge Protection 30VDC 60VDC SOLAR CHARGER & AC CHARGER Maximum PV Array Open Circuit Voltage 500VDC Maximum PV input Current 18A 27A Charging Algorithm 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) Maximum PV Array Power 5000W 6000W PV Array MPPT Voltage Range 90~430 VDC 120~430 VDC Maximum Solar Charge Current 100A 120A Maximum AC Charge Current 80A 100A Maximum Charge Current 100A 120A MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) 322*486*134 309*505*147 Package Dimension (W*H*D)(mm) 600*230*420 603*260*400 N.W(kg) 10.6 12.9 G.W(kg) 12 13.8 OTHER Humidity 5% to 95% Relative humidity (Non-condensing) Operating Temperature 0°C~50°C Storage Temperature -15℃ ~60℃ CERTIFICATION & STANDARDS CE-EMC LVD (EN6100-6-3:2007, EN6100-6-1:2017 EN IEC62109-1:2010, EN IEC62109-2:2011) EN IEC62368-1:2020 A11:2020 EN IEC62368-1:2018 Rohs-(2011/65/EUand2015/863/EU)
