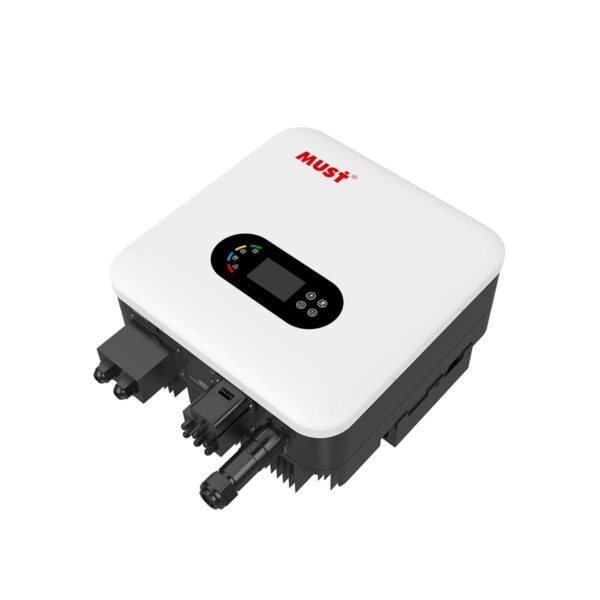

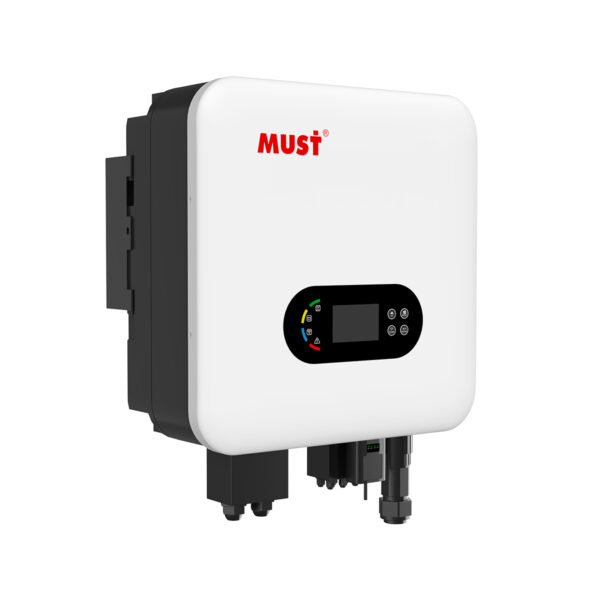

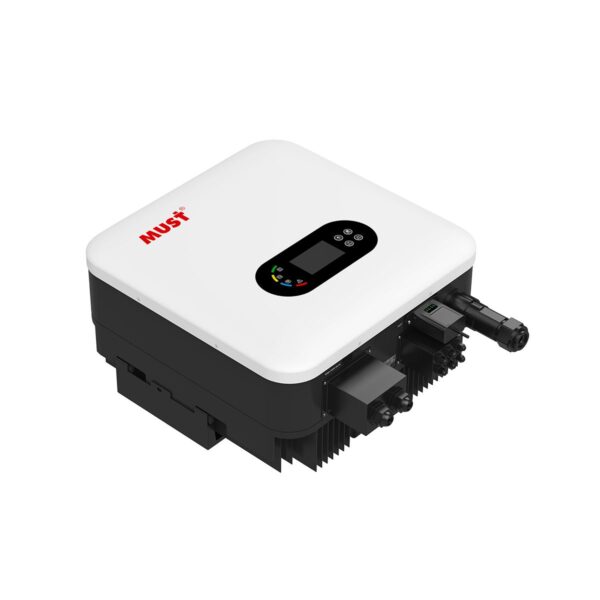

■ LCD LED – user friendly interface ■ IP66 design for outdoor ■ Compatible with other brands of inverter ■ Various work mode for different application scenarios ■ Natural cooling without external fan ■ BMS Function ■ Wifi monitoring ■ UPS level switching time MODEL PH16-4048 PRO PH16-5048 PRO PH16-6048 PRO Rated AC output power 4000W 5000W 6000W Nominal Battery System Voltage 48V INVERTER OUTPUT(AC) Nominal AC output power 4000W 5000W 6000W Nominal output voltage range 220/230/240V;180-280V ±5VAC AC grid frequency range 50/60Hz; 45~55/55-65Hz Nominal output current 17.5A 21.7A 26A Maximum output current 18.1A 22.7A 27.2A Inrush current (spike/duration) 57.5A/5.2us Total harmonic distortion i(THDi) @Nominal Output <3% Power factor at rated power ≈1 Displacement power factor Adjustable from 0. 8 leading to 0. 8 lagging Grid type Single phase BATTERY MODE OUTPUT(AC) Output Rated Power 4000W 5000W 6000W Nominal output voltage; accuracy range 230±1% Output ferequency; accuracy range 50/60Hz (optional)±0.2% Output rated current 17.5A 23A 26A Output waveform Pure sine wave Peak power 6000W/10S 7500W/10S 9000W/10S Total harmonic distortion v (linear load) <3% BATTERY & CHARGER Battery type Lead-acid battery / Lithium battery Battery voltage 48V ±0.3 Battery voltage range 40~60V ±0.3 Charging curve 3-stage adaptive with maintenance Protection Over-current protection / Over-temperature protection Maximum charging power 4000W 5000W 6000W Maximum charging currernt 85A 105A 125A EFFICIENCY Battery discharge (full load) 94.5% Maximum battery charging current efficiency 94.5% PROTECTION DEVICES Grid monitoring Yes Output over current protection Yes Output overvoltage protection-varistor Yes Ground fault monitoring Yes Integrated all-pole sensitive leakage current Yes GENERAL Machine Dimension (W*H*D)(mm) 410*420*215 Package Dimension (W*H*D)(mm) / N.W(kg) 25 G.W(kg) / AC connection Terminal Block Display LED LCD Communication interfaces Wi-Fi/USB/GPRS/RS485/CAN Ingress protection rating IP66 Humidity 0~95% RH(No codensing) Operating temperature range -20°C 60°C With derating above 45°C Cooling concept Natural Noise figure [dB] ≤25 Altitude <3000m CERTIFICATION & STANDARDS CE-EMC LVD (EN IEC61000-6-3: 2007, ENIEC61000-6-1:2017; EN IEC62477-1:2022)
