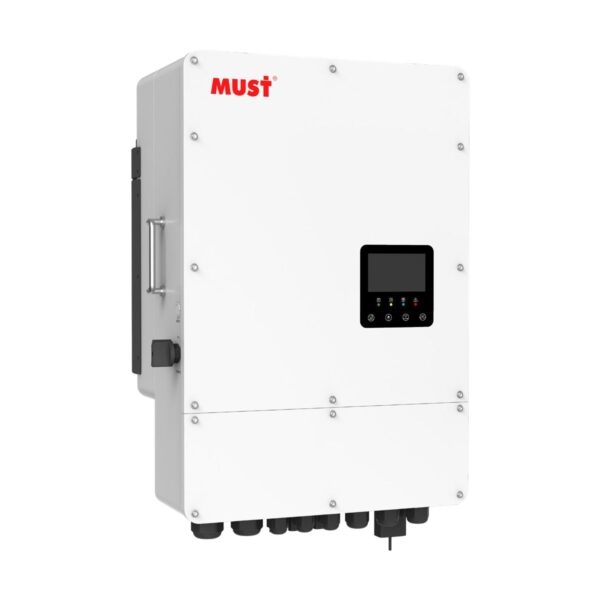

■ Colorful touch LCD ■ IP65 protection degree ■ Max. charging/discharging current of 250A ■ Ac coupling to retrofit existing solar system ■ Max. 16 pcs parallel for on-grid and off-grid operation ■ Support multiple batteries parallel ■ 6 time periods for battery charging/discharging ■ Support storing energy from diesel generator ■ Wifi monitoring MODEL PH11-8KL1-EU PH11-10KL1-EU PH11-12KL1-EU Rated power 8000W 10000W 12000W BATTERY INPUT DATA Battery type Lead-acid battery / Lithium battery Battery voltage range 40~60V Max. Charging Current 190A 220A 250A Max. Discharging Current 190A 220A 250A External Temperature Sensor Yes Charging Curve 3 Stages / Equalization Charging Strategy for Li-Ion Battery Self-adaption to BMS PV STRING INPUT DATA Max. DC Input Power 10400W 13000W 15600W PV Input Voltage(V) 370V (125V~500V) MPPT Range(V) 150~425V Full Load DC Voltage Range 200~425V Start-up Voltage(V) 125V PV Input Current(A) 20 20 26 26 26 26 26 26 No. of MPPT Trackers 2 3 3 No. of Strings Per MPPT Tracker 1 1 1 1 1 1 1 1 AC INPUT/OUTPUT DATA Rated AC Output Power 8000W 10000W 12000W Max AC Output Power 8800W 11000W 13200W AC Input/Output Rated Current 36.4/34.8A 45.5/43.5A 54.6/52.2A Max.AC Input/Output Current 40/38.3A 50/47.9A 60/57.4A Max Continuous AC Passthrough 50A 60A 60A Peak Power (off grid) 2 times of rated power, 10 S Power Factor 0.8 leading – 0.8 lagging AC Output Frequency and Voltage 50/60Hz; 220/230Vac Grid Type Single Phase Total Harmonic Distortion (THDi) <3% (of nominal power) DC Current Injection <0.5% (Rated Current) EFFICIENCY Max. Efficiency 97.6% Euro Efficiency 96.5% MPPT Efficiency >99% PROTECTION Integrated PV Arc Fault Detection, PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection,Over Voltage Category Surge Protection DC Type II/ AC Type III DC Type II/ AC Type II DC Type II/ AC Type II Overvoltage Category DC Type II/ AC Type III DC Type II/ AC Type III DC Type II/ AC Type III GENERAL DATA Operating Temperature Range -40~60°C, >45°C Derating Cooling Smart cooling Noise ≤55dB Communication with BMS RS485/CAN Monitoring mode WiFi/ APP Machine Dimension (W*H*D)(mm) 426*526*255 (Excluding connectors and brackets) 446*576*254 (Excluding connectors and brackets) Package Dimension (W*H*D)(mm) / / N.W(kg) 29 31 G.W(kg) / / Protection Degree IP65 Installation Style Wall-mounted Warranty 5 Year CERTIFICATION & STANDARDS Grid Regulation: IEC 61727/IEC 62116,EN 50549-1; Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
