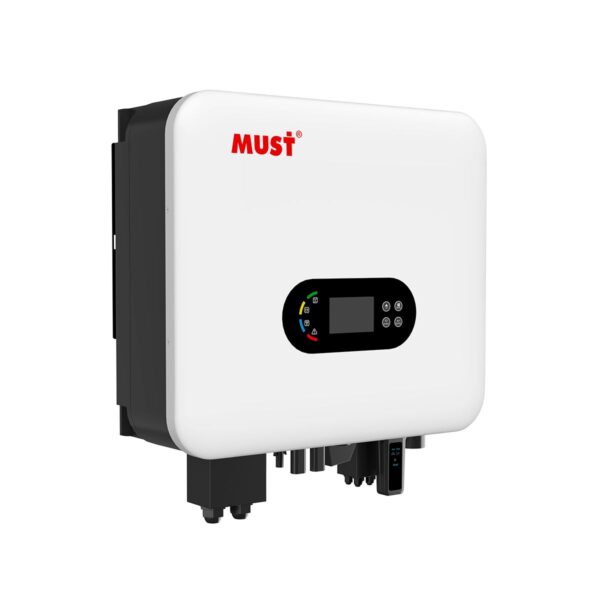

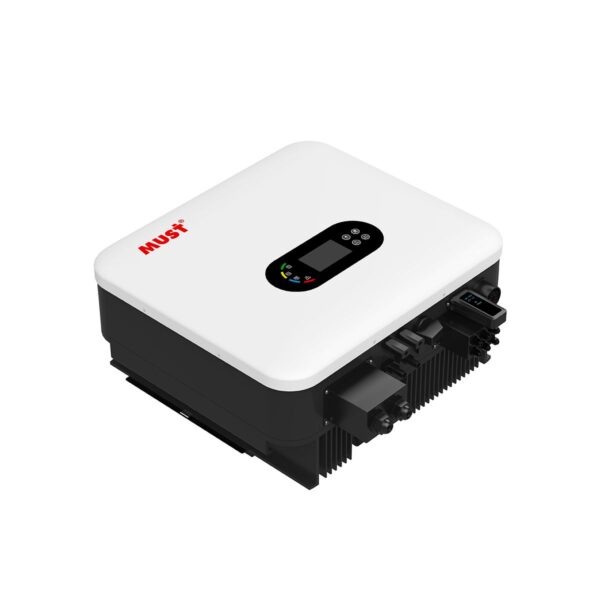

Features: ■ Multiple operation modes: Grid-tie,off grid with storage backup ■ IP65 water-proof and dust-proof ■ MPPT voltage range 120-500V ■ Support LCD display&Smart LCD setting ■ Available Export control CT sensor function ■ Multiple communications:USB,RS485,GPRS and wifi etc ■ Full protection function:Over-voltage,over-frequency, over-current, over-temperature,and AC short-circuit automatic protection ■ Intelligent BMS battery management function ■ Fanless low-noise design ■ Wifi monitoring MODEL PH11-3648 PRO PH11-4048 PRO PH11-4648 PRO PH11-5048 PRO PH11-6048 PRO Rated power 3600W 4000W 4600W 5000W 6000W Nominal Battery System Voltage 48V PV INPUT(DC) Maximum recommended DC power 4000W 5000W 5500W 6000W 7000W Nominal DC operating voltage 360V Maximum DC voltage 500V MPPT voltage range 120V~500V Maximum input current 15A / 15A No.of MPP tracker 2 Strings per MPP tracker 1 INVERTER INPUT/ OUTPUT(AC) Nominal AC input/ output power 3600W 4000W 4600W 5000W 6000W Nominal input/ output voltage; range 220/230/240V;180-280V AC grid frequency; range 50/60Hz; 45~55/55-65Hz Nominal input/ output current 15.6A 17.5A 20A 21.7A 26A Maximum input/ output current 16A 18.1A 20.8A 22.7A 27.2A Inrush current (spike/duration) 57.5A/5.2us Total harmonic distortion i(THDi) <3% Power factor at rated power 1 Displacement power factor 0.8leading~0.8lagging Grid type Single phase BATTERY MODE OUTPUT(AC) Output Rated Power 3600W 4000W 4600W 5000W 6000W Nominal output voltage; accuracy range 230±1% Output ferequency; accuracy range 50/60Hz (optional)±0.2% Output rated current 15.6A 17.5A 20A 21.7A 26A Output waveform Pure sine wave Peak power 5400W,10s 6000W,10s 6900W,10s 7500W,10s 9000W,10s Total harmonic distortion v (linear load) <3% BATTERY & CHARGER Battery type Lead-acid battery / Lithium battery Battery voltage 48V Battery voltage range 40~60V Charging curve 3-stage adaptive with maintenance Protection Over-current protection / Over-temperature protection Maximum charging power 3600W 4000W 4600W 5000W 6000W Maximum charging currernt 75A 85A 95A 100A 125A EFFICIENCY Maximum efficiency 97.1% Euro-efficiency 96.5% MPPT efficiency 99.8% PROTECTION DEVICES DC switch rating for each MPPT; Grid monitoring; Output over current protection; Output overvoltage protection-varistor; Ground fault monitoring; Integrated all-pole sensitive leakage current GENERAL Machine Dimension (W*H*D)(mm) 420*480*215 Package Dimension (W*H*D)(mm) 610*327*595 N.W(kg) 30 G.W(kg) 32 DC connection H4 / MC4 AC connection Terminal Block Display LED LCD Communication interfaces Wi-Fi / USB / GPRS / RS485 Ingress protection rating IP65 Humidity 0~95% RH(No codensing) Operating temperature range -20°C 60°C With derating above 45°C Cooling concept Natural Altitude <3000m CERTIFICATION & STANDARDS CE-EMC LVD (EN6100-6-3: 2007, EN6100-6-1:2017 EN IEC62109-1:2010, EN IEC62109-2:2011); CE-LVD(EN62477-1:2022); IEC60529; EN50549-1:2019 Poland Type A, (NC RfG:2016, PSE:2018, PTPiREE:2021); C10/C11; UNE217001-2020; UNE217002-2020, NTS-631:2021 (Type A); G98 G99
