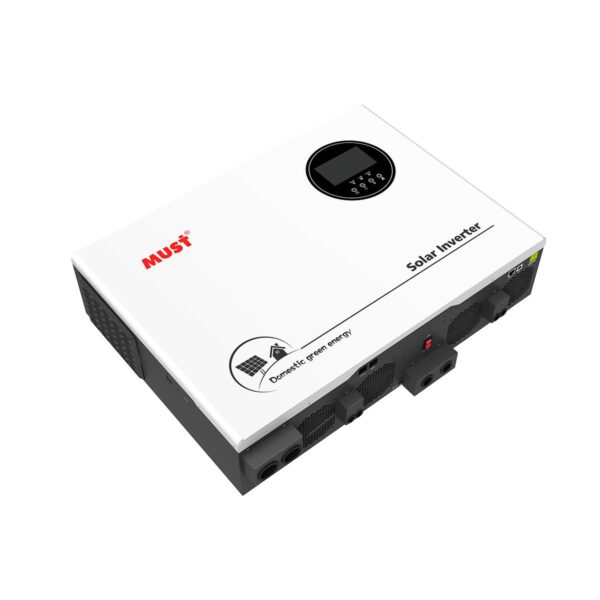

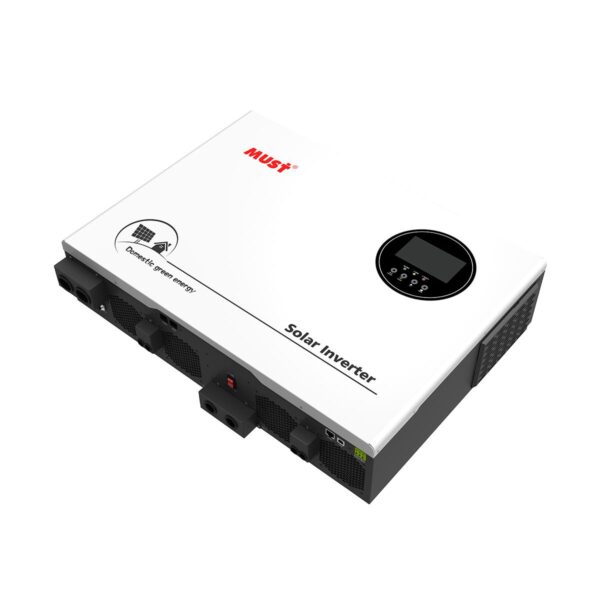

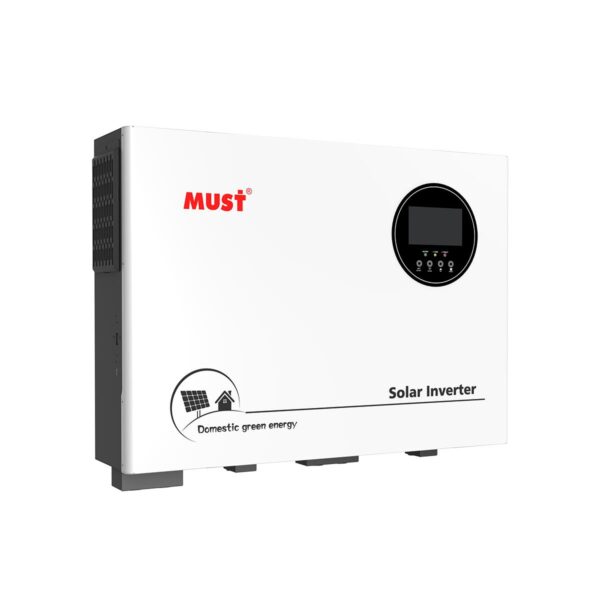

■ Pure sine wave inverter ■ Configurable input voltage range for home appliances and personal computers via LCD setting ■ Configurable battery charging current based on applications via LCD setting ■ Configurable AC/Solar Charger priority via LCD setting ■ Compatible to mains voltage or generator power ■ Auto restart while AC is recovering ■ Overload/ Over temperature/ short circuit protection ■ CAN/RS485 communication for BMS ■ Cold start function ■ WiFi remote monitoring (optional) MODEL PH18-8048 PRO PH18-10048 PRO Nominal Battery System Voltage 48VDC INVERTER OUTPUT Rated Power 8000W 10000W Surge Power 16000W 20000W Waveform Pure Sine Wave AC Voltage Regulation (Batt.Mode) 230VAC±5% Output Frequency 60Hz or 50Hz Inverter Efficiency(Peak) 90% Transfer Time 10ms (UPS) 20ms (APL) AC INPUT Nominal Input Voltage 230VAC Max AC Input Voltage 300VAC Selectable Voltage Range 170~280VAC (UPS) / 90~280VAC (APL) / 184~253VAC(VDE4105) Frequency Range 50Hz / 60Hz(Auto detection) BATTERY Normal Voltage 48VDC SOLAR CHARGER & AC CHARGER AC Charging Current 2-120A 2-160A Maximum PV Array Open Circuit Voltage 450VDC PV Array Open Circuit Voltage 150-430VDC Cold Start Voltage 46VDC Solar Charging Current 80A/80A 100A/100A Default Charging Current 80A/80A Maximum Charge Current 160A 200A Charging Algorithm 3-step (Flooded Battery / AGM / GEL/ LEAD Battery), 4-step(LI) GENERAL DATA FEATURES Operating Temperature -10°C~50°C Storage Temperature -15°C ~60°C Machine Dimension (W*H*D)(mm) 600*503*141.2 Package Dimension (W*H*D)(mm) / N.W(kg) 21 G.W(kg) / Warranty 2 year CERTIFICATION & STANDARDS EN IEC62368-1 CE-LVD (EN IEC62109-1, EN IEC62109-2) Rohs-(2011/65/EUand2015/863/EU) CE-LVD (BS IEC62109-1:2010, BS EN IEC62109-2:2011) UKCA
