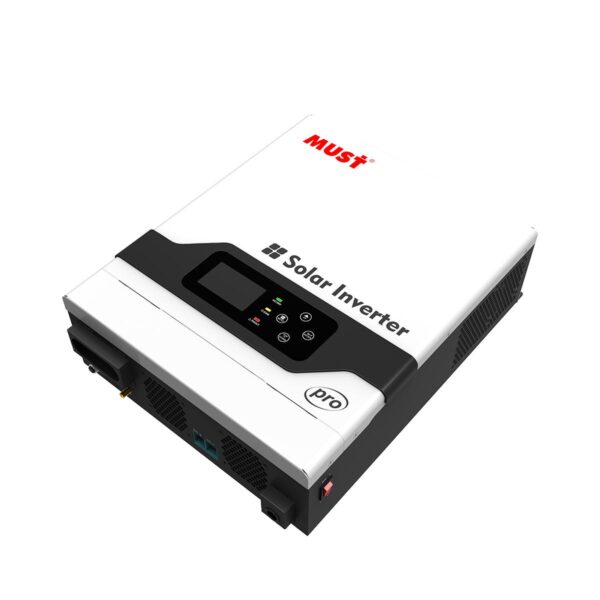

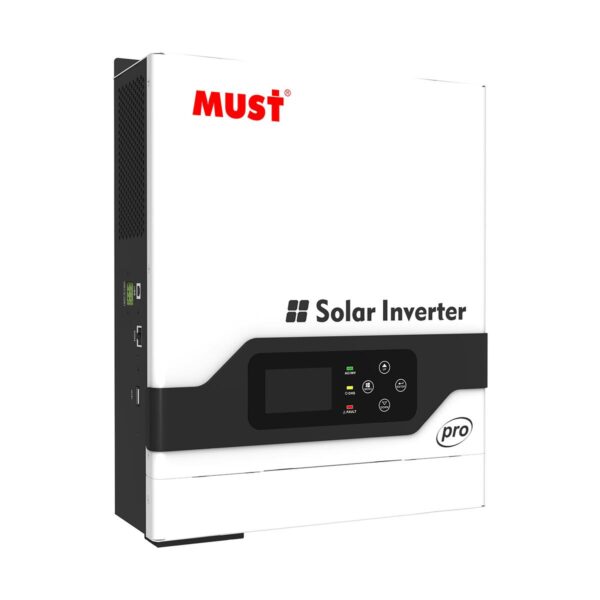

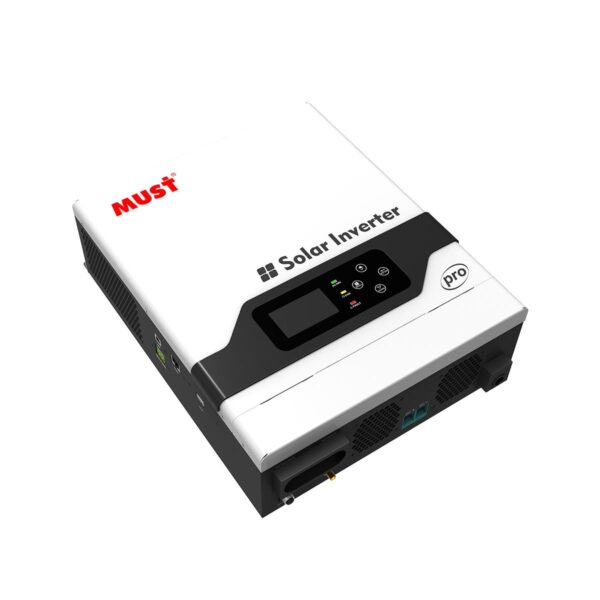

■ Pure sine wave output ■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc). ■ Built-in MPPT solar charge controller ■ MAX PV Array Open Circuit Voltage: 400V ■ Combining solar system, AC utility, and battery power source to supply continuous power ■ Overload, short circuit and Deep discharge protection ■ Cold start function ■ Support USB, RS485 monitoring function ■ WIFI remote monitoring (Built in wifi module and antenna) ■ PV/ AC activation function ■ BMS communication function MODEL PV18-2024 PRO PV18-3224 PRO Nominal Battery System Voltage 24VDC INVERTER OUTPUT Rated Power 2000VA / 2000W 3200VA / 3200W Surge Power 4000W 6400W Waveform Pure sine wave AC Voltage Regulation (Batt.Mode) 230VAC±5%(Setting) Inverter Efficiency(Peak) 90% Transfer Time 10ms (UPS / VDE4105) / 20ms (APL) AC INPUT Voltage 230VAC±5% Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) Frequency Range 50Hz / 60Hz(Auto sensing) BATTERY Normal voltage 24VDC Floating Charge Voltage 27.4VDC Overcharge Protection 30VDC SOLAR CHARGER & AC CHARGER Maximum PV Array Open Circuit Voltage 400VDC Maximum PV input current 18A Charging Algorithm 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) Maximum PV Array Power 3000W 4000W PV Array MPPT Voltage Range 60~320 VDC Maximum Solar Charge Current 80A 100A Maximum AC Charge Current 40A 60A Maximum Charge Current 80A 100A MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) 290*367*111 Package Dimension (W*H*D)(mm) / N.W (kg) / G.W (kg) / OTHER Humidity 5% to 95% Relative humidity (Non-condensing) Operating Temperature 0°C~50°C Storage Temperature -15°C~60°C Warranty 2years MECHANICAL SPECIFICATIONS CE-EMC LVD (EN6100-6-3:2007, EN6100-6-1:2017 EN IEC62109-1:2010, EN IEC62109-2:2011)
