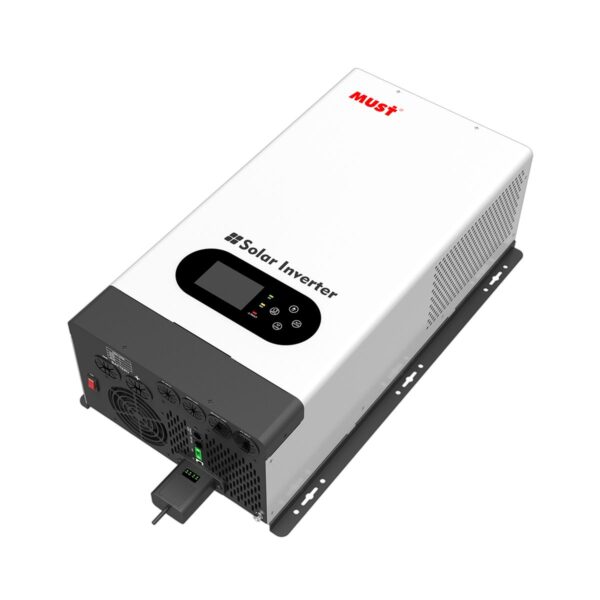

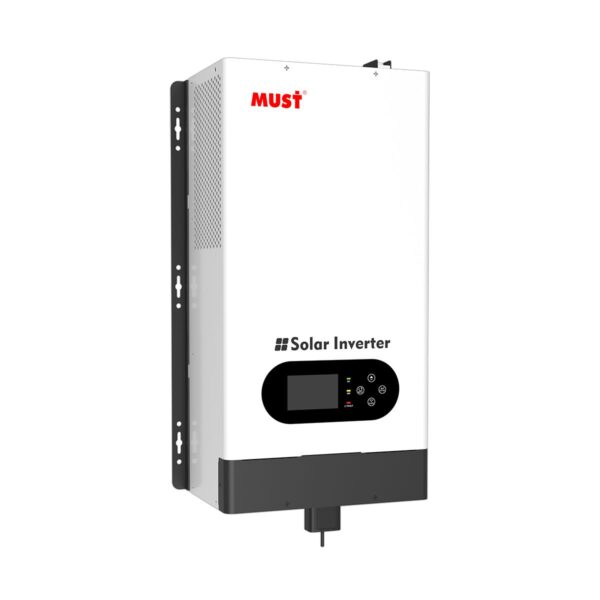

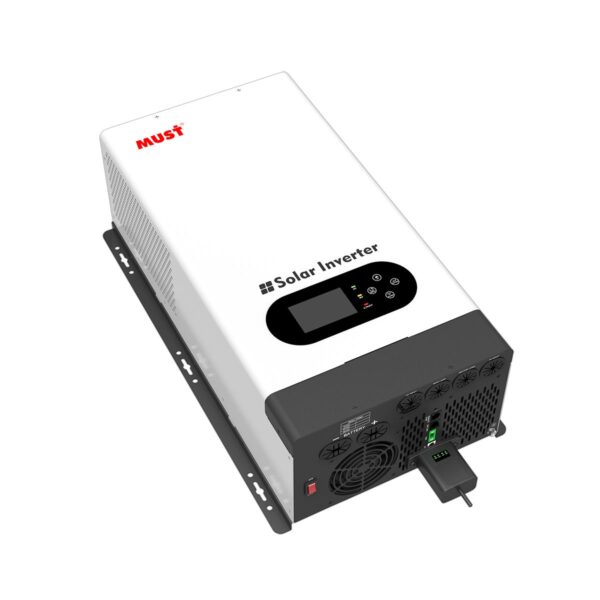

■ 3 Steps charging ■ Overload and short-circuit protection ■ Set charging voltage/charging current ■ Battery low voltage shutdown point can be set to 10/10.5/11/11.5/12V ■ Power-save mode ■ Set utility priority /battery priority ■ Set utility input wide/narrow voltage range ■ Inverter voltage can be set to 220V/230V/240V ■ Inverter frequency can be set to 50Hz/60Hz ■ Set utility charging on/off switch ■ Inbuilt 80A MPPT Solar Charge Controller ■ Acid or Lithium Select ■ WIFI remote monitoring (optional) ■ With BMS lithium battery communication function (CAN port) ■ Dual output for smart load management MODEL PV29-1KW-HP PV29-1.5KW-HP PV29-2KW-HP PV29-3KW-HP PV29-4KW-HP PV29-5KW-HP PV29-6KW-HP Nominal Battery System Voltage 12VDC 24VDC 12VDC 24VDC 12VDC 24VDC 24VDC 48VDC 24VDC 48VDC 48VDC 48VDC INVERTER OUTPUT Rated Power 1 KW 1.5 KW 2 KW 3 KW 4 KW 5 KW 6 KW Surge Rating 3000VA 4500VA 6000VA 9000VA 12000VA 15000VA 18000VA Capable Of Starting Electric Motor 1P 1P 1.5P 2P 3P Waveform Pure sine wave / same as input (bypass mode) Nominal Output Voltage RMS 220V / 230V / 240VAC (±10% RMS) Output Frequency 50Hz / 60Hz ±0.3Hz Inverter Efficiency (Peak) >88% Line Mode Efficiency >95% Power Factor 1.0 Typical Transfer Time 10ms(max) Overload 100% < Load < 110% (alarm 5min then stop output and fault code 07) 110% < Load < 125% (alarm 60s then stop output and fault code 07) Load > 125% (alarm 10s then stop output and fault code 07) AC INPUT Voltage 230VAC Selectable Voltage Range 155~265VAC(For personal computers) Frequency Range 50Hz / 60Hz(Auto sensing) 40~80Hz BATTERY Minimum Start Voltage (10V / 10.5V / 11V / 11.5V/ 12V ) 0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) Low Battery Voltage Alarm (10V / 10.5V / 11V / 11.5V/ 12V ) 0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) Low Battery Voltage Cut Off 10V / 10.5V / 11V / 11.5V/ 12V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) High Battery Voltage Alarm (12-14.5V) 1V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) High Battery Voltage Recover (12-14.5V) 0.5V for 12VDC mode (*2 for 24VDC, *4 for 48VDC) Energy Saving Mode Load ≤50±20W(120V)/100±20W(220V) CHARGER Output Voltage Depends on battery type Overcharge Protection S.D. 15.5VDC for 12VDC mode (*2 for 24VDC mode, *4 for 48VDC mode) Maximum Charge Current 30A 20A 45A 25A 60A 30A 40A 20A 60A 30A 35A 40A PAYPASS & PROTECTION Input Voltage Waveform Sine wave (grid or generator) Nominal Input Frequency 50Hz or 60Hz Overload Protection (SMPS Load) Circuit breaker Output Short Circuit Protection Circuit breaker AC Input Breaker 1-3K/30A 4-6K/50A SOLAR CHARGER Maximum PV Array Power 1250W 2500W 1250W 2500W 1250W 2500W 2500W 5000W 2500W 5000W 5000W 5000W Maximum PV Charge Current 80A±4A DC Voltage 12V/ 24V auto work 24V/ 48V auto work MPPT Range @ Operating Voltage 15~95VDC @ 12V/ 30~230VDC @ 24V 30~230VDC @ 24V/ 60~230VDC @ 48V Maximum PV Array Open Circuit Voltage 245VDC Standby Power Consumption <2W MECHANICAL SPECIFICATIONS Mounting Wall Mount Dimensions (W*H*D) 274*484*174mm 274*568.5*174mm Package Dimensions (W*H*D) 583.5*376*255mm 668.5*376*255mm N.W (kg) / / G.W (kg) / / OTHER Operating Temperature Range 0°C ~ 40°C Storage Temperature -15°C ~ 60°C Audible Noise 60dB MAX Display LED LCD Standard Warranty 2 year CERTIFICATION & STANDARDS CE-EMC LVD (EN6100-6-3:2007, EN6100-6-1:2017 EN IEC62109-1:2010, EN IEC62109-2:2011)
