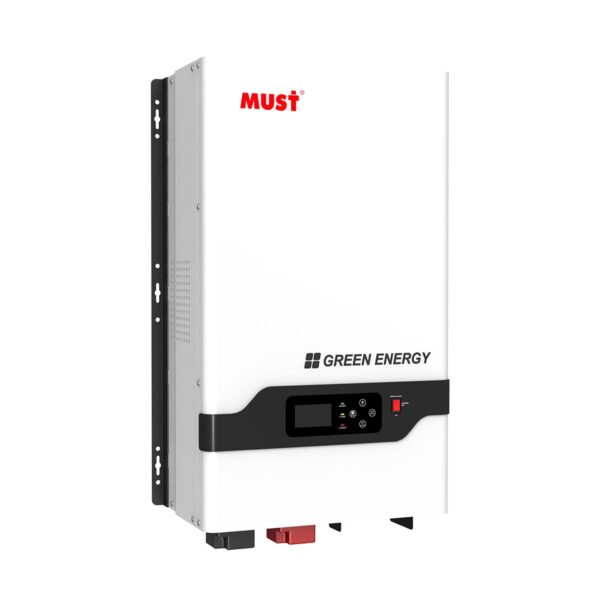

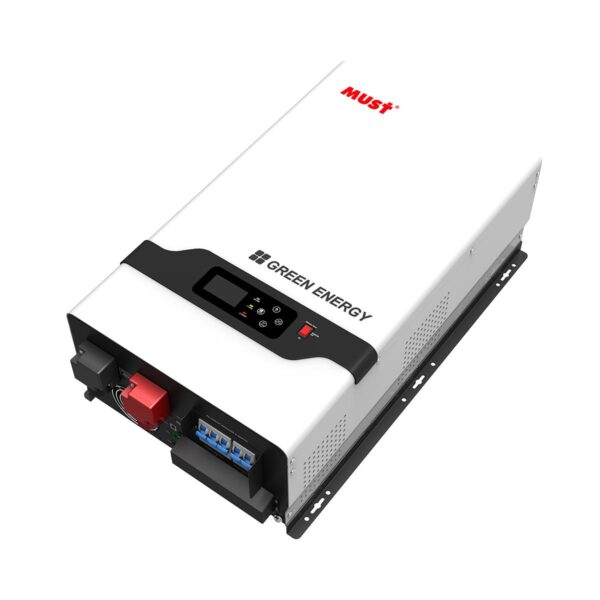

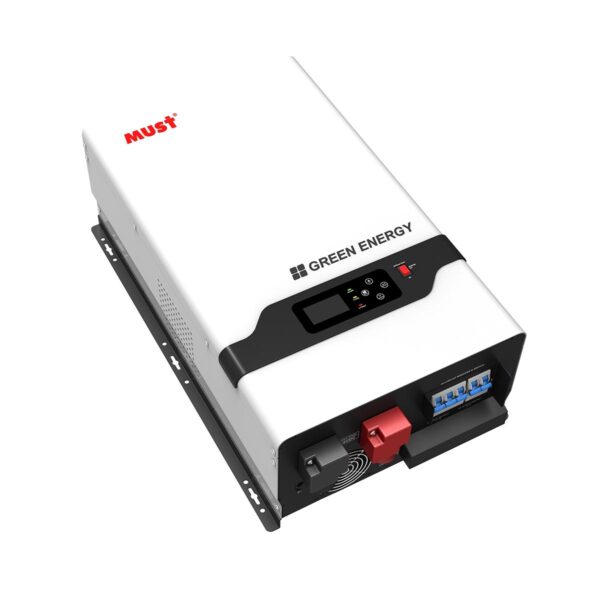

■ Smart LCD setting(Working modes, Charge Current, Charge voltage, etc.) ■ Built-in MPPT solar charge controller 100A/200A ■ MPPT efficiency max 98% ■ Powerful charge rate up to 140Amp ■ Inside BMS function ■ DC start &Automatic Self-Diagnostic Function ■ WIFI / USB monitoring function (wi-fi optional) ■ Supporting AGS, BTS port ■ Compatible to generator MODEL PV36 PRO-8K PV36 PRO-10K PV36 PRO-12K Nominal Battery System Voltage 48VDC 48VDC 48VDC INVERTER OUTPUT Rated power 8.0KW 10.0KW 12.0KW Surge rating 24000VA 30000VA 36000VA Capable of starting electric motor 4HP 5HP 6HP Waveform Pure sine wave / same as input (bypass mode) Nominal output voltage RMS 220V / 230V / 240VAC (±10%RMS) Output frequency 50Hz / 60Hz ± 0.3Hz Inverter effciency(peak) >88% Line mode efficiency >95% Power factor 1.0 Typical transfer time 20ms(max) AC INPUT Voltage 230VAC Selectable voltage range 90-280 VAC (APL) Frequency range 50Hz / 60Hz BATTERY Low battery voltage cutoff 40-48VDC for 48VDC mode Low battery voltage recover 42-50VDC for 48VDC mode High battery voltage cutoff 60VDC for 48VDC mode High battery voltage recover 57VDC for 48VDC mode Power saving mode AC CHARGER Output voltage Depends on battery type Charger AC input breaker rating 80A 100A 100A Overcharge protection S.D. 62.8VDC for 48VDC mode Maximum charge current 100A 120A 140A BTS Continuous output power Yes Variances in charging voltage & S.D. voltage base on the battery temperature BYPASS & PROTECTION Input voltage waveform Sine wave (grid or generator) Nominal input frequency 50Hz or 60Hz Overload protection (SMPS Load) Circuit breaker Output short circuit protection Circuit breaker Bypass breaker rating 80A 100A 100A Max bypass current 36A 45A 54.5A SOLAR CHARGER Maximum PV charge current 100A(200A optional) DC voltage 48V Maximim PV array power 5000W(10000W for 200A optional) MPPT range @ operating voltage(VDC) 64~235VDC Maximum PV array open circuit voltage 245VDC Maximum effciency >98% Standby power consumption <2W MECHANICAL SPECIFICATIONS Mounting Wall mount Dimensions (W*H*D) 674*402*222mm OTHER Operation temperature range 0°C to 40°C Storage temperature -15°C to 60°C Audible noise 60dB MAX Display LED LCD
