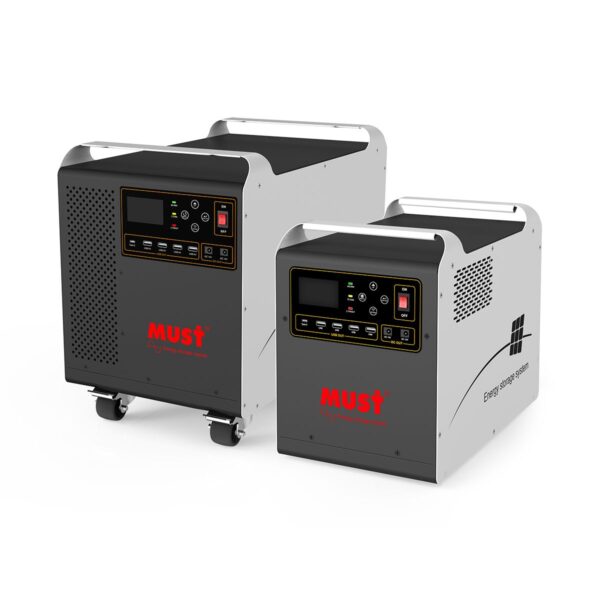

�� Specifications • Output power: 1200W / 2000W / 3000W • DC voltage: 12V / 24V • Battery capacity: 1280Wh – 3200Wh (LiFePO₄) • MPPT solar charger: 60A • PV input voltage: 105V / 160V • 6000 cycles @ 80% DOD, 25°C ✅ Key Features ■ Pure sine wave output – safe for all electronics ■ 6000 charge cycles with high-quality LiFePO₄ battery ■ Multiple DC outputs – plug & play for all your devices ■ Lightweight and portable for home, office, or emergency use ■ Flexible charging via AC wall socket or solar panel ■ Built-in multi-protection system (overload, short circuit, overheating, etc.) ⚡ Ideal For • Work-from-home setups • Outdoor workstations • Office or lab backup power • Emergency energy backup for homes MODEL HBP18-1012 OS HBP18-2024 OS HBP18-3024 OS Nominal Battery System Voltage 12VDC 24VDC 24VDC INVERTER OUTPUT Rated power 1200W 2000W 3000W Output voltage waveform Pure Sine Wave Output voltage regulation 230V ±5% Output frequency 50Hz / 60Hz (±0.2Hz) Peak efficiency 90% Nominal DC input voltage 12V (±0.3) 24V (±0.3) 24V (±0.3) Standby Consumption < 25W PV INPUT Max solar power input 900W 1800W 1800W PV max charging current 60A (±3A) 60A (±3A) 60A (±3A) Combined charging current 70A (±4A) 100A (±4A) 120A (±4A) Max efficiency 98.0% max PV array open circuit voltage 105VDC 160VDC 160VDC PV Array MPPT Voltage Range 15~105V 30~128VDC 30~128VDC AC INPUT AC input voltage 230Vac ±5% Acceptable input voltage range 90-280VAC Nominal input frequency 50Hz / 60Hz (Auto detection) Transfer time 10ms typical (UPS, VDE); 20ms typical (APL) AC CHARGE Charging current @ Nominal input voltage 20A (±4A) 40A/(±4A) 60A (±4A) Charging Algorithm 4-step (Li) OUTPUT AC output 230Vac (Socket *3pcs) USB TypeC DC output*1pcs USB-A 12V/1A DC output*2pcs USB-A 5V DC output*4pcs LITHIUM BATTERY Energy 1280Wh 2560Wh 3200Wh Nominal voltage 12.8V 25.6V 25.6V Battery capacity 100Ah 100Ah 125Ah Protection board 100A 100A 150A Standard charging & discharge current 50A 50A 50A Operation temperature Charge 0°C to 45°C Discharge -10°C to 60°C MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) 225*295*363 275*324*403 288*348*490 Package Dimension (W*H*D)(mm) 440*305*355 485*356*420 570*370*445 N.W(kg) 17 24 33 G.W(kg) 18.5 26 36 Standard Warranty Inverter: 2 years ; Lithium battery: 5 years CERTIFICATION & STANDARDS CE-EMC LVD(EN6100-6-3;2007, EN6100-6-1:2017 EN IEC62109-1:2010, EN IEC62109-2:2011)
