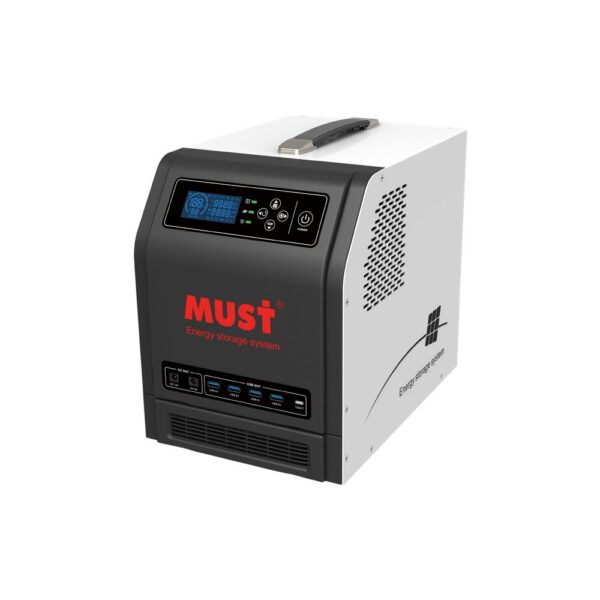

■ Portable and easy carry ■ Multiple Charging Ways Available: AC Charging, Solar Charging ■ HD Screen: the power status is clear at a glance ■ Multiple outputs can supply power for various electrical appliances. ■ Intuitive battery endurance indicate Model HBP15-0612 HBP15-1012 HBP15-1224 Nominal Battery System Voltage 12VDC 24VDC INVERTER OUTPUT Rated Power 600VA / 600W 1000VA / 1000W 1200VA / 1200W Waveform Pure Sine Wave Nominal Output Voltage RMS 230V Output Voltage Regulation 10/-18% Output Frequency 50Hz / 60Hz ±1Hz Inverter Efficiency (Peak) >90% Line Mode Efficiency >95% Typical Transfer Time Typical < 10ms , 20ms max AC INPUT Voltage Nominal 230VAC Voltage Range 176 ~ 278VAC ± 3% Frequency Range 45 ~ 65Hz ± 2Hz Frequency Nominal 50Hz / 60Hz (Auto Detection) SOLAR CHARGER & AC CHARGER Maximum AC Charge Current 20A 15A Maximum PV Charge Current 40A (max) Maximum Charge Current AC PV 40A (max) Maximum PV Array Power 600W 1200W MPPT Operating Voltage Range 15 ~ 75VDC 30 ~ 75VDC Maximum PV Array Open Voltage 105VDC Maximum Efficiency > 95% DC OUTPUT USB Type A 5V 2.1A * 4ch USB Type C 5V 1A * 1ch DC output 9V 1A 12V 1A PROTECTION Battery Input Protection FUSE Load Output Protection FUSE Bypass Fuse Rating 6.3A 10A 10A LITHIUM BATTERY Battery Energy 538Wh/ 640Wh 1280Wh 1076Wh/ 1280Wh Nominal Input Voltage 12.8VDC (4 Series LiFePO4) 25.6VDC (8 Series LiFePO4) Low Battery Cutoff 11.5VDC 23.0VDC Low Battery Alarm 12.0VDC 24.0VDC Low Battery Voltage Recover 12.8VDC 25.6VDC High Battery Voltage Recover 14.5VDC 29.0VDC High Battery Voltage Cutoff 15.0VDC 30.0VDC MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) 225* 304*335 Package Dimension (W*H*D)(mm) 307* 375 *417 N.W(kg) 12 17 17 G.W(kg) 14 19 19 OTHER Operation Temperature Range 0°C ~ 45°C Display LED LCD CERTIFICATION & STANDARDS CE-EMC
