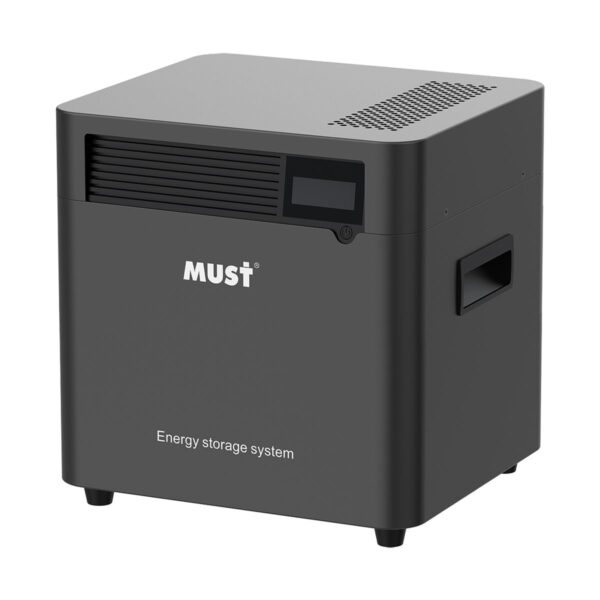

�� Specifications Inverter Options: 12VDC / 24VDC, 1200VA / 2400VA Battery Options: 12.8V / 25.6V – 100Ah Energy Capacity: 1280Wh / 2560Wh Warranty: Inverter: 2 years | Lithium Battery: 5 years ✅ Key Features ■ Portable and space-saving design ■ Integrated modified sine wave inverter ■ Long-life LiFePO₄ battery: 4000 cycles @ 80% DOD, 25°C ■ Selectable charging current: 10A or 20A ■ LCD screen for real-time monitoring: load, voltage, battery level, mode, and faults ■ Multiple safety protections: overcharge, deep discharge, short circuit, and overload ■ Ideal for powering small household and office devices �� Applications Perfect for home backup, office equipment, mobile workstations, and outdoor electronics. MODEL HBP12-1212 HBP12-2424 Nominal Battery System Voltage 12VDC 24VDC INVERTER OUTPUT Rated Power 1200VA/720W 2400VA/1440W Waveform Modified sine wave AC Voltage Regulation (Batt.Mode) 230VAC 10%/-18%; 50/60Hz ±0.5Hz Inverter Efficiency(Peak) AC to AC : >95%; DC to AC : >80% Transfer Time Typical 15-20ms, 40ms max AC INPUT Voltage 220/230/240VAC Selectable Voltage Range 90~280VAC Frequency Range 50/60Hz(Auto Detection) AC CHARGER Maximum AC Charge Current 20A LITHIUM BATTERY Energy 1280Wh 2560Wh Nominal voltage 12.8V 25.6V Battery capacity 100Ah 100Ah Protection board 100A 100A Standard charging & discharge current 100A 100A Cycles life 4000 cycles @ 80% DOD, 25°C Operating temperature Charge 0°C ~ 45°C Discharge -10°C ~ 60°C MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) 316*343*282 436*383*282 Package Dimension (W*H*D)(mm) 399*398*365 519*438*365 N.W(kg) / / G.W(kg) / / OTHER Operation Temperature Range 5% to 95% Relative humidity (Non-condensing) Storage Temperature -10°C ~ 45°C Warranty Inverter: 2 years ; Lithium battery: 5 years CERTIFICATION & STANDARDS CE-EMC
