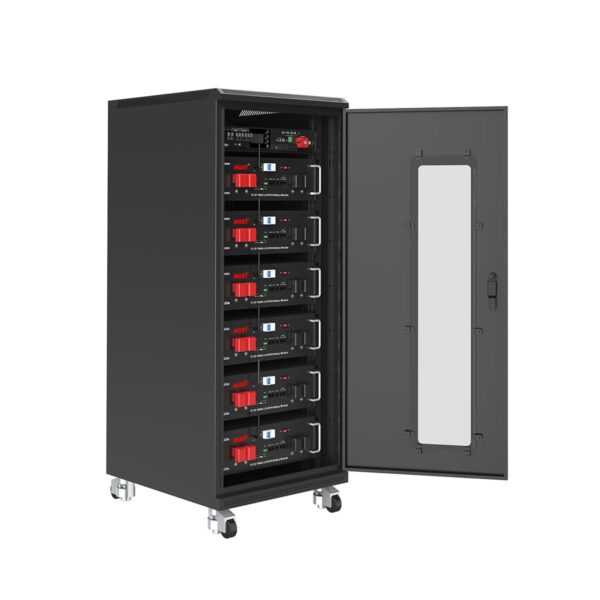

■ Modular, Scalable & Proven Performance ■ Parallelable for up to 6 battery packs ■ Non-Toxic & Non-Hazardous Cobalt-Free LFP Chemistry ■ The ESS is pre-wired and factory tested to enable quick installation ■ BMS has protection functions including over-discharge, over-charge, over-current, and high/low temperature MODEL HBP1800 RT INVERTER Rated power 5200W Output voltage waveform Pure sine wave Output voltage regulation 230VAC ±5% Output frequency 50Hz or 60Hz (±0.2Hz) Peak efficiency 93% Nominal DC input voltage 48Vdc Standby Consumption < 25W PV INPUT Max solar power input 4000W PV max charging current 80A Combined charging current 80A Max efficiency 98% max PV array open circuit voltage 450VDC PV Array MPPT Voltage Range 150~430VDC AC INPUT AC input voltage 230VAC ±5% Acceptable input voltage range 170~280VAC Nominal input frequency 50Hz / 60Hz (Auto detection) Transfer time 10ms typical (UPS, VDE); 20ms typical (APL) AC CHARGE Charging current @ Nominal input voltage 60A Charging Algorithm 4-step (Li) LITHIUM BATTERY Energy 10Kwh 20Kwh 30Kwh Nominal voltage 51.2V Battery capacity 51.2V 100Ah 3U Module×2 51.2V 100Ah 3U Module×4 51.2V 100Ah 3U Module×6 Standard charging and discharge current 100A Maximum continuous charging & discharge current 100A Battery Protection BMS Battery Management System Dynamic Protection Operation ambient temperature 0~45°C Storage ambient temperature -20~55°C DIMENSION Machine Dimension (W*H*D)(mm) Inverter / Battery (single battery) 625.5*479*152 Package Dimension (W*H*D)(mm) Inverter / Battery (single battery)(wooden box) 696*565*335 N.W(kg) Inverter / Battery (single battery) 45 G.W(kg) Inverter / Battery (single battery)(wooden box) 58 Standard Warranty Inverter: 2 years ; Lithium battery: 5 years CERTIFICATION & STANDARDS CE-EM
