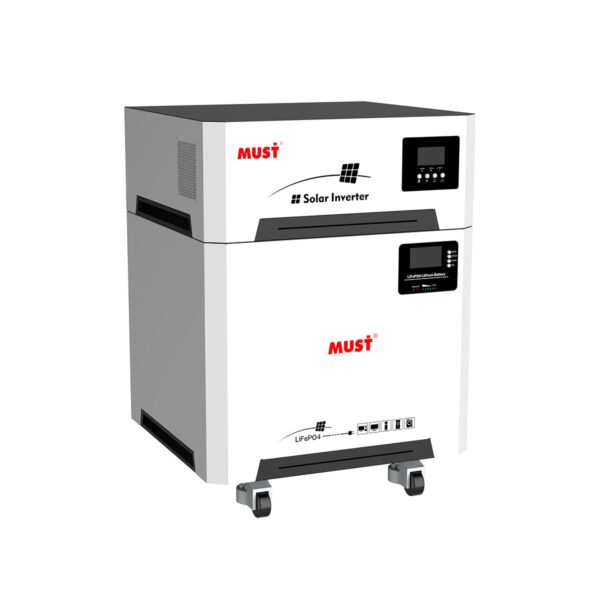

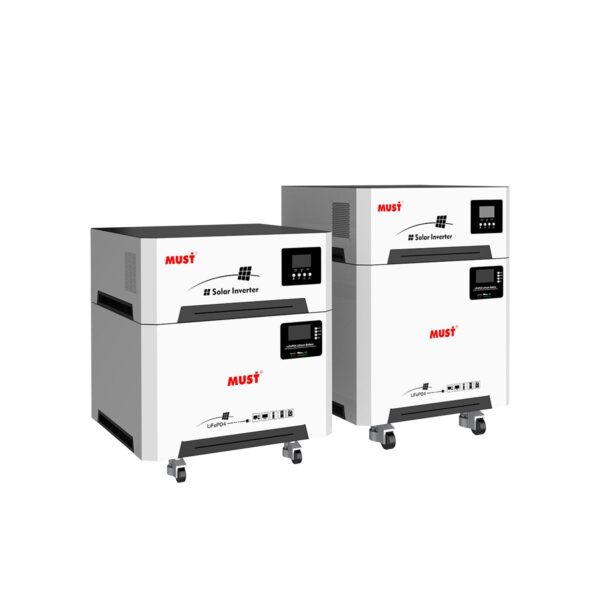

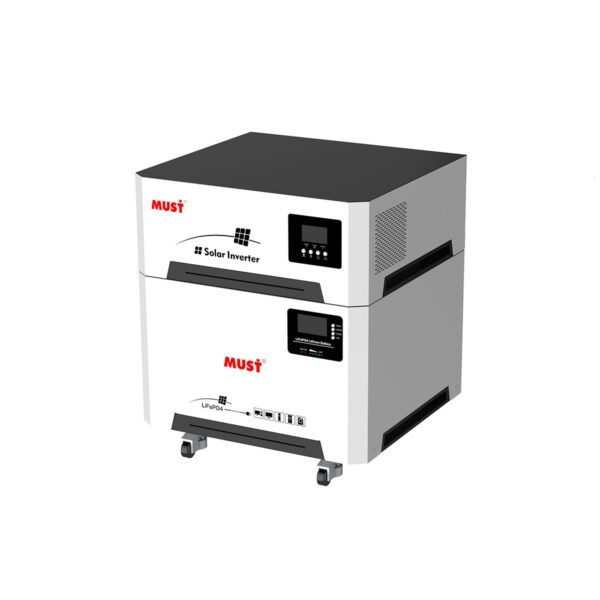

■ Stacked movable energy storage systems ■ Rechargeable lithium batteries use safe lithium cell LiFePO4 ■ The intelligent BMS system adopts the latest battery communication system ■ Reduce electricity bills and increase your energy needs for electrical self-sufficiency. MODEL HBP30-1524 HBP30-2024 HBP30-3024 HBP30-5048 HBP30-6048 INVERTER Rated power 1500W 2000W 3000W 5000W 6000W Output voltage waveform Pure sine wave Output voltage regulation 220V/230V/240V ±10% Output frequency 50Hz or 60Hz (±0.2Hz) Peak efficiency 88% Nominal DC input voltage 24Vdc 48Vdc Standby Consumption < 2W PV INPUT Max solar power input 2500W 5000W PV max charging current 80A Combined charging current 80A Max efficiency 98% max PV array open circuit voltage 245V PV Array MPPT Voltage Range 30~230VDC 60~230VDC AC INPUT AC input voltage 230Vac ±5% Acceptable input voltage range 150~265VAC(For personal computers) Nominal input frequency 50Hz / 60Hz (Auto detection) Transfer time 10ms(max) AC CHARGE Charging current @ Nominal input voltage 25A 30A 40A 35A 40A Charging Algorithm 4-step (Li) OUTPUT AC output Terminal & Socket (10A max) LITHIUM BATTERY Energy 7168wh 14336wh Nominal voltage 25.6V 51.2V Battery capacity 280Ah Standard charging and discharge current 100A Maximum continuous charging & discharge current 100A Operation ambient temperature Charge -10~50°C Discharge -20~55°C DIMENSION Machine Dimension (W*H*D)(mm) (Inverter Battery) 620*865*610 640*992*600 Package Dimension (W*H*D)(mm) Inverter 617*297*587 Battery 620*568*610 640*695*610 N.W(kg) Inverter / / 25.6 / 35.7 Battery / / / 115 G.W(kg) Inverter / / 27.9 / 38 Battery / / / 135 Standard Warranty Inverter: 2 years ; Lithium battery: 5 years Certification & Standards CE-EMC
