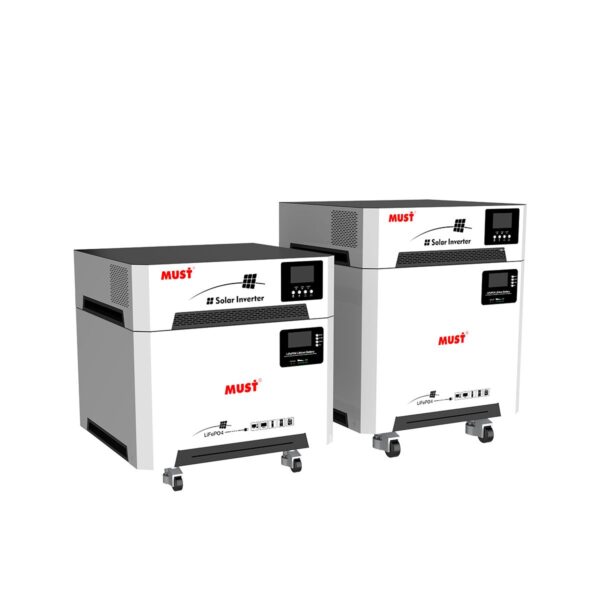

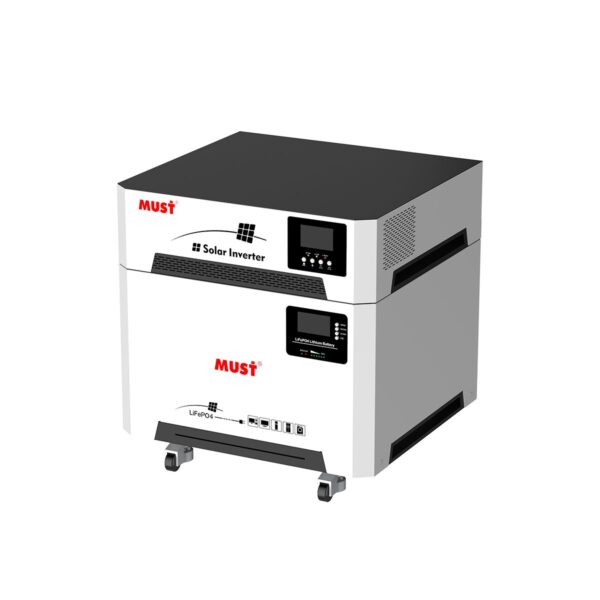

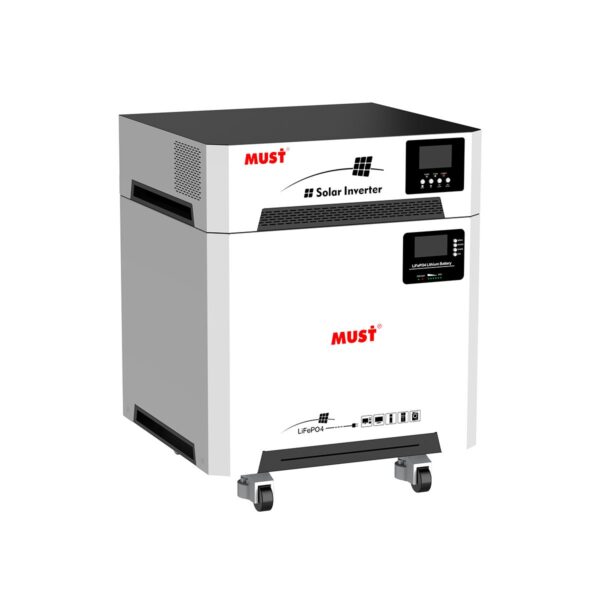

■ Stacked movable energy storage systems ■ Rechargeable lithium batteries use safe lithium cell LiFePO4 ■ The intelligent BMS system adopts the latest battery communication system ■ Reduce electricity bills and increase your energy needs for electrical self-sufficiency. MODEL HBP18-3024 HM HBP18-3524 HM HBP18-5248 HM HBP18-5548 HM INVERTER Rated power 3000W 3500W 5200W 5500W Output voltage waveform Pure sine wave Output voltage regulation 230Vac±5% Output frequency 50Hz or 60Hz (±0.2Hz) Peak efficiency 90% 93% Nominal DC input voltage 24Vdc 24Vdc 48Vdc 48Vdc Standby Consumption <25W PV INPUT Max solar power input 4000W 5000W 6000W PV max charging current 60A 60A 80A 100A 120A Combined charging current 80A 80A 100A 140A 140A Max efficiency 98.0% max PV array open circuit voltage 450Vdc PV Array MPPT Voltage Range 150~430Vdc AC INPUT AC input voltage 230Vac ±5% Acceptable input voltage range 170-280VAC Nominal input frequency 50Hz / 60Hz (Auto detection) Transfer time 10ms typical (UPS, VDE); 20ms typical (APL) AC CHARGE Maximum AC charge current 80A 80A 80A 100A Charging Algorithm 4-step (Li) OUTPUT AC output 230Vac (Terminal) LITHIUM BATTERY Energy 7168Wh 14336Wh Nominal voltage 25.6V 51.2V Battery capacity 280Ah Standard charging and discharge current 30-100A Maximum continuous charging & discharge current 100A 100A 100A 120A Operation ambient temperature -10~50°C Storage ambient temperature -20~55°C DIMENSION Machine Dimension (W*H*D)(mm) (Inverter Battery) 540*715*498 Package Dimension (W*H*D)(mm) Inverter 627*252*585 Battery 620*695*600 N.W(kg) Inverter 15 17 Battery / 115 G.W(kg) Inverter 26 28 Battery / 135 Standard Warranty Inverter: 2 years ; Lithium battery: 5 years CERTIFICATION & STANDARDS CE-EMC
