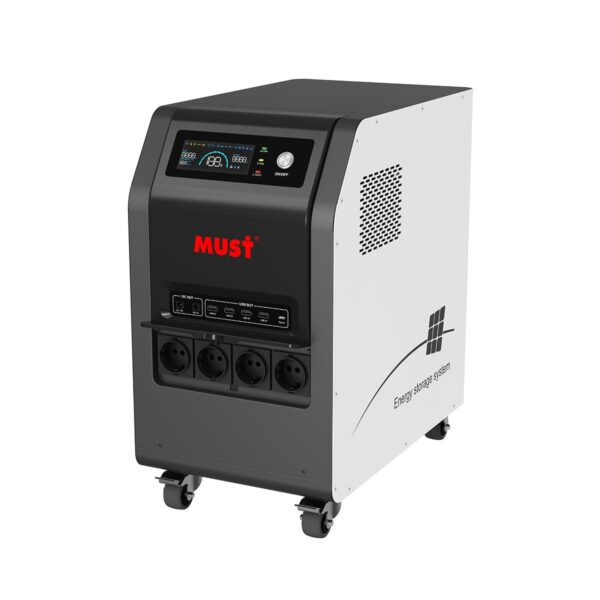

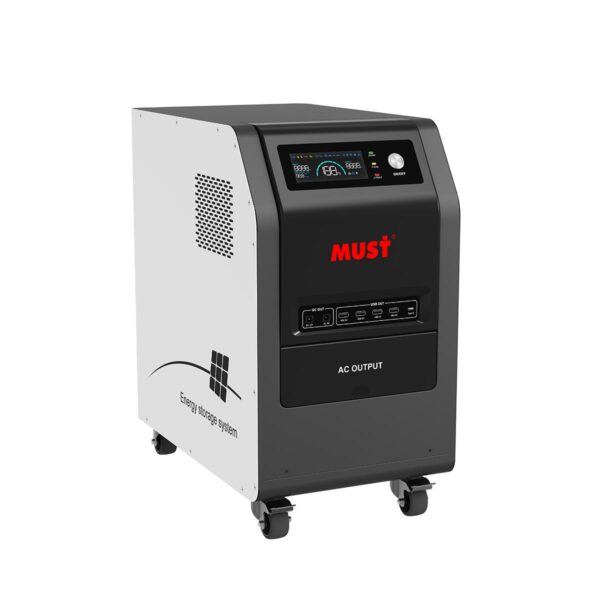

�� Specifications • Inverter power: 3000W / 5200W (Pure Sine Wave) • DC voltage: 24V / 48V • Battery capacity: 2560Wh / 3200Wh / 5120Wh (LiFePO₄) • MPPT controller: 60A / 100A • PV input voltage: 150V / 450V • Cycle life: 6000 cycles @ 80% DOD, 25°C ✅ Key Features ■ Built-in high-efficiency MPPT controller ■ Pure sine wave output – suitable for sensitive electronics ■ Long-life lithium battery with 6000 cycles ■ Flexible UPS mode for uninterrupted power supply ■ Portable design for off-grid or mobile use ■ Supports multiple devices simultaneously with up to 11 output ports ■ Solar/AC/generator charging options ■ App remote control and real-time monitoring ⚡ Application Scenarios Whether you’re hosting an outdoor event, working remotely in a cabin, going off-grid with your RV, or preparing for power outages, the HBP1800 MT gives you the energy independence and flexibility to power through it all. MODEL HBP18-3024MT HBP18-5248MT INVERTER Rated power 3000W 5200W Output voltage waveform Pure sine wave Output voltage regulation 230Vac ±5% Output frequency 50Hz / 60Hz (±0.2Hz) Peak efficiency 90% 93% Nominal DC input voltage 24VDC 48VDC Standby Consumption < 25W PV INPUT Max solar power input 1800W 5000W PV max charging current 60A 100A Combined charging current 120A 1000A Max efficiency 98.0% max PV array open circuit voltage 160VDC 450VDC PV Array MPPT Voltage Range 30~128VDC 150~430VDC AC INPUT AC input voltage 230Vac ±5% Acceptable input voltage range 90~280VAC 170~280VAC Nominal input frequency 50Hz / 60Hz (Auto detection) Transfer time 10ms typical (UPS, VDE); 20ms typical (APL) AC CHARGE Charging current @ Nominal input voltage 60A 80A Charging Algorithm 4-step (Li) OUTPUT AC output 230Vac (Socket *4pcs) Type-C DC output*1pcs USB (5V 2.4A) DC output*4pcs USB (12V 1A) DC output*2pcs LITHIUM BATTERY Energy 2560Wh 3200Wh 5120Wh Nominal voltage 25.6V 25.6V 51.2V Battery capacity 100Ah 125Ah 100Ah Protection board 100A 150A 100A Standard charging & discharge current 50A 50A 100A Operation temperature Charge 10~45 °C Discharge -20~55 °C MECHANICAL SPECIFICATIONS Machine Dimension (W*H*D)(mm) 277*509*452 302*628*493 Package Dimension (W*H*D)(mm) 380*665*555 406*810*600 N.W(kg) 33 37 56 G.W(kg) 39 43 65 Standard Warranty Inverter: 2 years ; Lithium battery: 5 years CERTIFICATION & STANDARDS *coming soon
